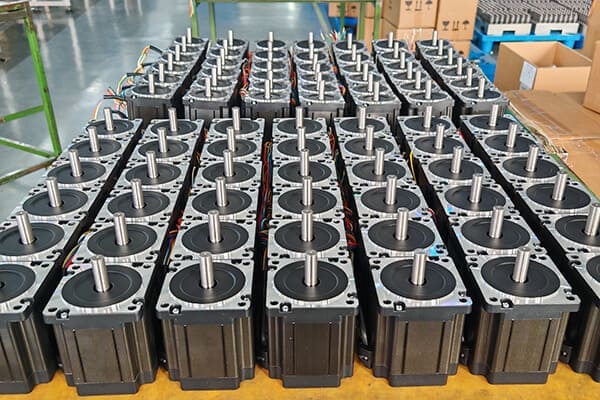

Brushless DC (BLDC) motors are widely recognized for their efficiency, precision, and reliability across industrial, automotive, and consumer applications. Unlike brushed motors, BLDC motors eliminate the physical brush mechanism, significantly reducing wear and increasing lifespan. However, this brushless configuration requires accurate rotor position sensing to maintain correct commutation, ensuring the motor operates smoothly and efficiently. This is where the Hall Effect sensor plays a pivotal role.
A Hall Effect sensor is a magnetic field sensor that detects the position of the rotor. By converting magnetic flux changes into electrical signals, it allows the motor controller to determine the exact rotor position, enabling precise commutation timing and improving overall motor performance.
The Hall Effect is a fundamental physical phenomenon used extensively in electronic sensing and motor control systems. First discovered by Edwin Hall in 1879, it occurs when a magnetic field is applied perpendicular to the direction of electric current in a conductor or semiconductor. This interaction produces a voltage difference, known as the Hall voltage, across the material, perpendicular to both the current and the magnetic field.
When an electric current flows through a conductor, the moving charge carriers—typically electrons—experience a Lorentz force if a magnetic field is present. This force pushes the electrons to one side of the conductor, creating a potential difference across the width of the conductor. The magnitude of this voltage is directly proportional to the:
Strength of the magnetic field
Amount of current flowing through the conductor
Type and density of charge carriers
Mathematically, the Hall voltage VHV_HVH can be expressed as:
I = current through the conductor
B = magnetic flux density
n = charge carrier density
q = charge of an electron
t = thickness of the conductor
This voltage can be measured and used to determine the presence and strength of a magnetic field, making it ideal for position sensing in motors.
The Hall Effect principle is a crucial concept in modern electronics and motor control, enabling precise detection of magnetic fields and rotor positions. By generating a measurable voltage in response to a magnetic field, it forms the foundation for Hall Effect sensors used in BLDC motors, robotics, automotive applications, and industrial automation. This principle ensures accuracy, efficiency, and reliability in systems where rotor position sensing is critical.
The placement and configuration of Hall Effect sensors in Brushless DC (BLDC) motors are critical for achieving precise rotor position detection, efficient commutation, and smooth motor operation. Correct sensor arrangement directly impacts torque performance, speed control, and reliability of the motor.
BLDC motors typically employ three Hall Effect sensors, positioned 120 electrical degrees apart around the stator. This configuration ensures that the rotor's position is continuously monitored throughout a full rotation.
Stator Mounting: Sensors are mounted on the stator core, close to the air gap where the rotor magnets pass.
Proximity to Rotor Magnets: The distance between the sensors and the rotor must be optimized to detect the magnetic flux change effectively, without mechanical interference.
Orientation: Sensors must be aligned so that the magnetic poles of the rotor trigger a clear digital high or low signal as the rotor rotates.
Proper placement ensures accurate signal timing, which is essential for smooth commutation and torque delivery.
A three-sensor configuration is the most common in BLDC motors and is often referred to as the 120° Hall sensor arrangement. Each sensor provides a binary signal—either high or low—depending on whether it detects a north or south magnetic pole.
Signal Phases: The combination of three sensors produces six unique states for a single electrical cycle, which guides the motor controller in six-step commutation.
Commutation Accuracy: The sequence of high and low signals ensures the controller energizes the correct stator windings, maintaining continuous rotation and torque output.
Some specialized BLDC motors may use:
Single or dual Hall sensors for simpler or low-cost applications, though this may reduce low-speed precision.
High-resolution sensor arrays in advanced motors for fine rotor position detection, enabling smooth Field-Oriented Control (FOC).
Hall sensors are typically powered by the motor controller and output digital signals directly to the Electronic Speed Controller (ESC).
Common Wiring: Each sensor has three wires: power (Vcc), ground (GND), and output signal.
Signal Processing: The ESC reads the sensor states to determine the rotor position and generates the appropriate three-phase voltage waveform for commutation.
Noise Mitigation: Proper wiring and shielding prevent electromagnetic interference, which could cause erratic motor operation.
The precise placement of Hall sensors affects:
Low-Speed Operation – Accurate position detection prevents stalling and cogging at low RPMs.
Torque Ripple Reduction – Optimized alignment ensures smoother torque output and minimal vibration.
Efficiency – Correct commutation reduces power loss and heat generation, improving overall efficiency.
Bidirectional Control – Proper configuration allows the motor to run smoothly in both directions without timing errors.
Incorrect placement can result in timing mismatches, reduced torque, and unstable motor operation, especially in high-precision applications like robotics or electric vehicles.
The placement and configuration of Hall Effect sensors in BLDC motors are critical for accurate rotor position sensing, efficient commutation, and optimal motor performance. A well-engineered sensor arrangement ensures smooth low-speed operation, consistent torque, and reliable high-speed performance. Proper integration with the motor controller and attention to wiring, alignment, and shielding are essential to maximize the capabilities of Hall sensor-equipped BLDC motors.
In Brushless DC (BLDC) motors, signal processing and motor commutation are the critical processes that convert Hall Effect sensor data into precisely timed electrical pulses. These processes ensure the rotor spins smoothly, efficiently, and with consistent torque across all speeds. Understanding how this works is essential for optimizing performance, reliability, and efficiency in BLDC motor systems.
Hall Effect sensors generate digital signals as the rotor magnets pass nearby. Each sensor produces a binary output:
High (1): When the sensor detects a north magnetic pole.
Low (0): When the sensor detects a south magnetic pole.
With a standard three-sensor configuration, the combination of high and low states produces six unique signal patterns per electrical rotation. These patterns form the rotor position map that the motor controller uses to determine which stator windings to energize.
The motor controller continuously reads the Hall sensor signals to determine the exact rotor position. This process involves several key steps:
Signal Debouncing – Filters out transient fluctuations or noise to prevent false triggering.
State Recognition – Identifies which of the six rotor positions is currently active based on the three sensor outputs.
Timing Calculation – Determines the precise moment to switch the current between stator windings, ensuring synchronized rotation.
Pulse Generation – Converts the rotor position data into three-phase electrical pulses that energize the motor coils in sequence.
Accurate signal processing is crucial for maintaining high efficiency, minimal torque ripple, and stable low-speed performance.
Commutation refers to the process of switching current through the BLDC motor windings to maintain rotor movement. Unlike brushed motors, BLDC motors rely on electronic commutation controlled by Hall sensor feedback.
The most common method is six-step trapezoidal commutation:
The Hall sensors detect the rotor's magnetic field polarity.
The motor controller energizes two of the three windings based on the sensor signals.
As the rotor moves, the sensor outputs change, prompting the controller to switch to the next winding pair.
This cycle repeats continuously, producing smooth rotor rotation.
Advanced BLDC motors use Field-Oriented Control, which relies on Hall sensor feedback for precise rotor position mapping. FOC allows:
Sinusoidal current control for smoother motion.
Reduced torque ripple, especially at low speeds.
Improved efficiency under varying load conditions.
FOC is particularly important in high-performance applications, including robotics, drones, and electric vehicles.
Accurate timing of commutation is essential for:
Maintaining torque consistency – Incorrect timing can cause cogging or vibration.
Preventing overcurrent – Energizing the wrong winding at the wrong time can draw excessive current, overheating the motor.
Optimizing efficiency – Properly timed commutation reduces energy loss and heat generation.
Smooth bidirectional operation – Hall sensor signals allow seamless forward and reverse motion.
Even minor timing errors can lead to reduced performance and premature wear in BLDC motors.
The Electronic Speed Controller (ESC) plays a central role in integrating Hall sensor data with motor commutation:
Reads three Hall sensor inputs simultaneously.
Determines the appropriate phase sequence for energizing stator coils.
Modulates PWM (Pulse Width Modulation) signals to control motor speed and torque.
Implements protection features, such as overcurrent shutdown and stall prevention, based on rotor position feedback.
This integration allows BLDC motors to operate efficiently under various loads and speeds, ensuring both reliability and high performance.
Signal processing and motor commutation in BLDC motors are the heart of efficient brushless motor operation. By translating Hall Effect sensor data into precisely timed electrical pulses, the motor controller maintains smooth rotation, consistent torque, and high efficiency. Whether using six-step commutation for standard applications or Field-Oriented Control for high-precision tasks, accurate signal processing ensures BLDC motors deliver optimal performance across all operating conditions.
Hall Effect sensors are a critical component in Brushless DC (BLDC) motors, providing accurate rotor position feedback and enabling precise electronic commutation. Their integration enhances performance, reliability, and efficiency, making them indispensable in modern motor applications. Here, we explore the primary advantages of using Hall Effect sensors in BLDC motors.
One of the most significant benefits of Hall Effect sensors is their ability to detect rotor position accurately. By monitoring the magnetic field of the rotor's permanent magnets, Hall sensors provide real-time digital signals that the motor controller uses to determine:
Which stator windings to energize
The exact timing for commutation
Rotor orientation for bidirectional control
This precise detection ensures smooth rotation, minimal torque ripple, and optimal motor efficiency, even under varying loads or at low speeds.
BLDC motors without Hall sensors often struggle with low-speed operation, as sensorless systems rely on back EMF (Electromotive Force), which is negligible at low RPMs. Hall Effect sensors overcome this limitation by providing continuous position feedback, enabling:
Stable operation at very low speeds
Smooth start-up without cogging
Accurate torque delivery for sensitive applications
This makes Hall sensors particularly valuable in robotics, CNC machines, and other precision-driven equipment.
By providing accurate rotor position information, Hall Effect sensors allow the motor controller to commutate precisely, minimizing energy loss. The benefits include:
Reduced power consumption
Lower heat generation in motor windings
Maximized torque output for a given current
Prolonged motor lifespan due to efficient operation
Overall, the sensors contribute directly to higher operational efficiency and cost-effective energy usage.
Hall sensors enable reversible motor operation without performance degradation. By accurately tracking rotor position, the controller can:
Reverse motor direction seamlessly
Maintain consistent torque in both forward and backward motion
Support complex motion sequences required in robotics or automated machinery
This bidirectional capability enhances the versatility of BLDC motors in dynamic systems.
Incorporating Hall Effect sensors also improves motor safety and reliability. Sensor feedback allows the controller to detect abnormal rotor positions or stalled conditions, enabling:
Automatic shutdown to prevent motor damage
Overcurrent protection based on rotor load
Early detection of misalignment or mechanical wear
These features reduce maintenance costs and prevent catastrophic failures, making Hall sensor-equipped BLDC motors suitable for critical applications like electric vehicles and medical devices.
Hall Effect sensors are essential for implementing advanced motor control strategies, such as:
Field-Oriented Control (FOC) – Allows smooth sinusoidal current control, reducing torque ripple.
Closed-Loop Speed Control – Maintains precise motor speed under variable load conditions.
Predictive Maintenance – Real-time rotor feedback enables proactive detection of potential issues.
By supporting these techniques, Hall sensors enhance the performance, precision, and reliability of BLDC motors beyond the capabilities of sensorless designs.
Hall Effect sensors are contactless and solid-state, which provides several practical advantages:
No mechanical wear or friction
High resistance to dust, moisture, and vibration
Reliable operation in harsh industrial environments
Minimal maintenance requirements
This durability ensures long-lasting performance and makes them ideal for industrial and automotive applications.
The integration of Hall Effect sensors in BLDC motors delivers a wide range of benefits, including accurate rotor position detection, improved low-speed performance, enhanced efficiency, bidirectional control, safety features, and compatibility with advanced motor control techniques. Their robust, contactless design ensures reliable and long-lasting operation, making them indispensable in high-performance, precision-driven, and industrial BLDC motor applications.
While Hall Effect sensors significantly enhance the performance of Brushless DC (BLDC) motors, their integration comes with certain challenges and technical considerations. Understanding these factors is crucial to ensure reliable, efficient, and safe motor operation across all applications.
Hall Effect sensors rely on detecting the magnetic field of the rotor's permanent magnets. External magnetic sources or nearby electrical devices can introduce interference, leading to:
Erratic sensor signals
Incorrect commutation timing
Torque ripple or motor instability
Using magnetic shielding around the sensors
Optimizing sensor placement away from interference sources
Employing digital filtering in the motor controller to ignore transient disturbances
Proper attention to magnetic interference is critical, particularly in industrial environments with high electromagnetic noise.
Hall sensors can be affected by extreme temperatures, which may alter their output voltage or trigger point. High heat can result in:
Misreading of rotor position
Reduced commutation accuracy
Potential motor efficiency loss
High-quality Hall sensors often include temperature compensation features to maintain consistent performance across a wide operating range, from freezing conditions to high-temperature industrial environments.
The physical placement and alignment of Hall sensors relative to the rotor magnets are essential for accurate operation. Misalignment can cause:
Incorrect or delayed signal output
Erratic motor behavior, including vibration or cogging
Reduced torque and efficiency
Designers must carefully calibrate the air gap between the rotor and the sensor and ensure precise angular positioning to achieve optimal performance.
Incorporating Hall sensors adds hardware and wiring complexity to a BLDC motor system:
Each sensor requires power, ground, and signal wiring
The controller must interpret multiple signals simultaneously
Additional PCB space may be necessary for sensor integration
This complexity can increase the cost, design effort, and potential points of failure. However, the performance benefits usually outweigh these challenges, particularly in high-precision applications.
Electrical noise from motor windings, power electronics, or nearby devices can distort Hall sensor outputs, leading to incorrect rotor position readings. Consequences include:
Unstable low-speed operation
Reduced torque smoothness
Increased energy consumption
Shielded sensor cables
Signal conditioning circuits
Digital debouncing and filtering algorithms in the ESC
Ensuring clean and stable sensor signals is vital for maintaining high motor reliability.
Adding Hall Effect sensors increases the overall cost of BLDC motor systems due to:
Additional sensor components
Wiring harnesses and connectors
Advanced motor controllers capable of interpreting Hall signals
While sensorless BLDC designs reduce cost, Hall-equipped systems provide greater precision, reliability, and low-speed performance, making the investment worthwhile in most professional and industrial applications.
At very high rotational speeds, Hall sensor signals may lag slightly due to propagation delay, which can affect commutation timing. Although modern ESCs compensate for this using predictive algorithms, designers must account for potential timing shifts in high-speed motor applications.
While Hall Effect sensors provide critical benefits to BLDC motors, their use requires careful consideration of magnetic interference, temperature effects, mechanical alignment, wiring complexity, signal noise, cost, and high-speed limitations. By addressing these challenges through design optimization, shielding, filtering, and precision alignment, engineers can fully leverage Hall sensors to achieve smooth, efficient, and reliable motor performance in demanding applications.
Brushless DC (BLDC) motors have become a cornerstone in modern automation, robotics, and electric vehicles due to their high efficiency, precise control, and long lifespan. Within this domain, the choice between Hall effect sensor-equipped BLDC motors and sensorless BLDC motors is pivotal, impacting performance, reliability, and cost. In this article, we provide a detailed examination of these two approaches, highlighting operational mechanisms, advantages, limitations, and application-specific considerations.
| Feature | Hall Effect Sensor BLDC | Sensorless BLDC |
|---|---|---|
| Rotor Position Feedback | Direct, accurate | Estimated via BEMF |
| Low-Speed Performance | Excellent | Limited |
| Startup Under Load | Reliable | Requires special algorithms |
| Cost | Higher | Lower |
| Maintenance | Moderate | Low |
| Precision Applications | Ideal | Less suitable |
| High-Speed Operation | Efficient | Highly efficient |
Modern BLDC motor controllers leverage Hall sensor data to implement advanced control strategies, including:
Field-Oriented Control (FOC) – Achieves smoother torque and higher efficiency by controlling the rotor's magnetic flux vector.
Closed-Loop Speed Control – Maintains precise motor speed under varying load conditions.
Torque Limiting – Prevents motor damage by monitoring rotor position and current draw.
Diagnostics and Predictive Maintenance – Hall sensors can help detect wear or misalignment before catastrophic failures.
These features demonstrate how Hall sensors are integral to high-performance motor control.
The future of Hall Effect sensor integration in BLDC motors is promising:
Miniaturization – Smaller sensors allow more compact motor designs without sacrificing performance.
Enhanced Accuracy – New sensor technologies provide finer position resolution, enabling smoother motion and lower torque ripple.
Wireless Integration – Advanced designs may incorporate wireless Hall sensing to reduce wiring complexity in complex systems.
AI-Assisted Control – Combining Hall sensor data with machine learning algorithms can optimize motor efficiency and predictive maintenance strategies.
These advancements will further solidify Hall Effect sensors as a cornerstone of BLDC motor technology.
Hall Effect sensors are fundamental components in BLDC motors, enabling precise rotor position detection, optimized commutation, and superior performance. By converting magnetic fields into electrical signals, these sensors ensure smooth, efficient, and reliable motor operation, especially at low speeds and under varying loads.
Understanding their principle, placement, signal processing, and integration with modern controllers is essential for engineers and designers aiming to achieve maximum motor efficiency and longevity. As BLDC motor applications expand across automotive, robotics, and industrial sectors, Hall Effect sensors will continue to play a vital role in advancing performance and reliability.
