Servo motors are essential components in modern automation, robotics, CNC machines, and industrial applications. Understanding whether a servo motor requires a capacitor is critical for optimizing performance, ensuring stability, and prolonging the lifespan of the motor system. In this detailed guide, we explore the technical requirements, operational behavior, and practical considerations surrounding capacitors in servo motor setups.
Servo motors are fundamental components in modern automation, robotics, CNC machinery, and precision engineering. They are designed to provide precise control over angular or linear position, velocity, and acceleration, making them indispensable in applications requiring high accuracy and repeatability. Understanding the basics of servo motors is essential for selecting, integrating, and maintaining them effectively.
A servo motor is a rotary or linear actuator that allows controlled motion. Unlike regular electric motors, which simply rotate continuously when powered, servo motors are designed to reach and maintain a specific position or speed as commanded by a control system. This precision makes them ideal for applications such as robotic arms, conveyor systems, CNC machines, and automated manufacturing lines.
A typical servo motor system consists of three main components:
Motor – The primary source of motion, which can be DC, AC, or brushless DC.
Control Circuit – Receives input signals (analog or digital) and adjusts motor behavior accordingly.
Feedback Device – Usually an encoder or potentiometer that monitors the motor's position, speed, and direction, allowing for closed-loop control.
Servo motors operate on the principle of feedback control. The process involves:
Receiving a control signal specifying a desired position or speed.
The motor moves accordingly, while the feedback device continuously monitors the actual position.
The control system compares the actual position with the desired position and adjusts the motor's operation to minimize any error.
This closed-loop mechanism allows servo motors to maintain high precision, even under varying loads or external disturbances.
Servo motors can be classified based on their motor type:
Simple design with good torque at low speeds.
Controlled via pulse-width modulation (PWM) or voltage input.
Commonly used in small robotics, camera systems, and toys.
Typically used in industrial applications requiring higher torque and speed.
Operate with AC power and are often paired with an inverter or servo drive.
Highly efficient with low maintenance due to the absence of brushes.
Ideal for applications needing long-term reliability and high performance, such as CNC machines and drones.

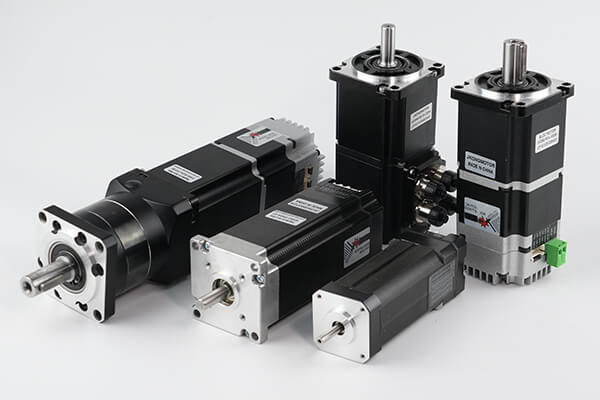

A servo motor is a rotary actuator or linear actuator that allows precise control of angular or linear position, velocity, and acceleration. It typically consists of:
A DC or AC motor (commonly brushless DC for industrial use)
A position feedback sensor (usually an encoder or potentiometer)
A control circuit that receives command signals and adjusts motor movement accordingly
The combination of motor, feedback, and control electronics enables servo motors to achieve precise, repeatable, and stable motion.
Capacitors play a crucial role in the operation, efficiency, and longevity of electric motors. Whether in AC or DC systems, capacitors help manage electrical characteristics, stabilize performance, and protect both the motor and associated electronics. Understanding their function is essential for engineers, technicians, and anyone working with motor-driven systems.
A capacitor is an electrical component that stores and releases energy in the form of an electric field. Its primary characteristics include:
Capacitance (µF): The amount of electric charge a capacitor can store.
Voltage Rating (V): Maximum voltage the capacitor can safely handle.
Type: Electrolytic, ceramic, or film capacitors are common in motor applications.
Capacitors are widely used in motor circuits to improve performance, reduce electrical noise, and manage power fluctuations.
In single-phase AC motors, capacitors are often used to provide a phase shift between current and voltage. This creates an initial rotating magnetic field, giving the motor sufficient torque to start smoothly. There are two common types:
Start Capacitors: Provide high capacitance for brief periods to help start the motor.
Run Capacitors: Provide lower capacitance continuously to improve running efficiency and maintain torque.
Without capacitors, single-phase motors may struggle to start or operate inefficiently.
Electric motors experience voltage fluctuations due to load changes or power supply variations. Capacitors act as energy reservoirs, smoothing out voltage spikes and dips. Benefits include:
Protecting sensitive motor windings and electronics
Reducing the risk of overheating
Maintaining stable motor speed and torque under varying loads
Capacitors are widely used to filter high-frequency electrical noise generated by motor operation, particularly in:
Servo motors
Variable frequency drive (VFD) systems
By connecting capacitors across motor terminals or between the motor and ground, they reduce voltage transients and prevent EMI from affecting nearby electronic devices.
In AC motor systems, especially inductive loads, the power factor can drop, causing inefficient energy usage and higher electricity costs. Capacitors help:
Offset the lagging current caused by inductance
Improve the overall power factor
Reduce energy loss and operating costs
This is particularly important in large industrial motor installations where efficiency and energy management are critical.
During rapid deceleration or load changes, motors generate back electromotive force (back-EMF), which can damage controllers and electronics. Capacitors absorb and dampen these voltage spikes, protecting both the motor and the control circuitry.
Selecting the appropriate capacitor depends on the motor type and application:
Electrolytic Capacitors: High capacitance for voltage smoothing and back-EMF absorption; common in DC motors.
Ceramic Capacitors: Low equivalent series resistance (ESR) for high-frequency filtering; ideal for noise suppression.
Film Capacitors: Stable over time and temperature; often used in AC motor start/run applications and industrial drives.
Proper placement is essential for maximum effectiveness:
Across Motor Terminals: Filters noise and reduces voltage spikes directly at the source.
Near the Drive Input: Protects the motor drive electronics from supply fluctuations.
Integrated in Motor Controllers: Modern servo and BLDC drives often have built-in capacitors, minimizing the need for external components.
Even in modern motor systems, capacitors can improve performance in certain conditions:
Excessive electrical noise affecting nearby devices
Voltage spikes on long cable runs
Unstable motor speed or torque under varying loads
Frequent controller faults or error codes
Adding the correct capacitor in these scenarios can enhance stability, reduce noise, and protect the motor system.
Capacitors are vital components in electric motor systems, providing essential functions such as:
Starting torque enhancement
Voltage stabilization
Noise and EMI suppression
Power factor correction
Back-EMF protection
By carefully selecting the appropriate type, rating, and placement, engineers can optimize motor performance, efficiency, and longevity, ensuring reliable operation across a wide range of applications.
Most modern DC servo motors, especially those integrated with electronic speed controllers (ESCs), do not require external capacitors for normal operation. Key points include:
Internal Filtering: The motor controller often includes built-in capacitors to suppress voltage spikes and electrical noise.
Brushless DC (BLDC) Servos: These use ESCs with sophisticated circuitry that already manages current surges and back-EMF without the need for external capacitors.
When Capacitors May Be Added: In high-voltage or high-speed applications, engineers sometimes add external electrolytic or ceramic capacitors across the motor terminals to reduce voltage ripple and prevent interference with sensitive electronics.
AC servo motors are generally powered by inverters or servo drives that provide controlled AC voltage and frequency. Capacitors may be used in specific scenarios:
Power Factor Correction: For large industrial AC servo systems, capacitors can optimize power usage and reduce energy costs.
Filtering Harmonics: Inverters can generate high-frequency noise; capacitors can help smooth voltage and reduce EMI.
Drive-Specific Requirements: Most modern AC servo drives are designed to handle voltage fluctuations internally, making external capacitors optional rather than mandatory.
Even if most servo motors operate fine without external capacitors, certain conditions may warrant their use:
When servo motors operate near sensitive electronic equipment, added capacitors can suppress high-frequency noise and prevent signal disruption.
Servo motors connected via long cables can experience voltage spikes due to inductance. Installing snubber capacitors at the motor terminals can protect both the motor and drive electronics.
During rapid deceleration, motors generate back-EMF, which can damage controllers. Capacitors can help absorb and dissipate excess voltage safely.
Older servo motor systems or simple DC servos may not have integrated electronic protection. In such cases, capacitors are added externally to improve stability and performance.
Capacitors are critical components in servo motor systems when it comes to smoothing voltage, suppressing electrical noise, and protecting electronics from back-EMF. Choosing the right type of capacitor ensures optimal performance, reliability, and longevity of the servo motor. In this guide, we detail the types of capacitors suitable for servo motor applications and their specific roles.
Electrolytic capacitors are commonly used in servo motor systems for their high capacitance values, which allow them to store and release significant amounts of energy. They are particularly useful for:
Smoothing DC Voltage: Reducing voltage ripple in the motor controller or power supply.
Absorbing Back-EMF: Protecting the servo drive electronics from sudden voltage spikes during rapid deceleration.
Energy Storage: Supplying short bursts of power during high-torque demands.
Key Characteristics:
Capacitance range: Typically 1 µF to several thousand µF
Voltage rating: Should exceed the motor's operating voltage by 20–30%
Polarized design: Requires correct connection to avoid damage
Best Use Cases: DC servo motors, high-power BLDC motors, applications with rapid acceleration/deceleration cycles.
Ceramic capacitors are widely used for high-frequency noise suppression in servo motor circuits. They have low equivalent series resistance (ESR) and excellent high-frequency response, making them ideal for filtering out electromagnetic interference (EMI) and voltage transients.
Capacitance range: Typically 1 pF to 10 µF
High-frequency filtering capabilities
Non-polarized, allowing flexible placement across motor terminals or between power and ground
Best Use Cases: Servo motors in noise-sensitive environments, precision control systems, or high-speed BLDC motors where EMI can affect feedback signals.
Film capacitors are durable, stable, and reliable, with low loss and long operational life. They are particularly well-suited for AC servo motors or applications requiring continuous high-frequency filtering.
Excellent temperature stability and low leakage current
Capacitance range: Typically 0.01 µF to several µF
Non-polarized design
High voltage tolerance and long-term reliability
Best Use Cases: AC servo motors, industrial servo drives, applications with continuous high-frequency voltage fluctuations.
Tantalum capacitors are known for stable capacitance in compact form factors, offering precise filtering and energy storage in limited spaces. They are more expensive than electrolytic or ceramic capacitors but provide excellent reliability.
Capacitance range: 0.1 µF to several hundred µF
Stable performance under temperature variations
Polarized; careful orientation is required
Best Use Cases: Compact servo systems, electronics with limited board space, high-reliability industrial automation.
Proper placement is essential to maximize effectiveness:
Across Motor Terminals: Directly filters voltage spikes and high-frequency noise generated by the motor.
Near the Servo Drive Input: Stabilizes incoming voltage and protects controller electronics.
Integrated in Controllers: Many modern servo drives already include necessary capacitors, minimizing the need for external additions.
When selecting a capacitor for a servo motor:
Voltage Rating: Always exceed the motor's operating voltage.
Capacitance Value: Must balance filtering needs without causing excessive inrush current.
Temperature Tolerance: Capacitors must handle the operating environment of the motor.
Application Requirements: High-frequency noise suppression vs. energy storage vs. back-EMF protection.
Using the appropriate type and size ensures stable, precise, and reliable operation, protecting both the motor and its control electronics.
Servo motors benefit from capacitors that stabilize voltage, suppress noise, and protect electronics. The main types suitable for servo motor applications include:
Electrolytic Capacitors – For smoothing voltage and back-EMF absorption
Ceramic Capacitors – For high-frequency noise filtering and EMI suppression
Film Capacitors – For long-term stability and AC motor applications
Tantalum Capacitors – For compact, precise energy storage
Selecting the correct capacitor type, rating, and placement ensures optimal performance, longevity, and reliability of servo motor systems in a wide range of applications.
When integrating capacitors with servo motors, engineers follow precise guidelines:
Voltage Rating: Choose a capacitor rated at least 20–30% higher than the motor's operating voltage to prevent breakdown.
Capacitance Value: Selecting the correct microfarad (µF) rating is critical. Too low and it won't filter effectively; too high and it can cause inrush current issues.
Temperature Tolerance: Motors generate heat; capacitors must withstand operational temperatures without degradation.
Proximity: Capacitors should be mounted close to the motor or controller to minimize inductive losses and maximize noise suppression.
Engineers can identify capacitor needs based on operational behavior:
Excessive Electrical Noise: Interference in nearby devices indicates EMI issues.
Voltage Fluctuations: Observable dips or spikes on the drive input.
Unstable Motor Performance: Sudden speed or torque variations may result from inadequate voltage smoothing.
Controller Faults: Repeated trip events or error codes may point to back-EMF or voltage spike problems.
Adding an appropriate capacitor can stabilize the system, reduce noise, and extend motor lifespan.
In summary, most modern servo motors, especially DC and BLDC types, do not require external capacitors under normal conditions because their controllers already include necessary protections. However, in high-speed, high-voltage, long cable, or noise-sensitive applications, capacitors play a crucial role in:
Voltage smoothing
Noise suppression
Back-EMF protection
Power factor correction in AC systems
Selecting the right type, rating, and placement ensures optimal servo motor performance, reliability, and longevity. Engineers must evaluate each application individually to determine if adding a capacitor will provide measurable benefits.
