A servo motor operates on the principle of a closed-loop control mechanism, which allows it to achieve precise control of position, speed, and torque. Unlike a regular motor that simply rotates when supplied with power, a servo motor uses feedback to continuously adjust its motion according to the input command.
Here is the breakdown of the mechanism:
The system receives a control signal, usually in the form of a voltage, pulse, or digital command. This signal represents the desired position, speed, or torque the motor must achieve.
The motor has a feedback device—such as an encoder, resolver, or potentiometer—that constantly measures the actual output (current position, speed, or torque).
The control circuit compares this actual output with the input command.
The difference between them is called the error signal.
The error signal is sent to a servo controller or driver, which adjusts the motor's input (current, voltage, or pulse width) to correct the difference.
The servo motor responds to the adjusted input, moving the shaft precisely to the commanded position or speed.
This process repeats continuously in real time. The feedback loop ensures that the motor:
Moves quickly to the target position.
Stops accurately without overshooting.
Maintains torque and speed even under changing loads.
Servo Motor: Provides the motion.
Controller/Driver: Processes commands and regulates the motor.
Feedback Device (Encoder/Resolver): Supplies real-time position and speed data.
Power Supply: Provides energy to the system.
The mechanism of a servo motor is like a self-correcting system: it constantly checks whether it is doing what it's supposed to, and if not, it makes adjustments instantly. This is why servo motors are widely used in robotics, CNC machines, aerospace, and automation, where accuracy and reliability are critical.
Yes, a servo motor can rotate continuously, but it depends on the type of servo motor.
A standard servo is designed to rotate within a limited range (commonly 0° to 180° or sometimes up to 270°).
It is mainly used for applications where precise angular positioning is required, such as in robot arms, RC vehicles, and camera gimbals.
It cannot rotate endlessly because its feedback system (potentiometer or encoder) restricts motion to a set angle.
A continuous rotation servo looks like a standard servo but is modified to rotate indefinitely in either direction.
Instead of controlling an exact angle, the control signal determines the speed and direction of rotation.
A neutral signal (usually 1.5 ms pulse width) stops the motor.
A shorter pulse makes it rotate in one direction at varying speeds.
A longer pulse makes it rotate in the opposite direction.
These are often used in wheeled robots, conveyor belts, and automated drive systems.
In advanced servo systems (AC or DC servos with encoders), continuous rotation is possible while still maintaining precise speed and torque control.
Unlike standard hobby servos, these motors can rotate continuously without losing accuracy, thanks to their closed-loop feedback.
Standard servos → Limited rotation (angular control).
Continuous rotation servos → Rotate endlessly (speed/direction control).
Industrial servos → Can rotate continuously with precision and feedback control.
In the field of electric motors, understanding the differences between servo motors and normal motors is essential for engineers, manufacturers, and anyone involved in automation, robotics, and motion control. While both types of motors are used to convert electrical energy into mechanical motion, their design, purpose, and performance characteristics are significantly different.
A normal motor, often referred to as a conventional electric motor, is a device that converts electrical energy into mechanical energy through the interaction of magnetic fields and current. Common types of normal motors include:
AC motors (induction motors and synchronous motors)
DC motors (brushed and brushless)
These motors are designed for continuous rotation and are widely used in applications where precise control is not required, such as fans, pumps, conveyors, and household appliances.
A servo motor is a specialized motor equipped with a feedback system that enables precise control of position, speed, and torque. Unlike normal motors, servo motors are part of a closed-loop system, which means they continuously monitor their output and adjust according to the input command.
Servo motors are essential in fields like robotics, CNC machinery, aerospace, and automation, where accuracy and efficiency are critical.
Stator and rotor: Basic electromagnetic components that generate rotational force.
No feedback mechanism: Operates in an open-loop system, running until power is cut off.
Simple design: Prioritizes durability and efficiency over precision.
Stator and rotor: Similar to normal motors but designed for dynamic response.
Encoder or resolver: Provides continuous feedback on speed and position.
Control electronics: Integrated or external driver circuits interpret feedback and adjust current.
Compact and robust design: Optimized for precise and repetitive tasks.
Normal motors operate on the principle of electromagnetic induction. Once energized, they rotate continuously until the supply is switched off or load conditions change. They typically run at a constant speed determined by frequency (for AC motors ) or supply voltage (for DC motors).
A servo motor works on the principle of a closed-loop feedback system. The motor receives a command signal and compares it with the feedback signal from the encoder. If there is any deviation, the control system corrects the error, ensuring accurate movement and positioning.
Controlled by simple voltage or frequency variations. No inbuilt mechanism to verify actual performance.
Controlled by sophisticated drivers and controllers that continuously adjust based on encoder data. This ensures high accuracy, even under variable load conditions.
Normal motors: Limited speed control, often requiring external devices like VFDs (Variable Frequency Drives).
Servo motors: Excellent speed control with instant acceleration and deceleration response.
Normal motors: Torque depends on design and load, with limited precision.
Servo motors: Precise torque control, ideal for applications requiring constant torque under varying loads.
Normal motors: No inherent positioning ability.
Servo motors: High positioning accuracy due to closed-loop control.
Fans and blowers
Pumps and compressors
Conveyor belts
Household appliances (washing machines, refrigerators)
Industrial machinery with simple rotation needs
Robotics and automation systems
CNC (Computer Numerical Control) machines
Aerospace and defense systems
Packaging machinery
Camera autofocus systems
Medical equipment requiring precise movements
Cost-effective: Generally cheaper than servo motors.
Simple operation: Easy to install and run.
Durability: Designed for continuous operation in tough environments.
Low maintenance: Especially in induction motors with no brushes.
High precision: Accurate control over position, speed, and torque.
Fast response time: Quick adaptation to input signals.
Energy efficiency: Uses only the required power for a given task.
Compact size: Offers high performance in smaller form factors.
Flexibility: Suitable for complex automation systems.
Lack of precision: Cannot provide exact control over position or torque.
Speed limitations: Requires external devices for variable speed.
Inefficient under variable loads: Performance decreases with changing demands.
Higher cost: More expensive due to complex design and electronics.
Complex setup: Requires drivers, controllers, and tuning.
Maintenance needs: Encoders and sensors may need calibration or replacement.
| Feature | Servo Motor | Normal Motor |
|---|---|---|
| Control System | Closed-loop with feedback | Open-loop without feedback |
| Accuracy | High precision (position & torque) | Limited, depends on load |
| Speed Response | Fast and dynamic | Relatively slow, steady speed |
| Applications | Robotics, CNC, automation | Fans, pumps, conveyors, appliances |
| Cost | Higher | Lower |
| Complexity | Complex setup with controllers | Simple and straightforward |
Dc Servo Motors

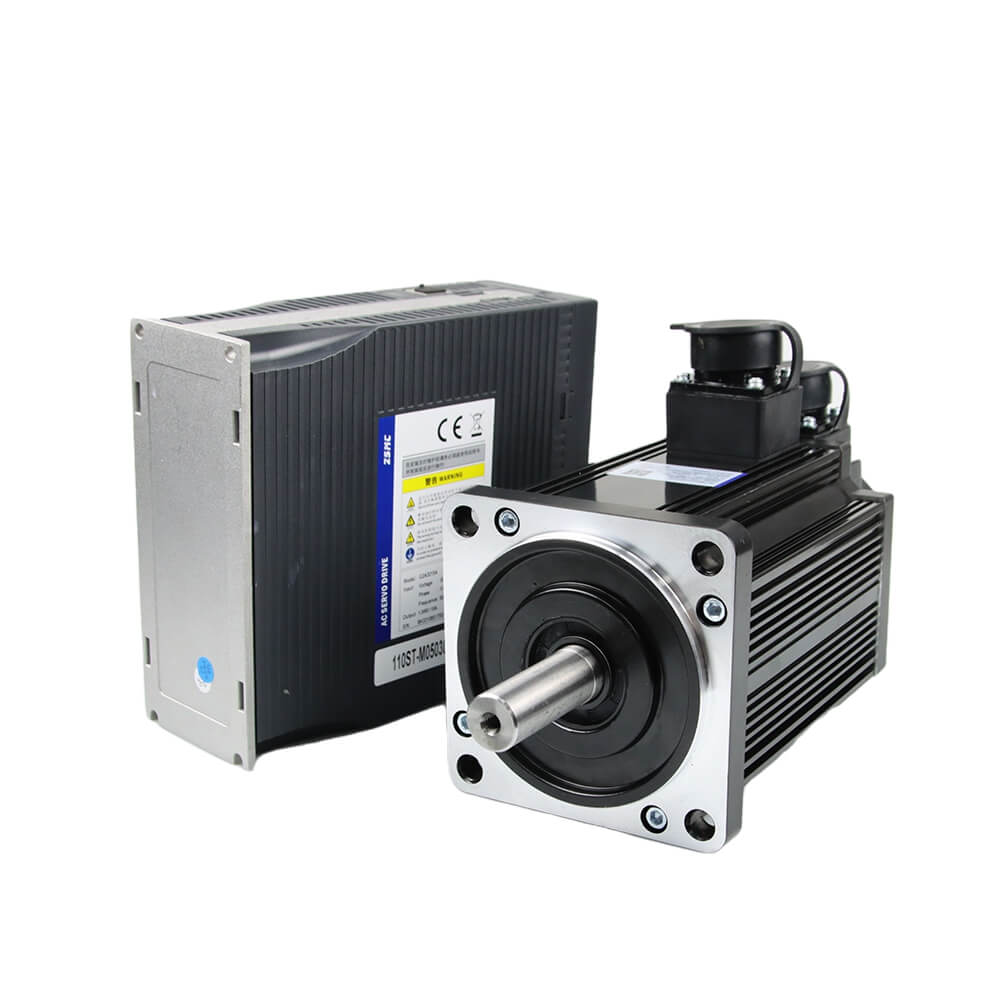

Ac Servo Motors
The lifespan of a servomotor depends on several factors such as the type of servo, its quality, operating conditions, and maintenance practices. In general, servo motors are designed for long-term reliability, but their service life can vary widely.
High-quality industrial servo motors typically last 20,000 to 30,000 operating hours (about 7–10 years in normal use).
With proper maintenance and favorable conditions, they can last even longer.
Designed for lighter use, these may last hundreds to a few thousand hours depending on load stress and build quality.
They wear out faster due to smaller size and less robust components.
Continuous operation at or above rated torque reduces motor life.
Shock loads, frequent reversals, or overloading accelerate wear.
A motor running continuously in heavy-duty cycles will wear faster than one used intermittently.
High ambient temperatures, dust, or moisture can degrade insulation, bearings, and electronic components.
Bearings usually determine the mechanical lifespan.
Encoders and feedback devices may also degrade over time.
Regular inspection, lubrication (if required), and proper cooling can extend life significantly.
Increased vibration or noise from bearings.
Decreased accuracy in positioning (feedback errors).
Overheating under normal load.
Intermittent electrical faults or encoder failures.
Avoid overloading and operate within rated specifications.
Use proper cooling and ventilation.
Protect from dust, moisture, and corrosive environments.
Perform preventive maintenance and replace worn bearings/encoders.
Industrial servos can last 7–10 years or more with good care.
Hobby servos may last a few hundred to a few thousand hours depending on use.
Proper operation and maintenance are the key factors in maximizing lifespan.
Choosing the right servo motor for your machine is critical to ensure accuracy, efficiency, and reliability. The selection depends on your machine's requirements for torque, speed, precision, and control. Here's a step-by-step guide to help you make the right choice:
Start by understanding what your machine needs the servo motor to do. Ask:
Is it for positioning, speed control, or torque control?
Will it operate continuously or intermittently?
Is high precision or just general control required?
Torque is the rotational force your servo motor must provide.
Calculate the load torque by considering:
Weight of the load.
Friction in the system.
Acceleration and deceleration demands.
Always choose a motor with some torque margin (20–30%) above the calculated requirement to ensure reliability.
Identify the maximum speed (RPM) your machine requires.
Check if the servo motor's rated speed and maximum speed match your system's demand.
Consider acceleration and deceleration times, as servo motors are often chosen for their ability to respond quickly.
If your machine requires precise positioning, select a servo motor with a high-resolution encoder.
Higher resolution means greater accuracy, which is crucial in applications like CNC machines, robotics, and packaging systems.
Make sure the servo motor's physical dimensions fit into your machine's design.
Check shaft type, mounting holes, and weight compatibility.
Verify the voltage rating (24V, 48V, 220V, etc.) matches your available supply.
Ensure the servo motor is compatible with the servo driver/controller you plan to use.
If the machine runs continuously, select a servo motor rated for continuous duty.
For harsh environments (dust, moisture, vibration), choose a motor with a suitable IP protection rating and robust construction.
Check whether the motor supports the control protocol required (e.g., CANopen, EtherCAT, Modbus).
Ensure integration with your machine's PLC or motion controller.
Choose motors from reputable brands with proven reliability.
Consider availability of spare parts, service support, and documentation.
Avoid over-specifying: a high-performance servo might be unnecessary for simple tasks.
Balance performance, lifespan, and budget to get the best fit.
In summary: To choose the right servo motor, you must match the motor's specifications to your machine's mechanical, electrical, and control requirements. A careful calculation of torque, speed, and accuracy, along with consideration of environment and budget, will ensure you select the most efficient motor for your application.
The main difference between a servo motor and a normal motor lies in the control and precision. While normal motors are ideal for continuous and straightforward rotational tasks, servo motors excel in applications requiring accuracy, responsiveness, and adaptability.
In industries where automation, robotics, and high-performance control are necessary, servo motors are the clear choice. However, for cost-effective, durable, and simple applications, normal motors remain indispensable.
