80ST-M04025 AC Servo Motor
JKONGMOTOR

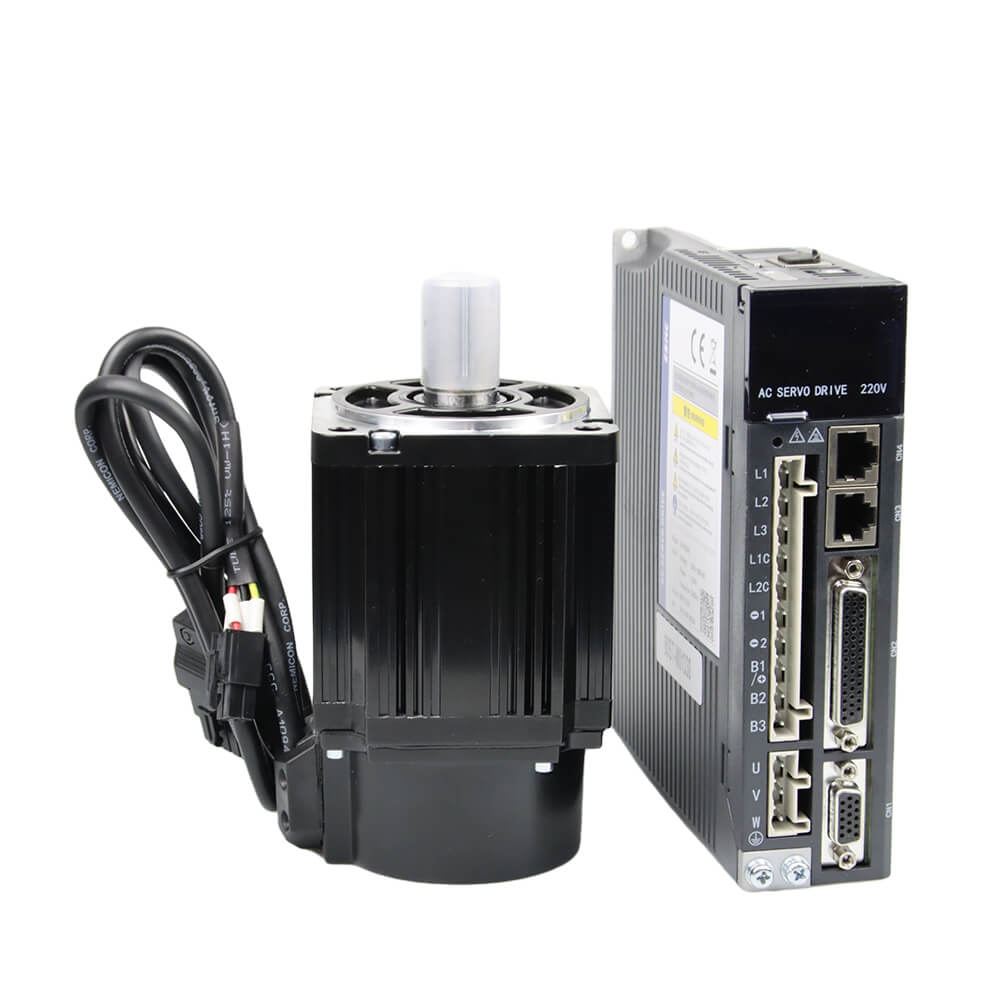

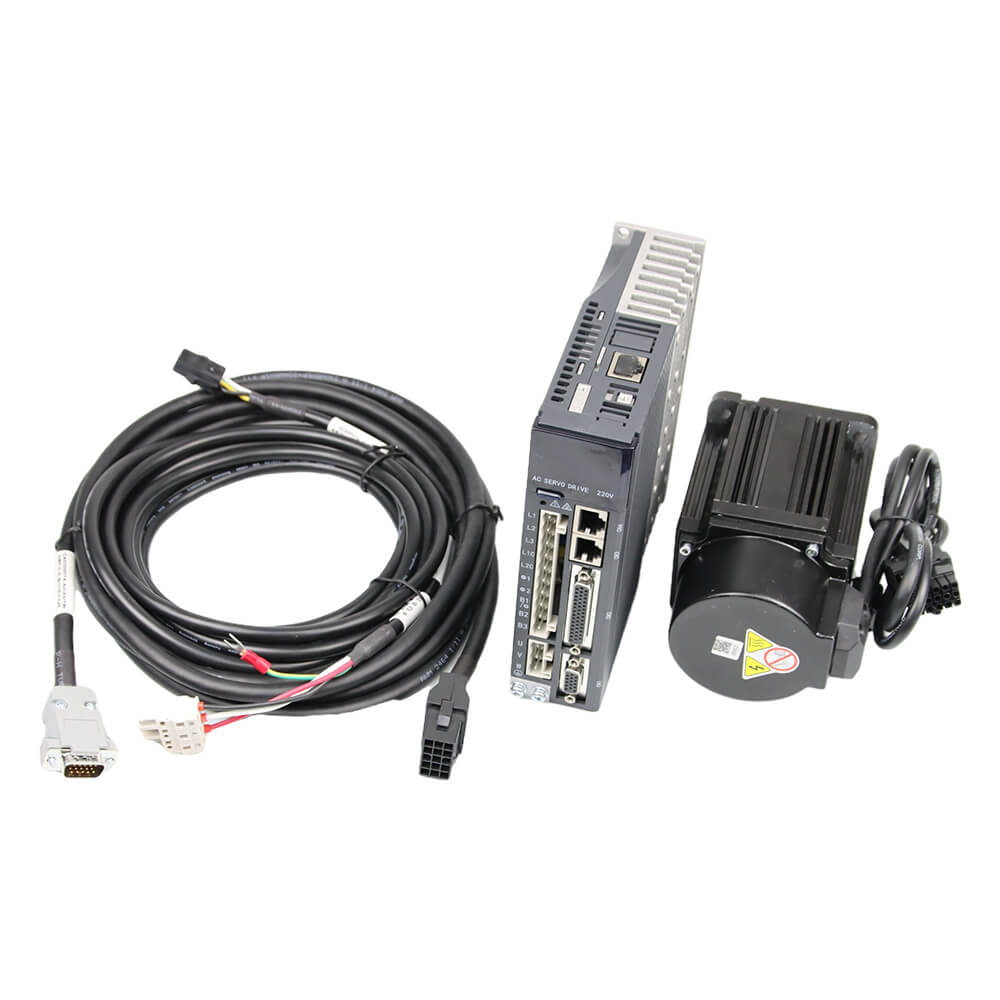

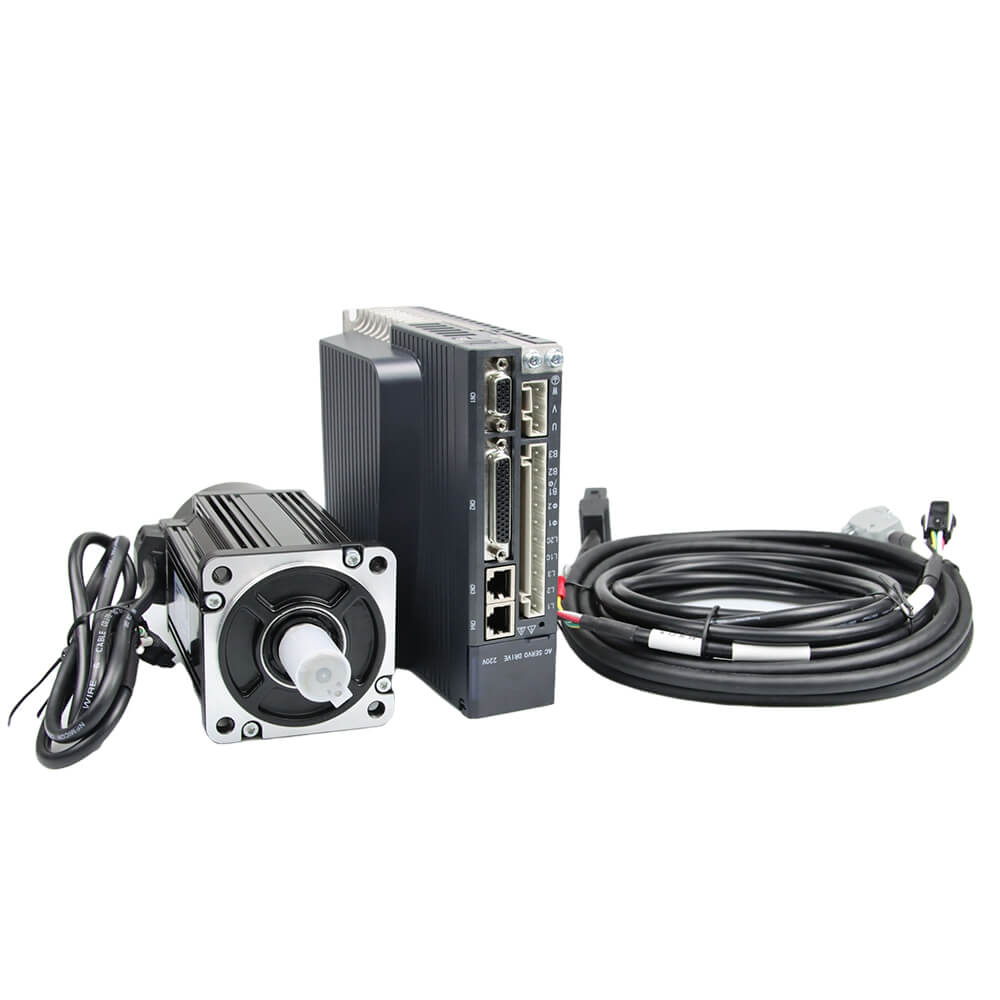

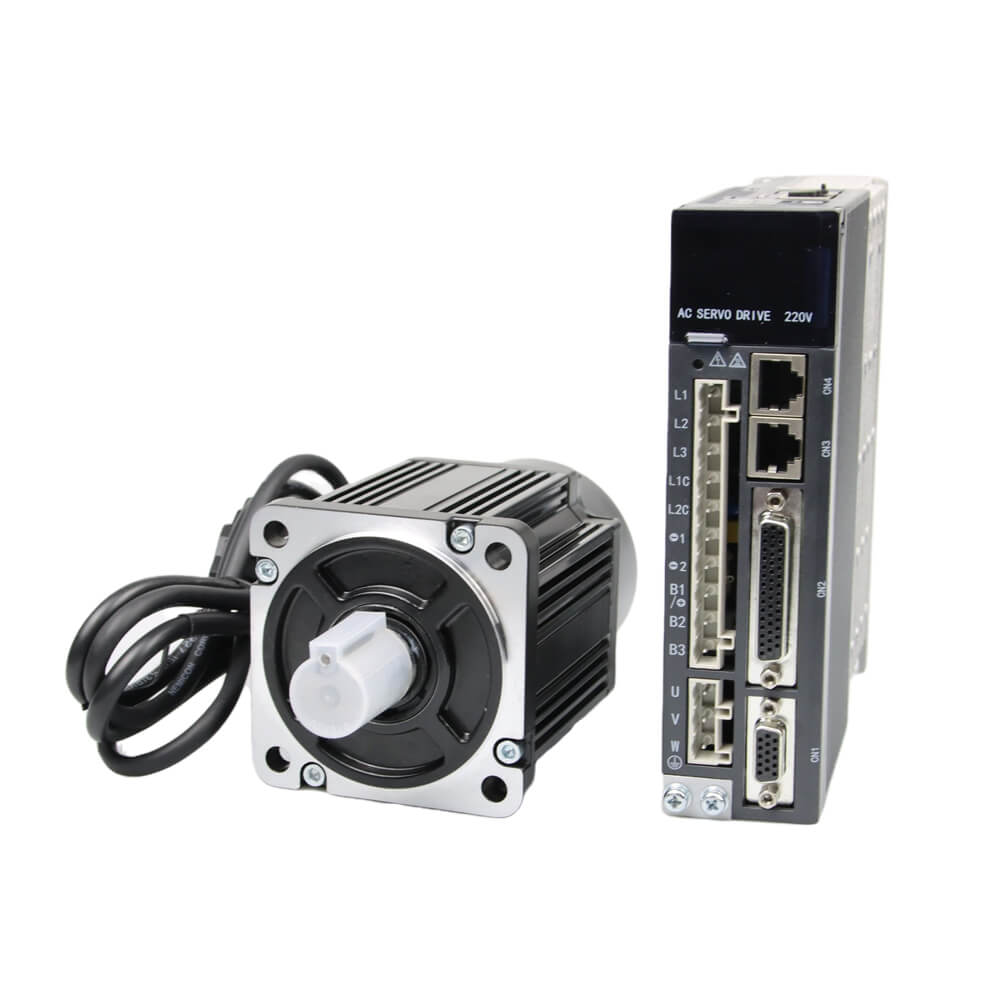

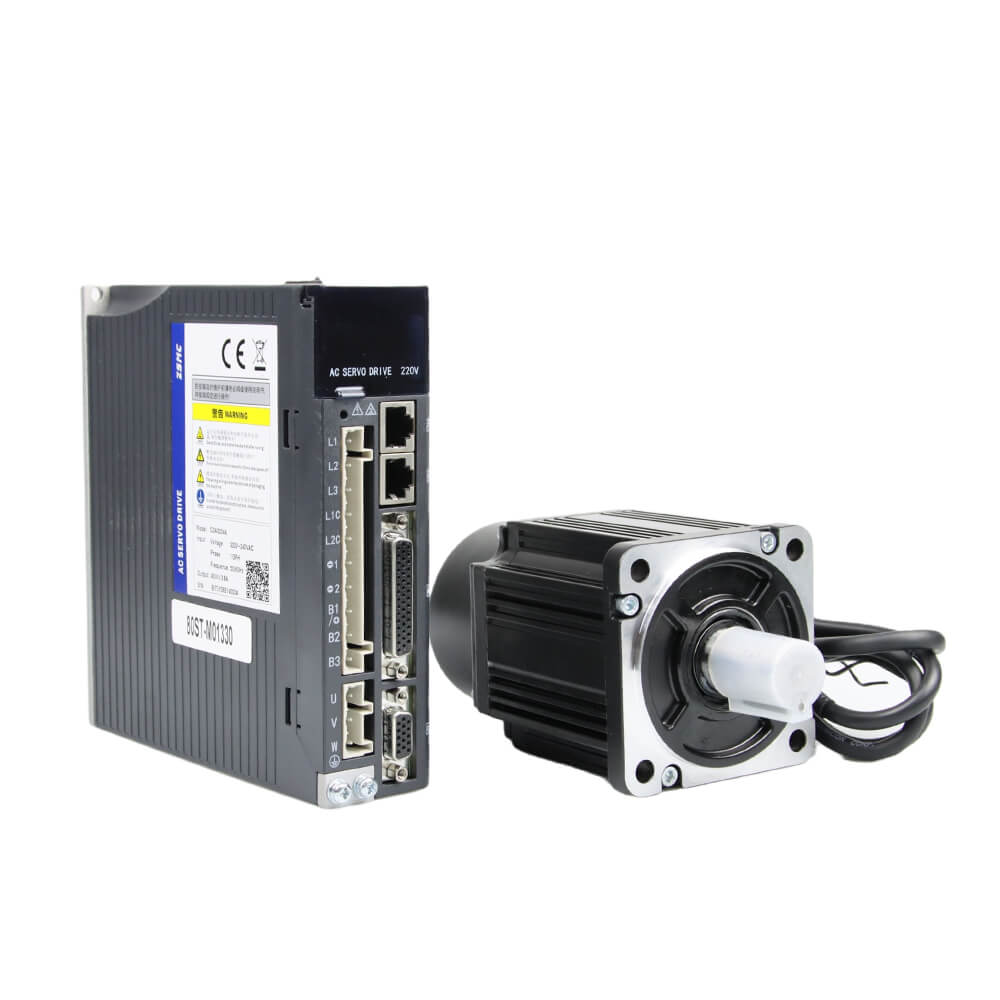

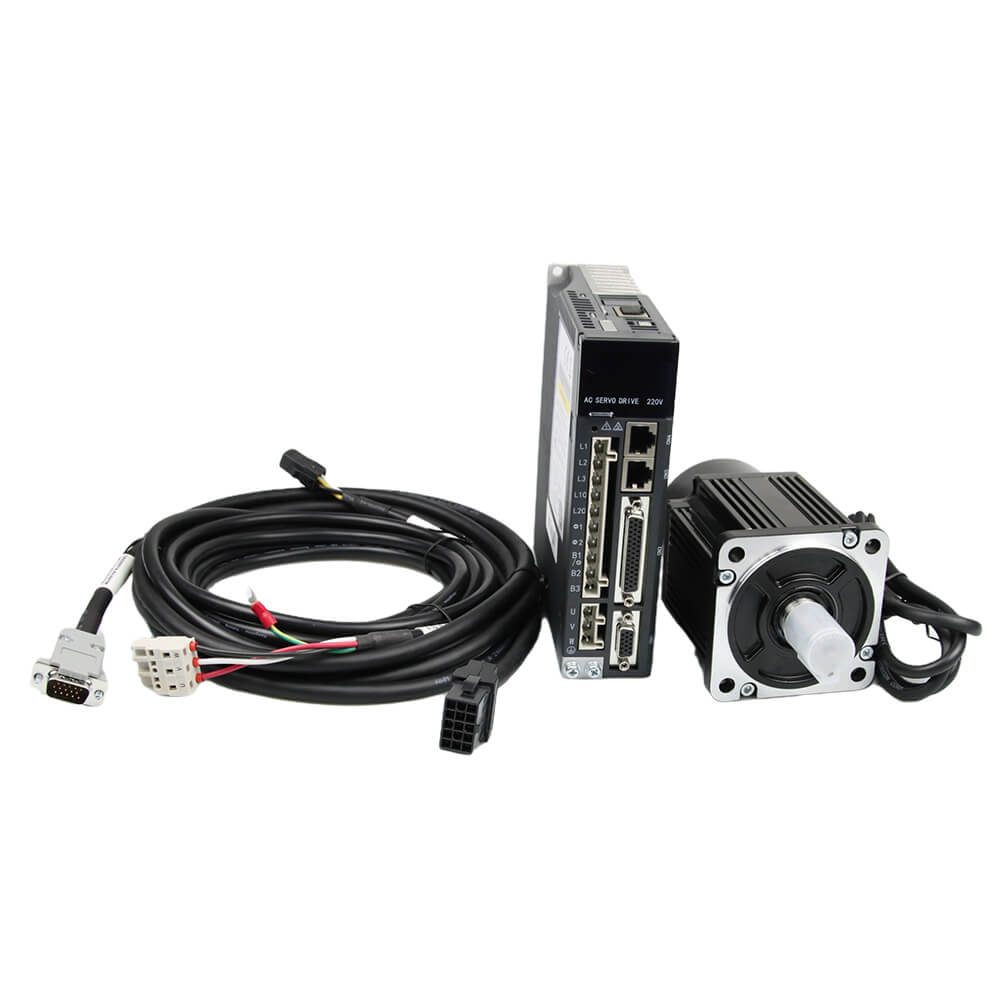

Jkongmotor 80ST S1 series IP65 waterproof ac servo motor kit (80ST-M04025) with 220V and 1000W. It has 2500rpm,4.4A, and holding torque is 4.0N.m. Brakes are optional for this ac servo motor, and together with 2500PPR Encoder. For more different ac or dc servo motors requirements (such as motors, gearbox, brake or encoder), please contact us!!!
| Motor Model | Unit | 80ST-M04025 | |||||||||||||||
| Rated power | KW | 1.0 | |||||||||||||||
| Rated voltage | V | 220 | |||||||||||||||
| Rated current | A | 4.4 | |||||||||||||||
| Rated speed | Rpm | 2500 | |||||||||||||||
| Holding torque | N.m | 4 | |||||||||||||||
| Peak torque | N.m | 12 | |||||||||||||||
| Peak current | A | 13.2 | |||||||||||||||
| Voltage constant | V/1000r/min | 56 | |||||||||||||||
| Torque coefficient | N.m/A | 0.9 | |||||||||||||||
| Rotor inertia | Kg.m2 | 2.97x10-4 | |||||||||||||||
| Line-Line Resistance | Ω | 1.83 | |||||||||||||||
| Line-Line Inductance | mH | 4.72 | |||||||||||||||
| Mechanical time-constant | Ms | 2.58 | |||||||||||||||
| Weight | Kg | 4.1 | |||||||||||||||
| Encoder line number | PPR | 2500 | |||||||||||||||
| Insulation class | Class | Class F | |||||||||||||||
| Safety class | IP | IP65 | |||||||||||||||
| Environmental Conditions Temperature ℃ | Temperature -20℃ ~ +40℃ Humidity Below 90%RH No dewing | ||||||||||||||||
Motor winding plue | Winding lead wire | U | V | W | PE | ||||||||||||
| Plug serial number | 1 | 2 | 3 | 4 | |||||||||||||
| Photoelectric Encoder Socket (15 Pin) | Signal lead wire | 5V | 0V | B+ | Z- | U+ | Z+ | U- | A+ | V+ | W+ | V- | A- | B- | W- | PE | |
| Plug serial number | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 1 | ||
| Absolute Encoder Socket (7 pin) | Signal lead wire | E- | E+ | SD- | 0V | SD+ | +5V | PE | |||||||||
| Plug serial number | 2 | 3 | 4 | 5 | 6 | 7 | 1 | ||||||||||
1. Installation/disassembly components coupled to the motor shaft end, do not hit shaft hard to prevent the other side of motor shaft encoder was knocked out bad.
2. Striving to make the best of its shaft to prevent vibration and bearing damage.
| Motor Model | 80ST-M04025 |
| L without Brake | 191 |
| L with Permanent magnet Brake | 245 |
| L with elctromagntic Brake | 231 |
