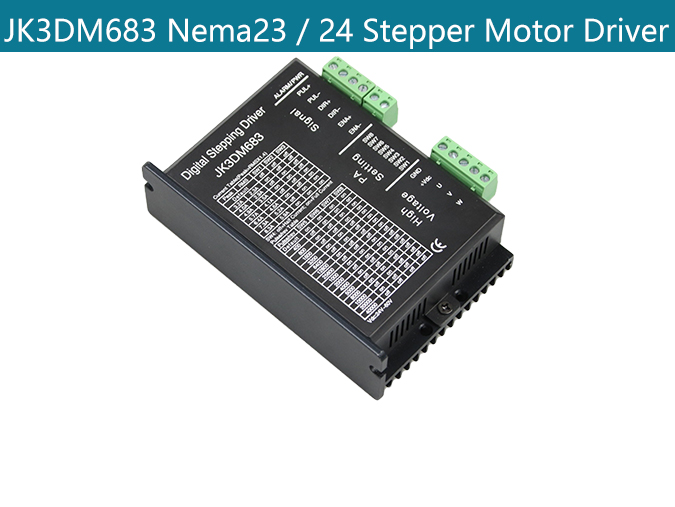

JK3DM683 Stepper Motor Driver

Product Description:

Main features:

Product Type: Nema 23 Stepper Motor or Nema 24 Stepper Motor Driver

Feature summary:High-performance, low price, micro-step, Automatic idle-current reduction, Optical isolating signals I/O, Max response frequency up to 200Kpps, Low temperature rise, smooth motion, Online adaptive PID technology.

Place of Origin:china

Minimum order quantity:10pcs

Support Motor: Nema 23 Stepper Motor or Nema 24 Stepper Motor

Packing:The sample is packed in carton,the batch with plastic pallet

Delivery time:Standard product: 7-10days

Customized product: 25-30days

Transaction mode:EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...



Product Overview:

The JK3DM683 is a new generation high-performance digital stepper driver based on DSP with advanced control algorithm. The motors driven by JK3DM683 can run with much smaller noise and much less vibration than other drivers in the market. The JK3DM683 possess the feature of lower noise, lower vibration, and lower heating. The JK3DM683s voltage is DC 24V-60V. It is suitable for all the 3-phase hybrid stepper motor whose current is less than 5.6A.There are 16 kinds of microstep of 3DM683.  The maximum step number of JK3DM683 is 51200 steps/rev (microstep is 1/256 ). Its current range is 3.2A-8.3A, and its output current has 8 stalls. JK3DM683 has automatic semi-flow, over-voltage, under voltage and over-current protection function.



Applications:

It can be applied in a variety of small scale automation equipment and instruments, such as labeling machine, cutting machine, packing machine, drawing machine, engraving machine, CNC machine and so on. It always performs well when it is used in equipment which requires for low-vibration, low-noise, high-precision and high-velocity.




Current selection:

Peak

RMS

SW1

SW2

SW3

Default

OFF

OFF

OFF

3.2A

2.3A

ON

OFF

OFF

4.0A

2.9A

OFF

ON

OFF

4.9A

3.5A

ON

ON

OFF

5.7A

4.1A

OFF

OFF

ON

6.4A

4.6A

ON

OFF

ON

7.3A

5.2A

OFF

ON

ON

8.3A

5.9A

ON

ON

ON



Microstep selection:

Pulse/Rev

SW5

SW6

SW7

SW8

Default

ON

ON

ON

ON

800

OFF

ON

ON

ON

1600

ON

OFF

ON

ON

3200

OFF

OFF

ON

ON

6400

ON

ON

OFF

ON

12800

OFF

ON

OFF

ON

25600

ON

OFF

OFF

ON

51200

OFF

OFF

OFF

ON

1000

ON

ON

ON

OFF

2000

OFF

ON

ON

OFF

4000

ON

OFF

ON

OFF

5000

OFF

OFF

ON

OFF

8000

ON

ON

OFF

OFF

10000

OF

ON

OFF

OFF

20000

ON

OFF

OFF

OFF

40000

OFF

OFF

OFF

OFF

Default: The pulse can be customized according to customers’ requirements.



Common indicator:

Phenomenon

Reason

Solution





The red indicator is on.

1. A short circuit of motor wires.

Inspect or change wires

2. The external voltage is over or low than the drivers working voltage.

Adjust the voltage to a reasonable rang

3. Unknown reason

Return the goods



Driver functions descriptions:

Driver function

Operating instructions

Output

current

setting

Users can set the driver output current by SW1-SW3 three switches.

The setting of the specific output current, please refer to the instructions of the driver panel figure.



Microstep setting

Users can set the driver Microstep by the SW5-SW8 four switches. The setting of the specific Microstep subdivision, please refer to the instructions of the driver panel figure.





Automatic half

current function

Users can set the driver half flow function by SW4. "OFF" indicates the quiescent current is set to half of the dynamic current, that is to say, 0.5 seconds after the cessation of the pulse, current reduce to about half automatically. "ON" indicates the quiescent current and the dynamic current are the same. User can set SW4 to "OFF", in order to reduce motor and driver heating and improve reliability.



Signal interfaces

PUL+ and PUL- are the positive and negative side of control pulse signal; DIR+ and DIR- are the positive and negative side of direction signal; ENA+ and ENA- are the positive and negative side of enable signal.



Motor interfaces

A+ and A- are connected to a phase winding of motor; B+ and B- are connected to another phase winding of motor. If you need to backward, one of the phase windings can be reversed.



Power interfaces

It uses DC power supply. Recommended operating voltage is 24VDC-60VDC, and power consumption should be greater than 100W.





Indicator lights

There are two indicator lights. Power indicator is green. When the driver power on, the green light will always be lit. Fault indicator is red, when there is over-voltage or over-current fault, the red light will always be lit; after the driver fault is cleared, if re-power the red light will be off.



Installation

instructions

Driver dimensions:118×75×32mm, please refer to dimensions diagram. Please leave 10CM space for heat dissipation. During installation, it should be close to the metal cabinet for heat dissipation.

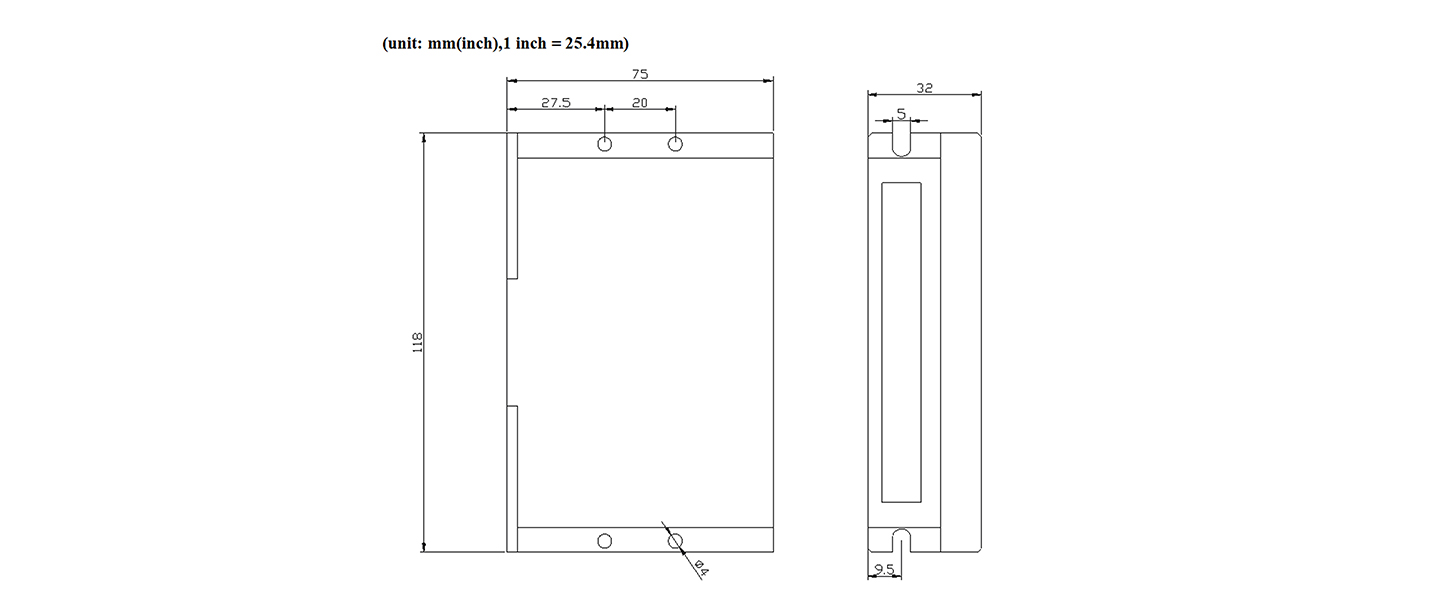

Product Dimension:

3phase stepper motor driver





Customized Design:

If this product do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.



Related Stepper motor:

Nema 23 Stepper Motor or Nema 24 Stepper Motor.




FAQS:

1. How can get it started as soon as possible when you first use the drive?

After you correctly connect the power cord, the motor line, the Hall line, the external potentiometer slowly accelerates. After the motor is turned correctly, you can test the enable, direction and other functions. If you are unfamiliar with the product, the initial use should be done after the test. And then it can be installed to the actual use.



2. What will come about if power supply is reverse?

It will immediately burn the drive.



3. What is the maximum of the upper control signal voltage ?

The maximum voltage of the speed regulation signal is 5V. Exceeding this voltage will cause the drive to burn.



4. After the driver has been working for a long time, the shell is hot. Is it normal?

Yes, it is. At room temperature, after long working hours, it is up to 90 degrees. And it will not affect the performance.



5. The power indicator is light, but the motor does not turn and shift, what is the reason?

There may be a mistake in the phase line and the Hall line. Please re-energize the wiring according to the motor manual.



6. Can my motor speed transferred to 6000 with this drive?

The maximum speed of the brushless motor is determined by the parameters of the motor itself. The drive can control the motor speed from 0 to the highest speed.



7. I already have a motor and how to install this drive after wiring?

You must first determine the motor phase and the definition of the Hall line, and then you can connect it with wires. If you are not sure, you need to ask the motor manufacturers. Incorrect wiring can cause damage to the drive.



8. Can I add some features on this drive or do new product development?

Yes, please contact us.
