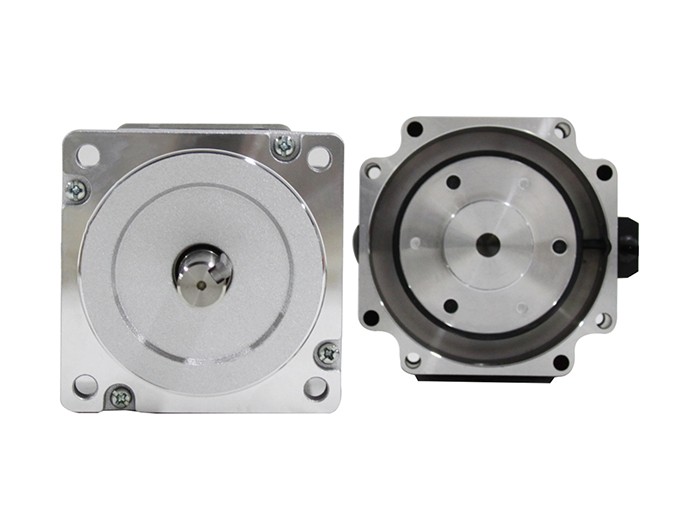

JKM Nema 34 Brake Step Motor
    • JKM Nema 34 Brake Step Motor
    • JKM Nema 34 Brake Step Motor
    • JKM Nema 34 Brake Step Motor
    • JKM Nema 34 Brake Step Motor
    • JKM Nema 34 Brake Step Motor
    • JKM Nema 34 Brake Step Motor
Product Details

Model: NEMA34 Brake Stepper Motor-JK86HS (1.8 degree)


General Specification:

Item

Specifications

Step Angle

1.8°

Temperature Rise

80℃max

Ambient Temperature

-20℃~+50℃

Insulation Resistance

100 MΩ Min. ,500VDC

Dielectric Strength

500VAC for 1minute

Shaft Radial Play

0.02Max. (450g-load)

Shaft Axial Play

0.08Max. (450g-load)

Max. radial force

220N (20mm from the flange)

Max. axial force

60N




Product Parameters:

Product Type: Nema 34 Brake Stepper Motor

Size:86x86mm

Place of Origin:china

Minimum order quantity:10pcs

Material Science:stator, rotor, stainless steel shaft, copper wire, magnetic steel...

Feature summary:  Low Inertia,Quick Feedback; High Torque,High Efficiency; Small Vibration,Low Noise

Packing:The sample is packed in carton,the batch with plastic pallet

Delivery time:Standard product: 7-10days

Customized product: 25-30days

Transaction mode:EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...

Application: JKONGMOTORs stepper motors are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices,stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.



Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

( °)

(L)mm

A

Ω

mH

N.m

No.

Kg.cm

g.cm2

Kg

JK86HS68-5904BK6

1.8

67

5.9

0.28

1.7

3.4

4

0.8

1000

1.7

JK86HS78-5504BK6

1.8

78

5.5

0.46

4

4.6

4

1.2

1400

2.3

JK86HS97-4504BK6

1.8

97

4.5

0.66

3

5.8

4

1.7

2100

3.0

JK86HS100-6004BK6

1.8

100

6.0

0.36

2.8

7.0

4

1.9

2200

3.1

JK86HS115-4204BK6

1.8

115

4.2

1.2

14

8.7

4

2.4

2700

3.8

JK86HS126-6004BK6

1.8

126

6.0

0.58

6.5

6.3

4

2.9

3200

4.5

JK86HS155-6004BK6

1.8

155

6.0

0.68

9.0

13

4

3.6

4000

5.4

Note: Above only for representative products, products of special request can be made according to the customer request.
