Model: 36mm 2 phase Hybrid Stepper Motor 36x36mm -JK36HM(0.9 degree)
Product Name: 0.9degree 36mm Round Stepper Motor
Step Angle: Hybrid Round Stepping Motor
Size: 36x36mm Step Motor
Current / Phase: 0.3A / 0.4A / 0.425A
Holding Torque: 420g.cm - 810g.cm
Leads No.: 4leads

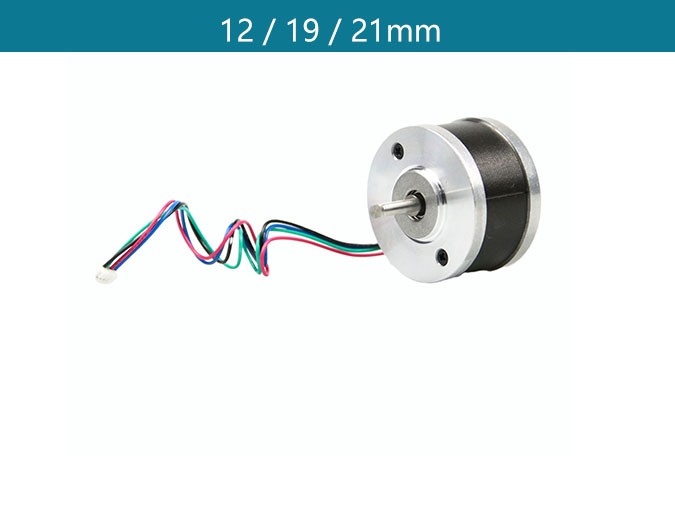

Motor Length: 12mm / 19mm / 21mm
Product Type: 2 Phase Biplor Stepping Motor
General Specification:
Item | Specifications |
Step Angle | 1.8° |
Temperature Rise | 80℃max |
Ambient Temperature | -20℃~+50℃ |
Insulation Resistance | 100 MΩ Min. ,500VDC |
Dielectric Strength | 500VAC for 1minute |
Shaft Radial Play | 0.02Max. (450g-load) |
Shaft Axial Play | 0.08Max. (450g-load) |
Max. radial force | 28N (20mm from the flange) |
Max. axial force | 10N |
Electrical Specification:
Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm | g.cm2 | Kg | |
JK36HM12-0304 | 0.9 | 12 | 0.3 | 16.8 | 8.5 | 420 | 4 | 80 | 4 | 0.06 |
JK36HM18-0404 | 0.9 | 19 | 0.4 | 12 | 5 | 560 | 4 | 100 | 6 | 0.1 |
JK36HM21-0404 | 0.9 | 21 | 0.425 | 9 | 5 | 810 | 4 | 125 | 7 | 0.13 |
Note: Above only for representative products, products of special request can be made according to the customer request.
Product Parameters:
Feature summary：Low Inertia、Low Noise、High Torque
Place of Origin：china
Minimum order quantity：10pcs
Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...
Applicatin Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Lighting, ect.
Packing：The sample is packed in carton,the batch with plastic pallet
Delivery time：Standard product: 7-10days
Customized product: 25-30days
Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...
Product Dimensions: (Unit=mm)
Customized Design:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Customized Shaft Types:
Matched Drivers:
2 Phase Stepper Motor driver Model: JK0220
