Model: NEMA11 Captive Linear Actuator Stepper Motor-JK28HSK (1.8 degree)
Each phase draws 670 mA at 6.2 V, allowing for a holding torque of 1.2 kg.cm. With a small frame size of 28x28mm, this is a stepper motor for robotic or CNC applications where weight is a concern.
The captive actuator has a built in anti-rotation mechanism through the use of a splined output shaft that allows it to extend and retract as a unit with no requirements for additional anti-rotation. The captive actuator is designed for shorter strokes.
In addition to providing high-performance hybrid stepper linear motors, Jkongmotor provides high-quality leadscrews and nuts, opening up new avenues for equipment designers who need high performance and superior durability. The Jkongmotor's actuators generate more force than similar actuators due to their special stator geometry and optimized magnet materials.
Our proven permanent magnet linear actuators are ideal for simple designs with lower performance requirements.

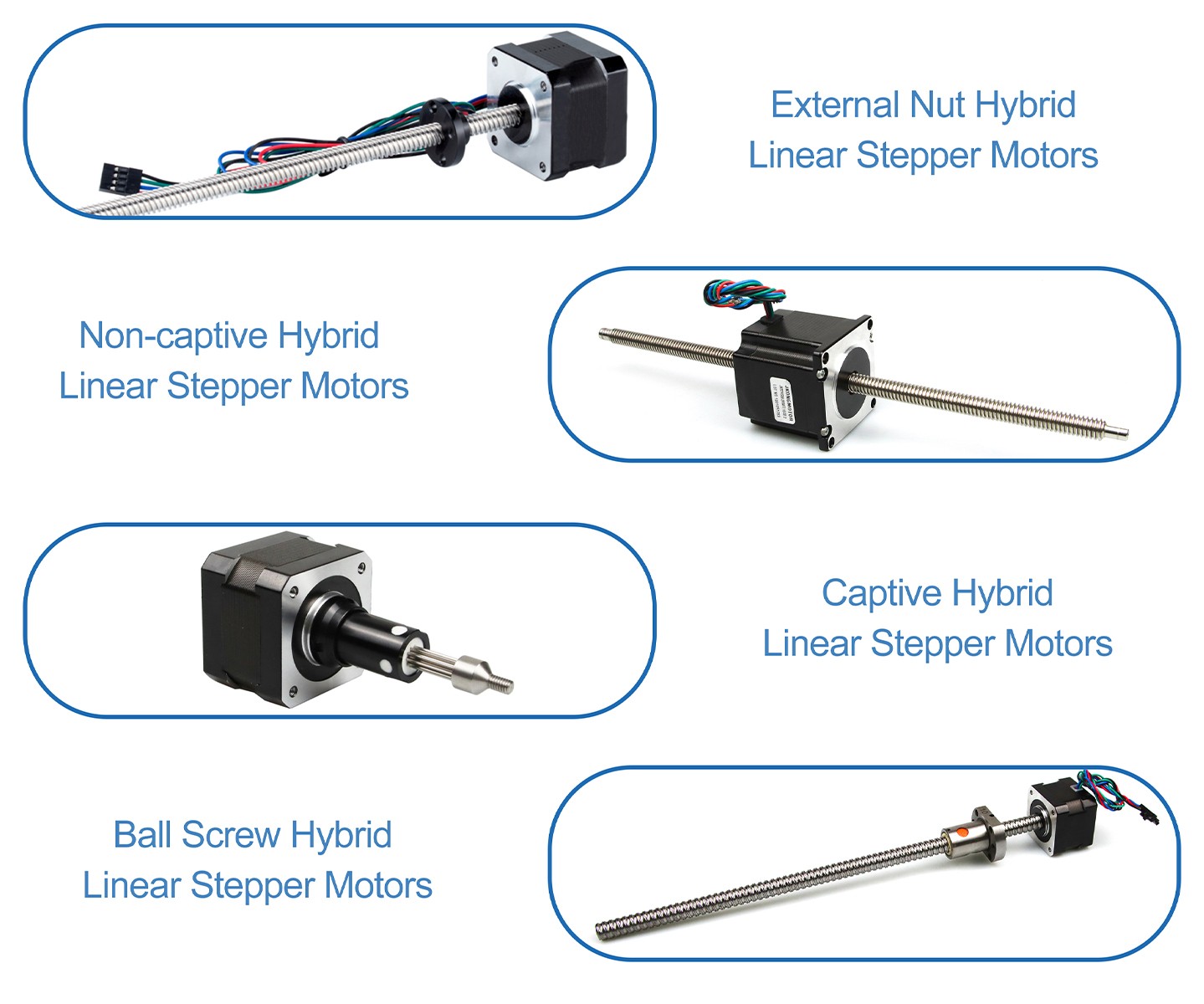

There are four types of linear stepper motors: external drive linear stepper motors (including T-type lead screw and ball screw), Captive linear stepper motors and Non-Captive linear stepper motor
General Specification:
Item | Specifications |
Step Angle | 1.8° |
Temperature Rise | 80℃max |
Ambient Temperature | -20℃~+50℃ |
Insulation Resistance | 100 MΩ Min. ,500VDC |
Dielectric Strength | 500VAC for 1minute |
Shaft Radial Play | 0.02Max. (450g-load) |
Shaft Axial Play | 0.08Max. (450g-load) |
Max. radial force | 28N (20mm from the flange) |
Max. axial force | 10N |
Product Parameters:
Product Type: Nema 11 Captive Linear Actuator Stepper Motor
Size：28x28mm Nema 11 Captive Linear Motor
Place of Origin：china
Minimum order quantity：10pcs
Customized Parts: Connector
Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...
Feature summary: Low Inertia,Quick Feedback; High Torque,High Efficiency; Small Vibration,Low Noise
Packing：The sample is packed in carton,the batch with plastic pallet
Delivery time：Standard product: 7-10days
Customized product: 25-30days
Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...
APPLICATION：JKONGMOTOR linear stepping motor is a motor that converts electrical pulse signals into corresponding angular displacements or linear displacements. This small linear actuator stepper motor can be widely used in various fields, such as a 3D printer, stage lighting, laser engraving, textile machinery, medical equipment, automation equipment, etc.
Electrical Specification:
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Rotor Interia | Mass |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm2 | kg | |
| JK28HSK32-0674 | 1.8 | 32 | 0.67 | 5.6 | 3.4 | 600 | 4 | 9 | 0.11 |
| JK28HSK45-0674 | 1.8 | 45 | 0.67 | 6.8 | 4.9 | 950 | 4 | 12 | 0.14 |
| JK28HSK51-0674 | 1.8 | 51 | 0.67 | 9.2 | 7.2 | 1200 | 4 | 18 | 0.2 |
Note: Above only for representative products, products of special request can be made according to the customer request.
Screw rod Specification:
| Size A | Journey B | Size C | |
| (mm) | (mm) | L=32 | L=45 |
| 14.7 | 12.7 | 2.35 | 0 |
| 22.1 | 19.05 | 9.15 | 0 |
| 27.4 | 25.4 | 15.05 | 4.6 |
| 33.8 | 31.8 | 21.45 | 11 |
| 40.1 | 38.1 | 27.75 | 17.4 |
| 52.8 | 50.8 | 40.35 | 29.8 |
| 63.5 | 63.5 | 54.05 | 42.5 |
Note: Above only for representative products, products of special request can be made according to the customer request.
Different Types:
Feature summary：High torque; High stability; Easy to plug...
Product Dimensions: (Unit=mm)
Customized Design:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Customized Shaft Types:
Matched Drivers:
2 Phase Stepper Motor driver Model: JK0220 / DM420
