Model: Jkongmotor 42mm JK42BL 12V 24V 36V Round Brushless Dc Motor with Planetary Gearbox 42x42mm

A planetary gearbox is a gearbox with the input shaft and the output shaft aligned. A planetary gearbox is used to transfer the largest torque in the most compact form (known as torque density).

A planetary gear is a type of gear system comprised of spur gears. In planetary gearing (also known as epicyclic gearing), a center gear, called a sun gear, serves as the input and driver of the set. Three or more “driven” gears (referred to as planets) rotate around the sun gear.


General Specification of 42BL BLDC Motors:

General Specification

Item

Specification

Winding type

Delta

Hall effect angle

120 degree electrical angle

Shaft run out

0.025mm

Radial play

0.02mm@450g

End play

0.08mm@450g

Max.radial force

15N @20mm form the flange

Max.axial force

10N

Insulation class

Class B

Dielectric strength

500VDC for one minute

Insulation resistance

100MΩ Min.,500VDC


42mm Geared BLDC Motor Electrical Specification:

Gearbox Electrical Specification:

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

182

219

254

306

354

427

495

596

Number of geartrains

1

2

3

4

Transmission efficiency

90%

81%

73%

66%

Rated tolerance torque

1 N.m

4 N.m

8 N.m

10 N.m

Max momentary tolerance torque

3 N.m

12 N.m

25 N.m

30 N.m

Max radial load(12mm form flange)

≤80N

Max shaft axial load

≤30N

L2 length(mm)

31.5

42.1

52.5

62.9

*Note: Operating ambient humidity:20%~85%RH; Operating ambient temp:-10℃~+80℃。


Planetary Gearbox Electrical Specification:

42JXE100K
Ring materialMetal / Powder metal
Bearing at outputBall bearings
Max. Radial (12mm from flange)200N
Max. shaft axial load100N
Radial play of shaft (near to flange)≤0.06mm
Axial play of shaft≤0.3mm
Backlash at no-load≤2.5°
Shaft press fit force, max150N


Suitable Brushless DC Motor Shaft Pinion Specifications
Module0.6
No. of teeth1117
Pressure angle20°
Hole diameterΦ3.16   Φ3.98  Φ4.48
Reduction ratio1/5.18  1/19  1/27  1/71  1/100  1/139  1/253  1/305  1/354  1/426  1/495  1/5961/3.71  1/14  1/51  1/181  1/218


Planetary Gearbox Specifications:
Reduction ratioExact reduction ratioRated tolerance torqueMax momentary tolerance torqueEfficiencyL (mm)Weight (g)
1/3.7  1/5.21/3.71  1/5.181.0 N.m Max3.0 N.m90%31.5±0.5244
1/14  1/19  1/271/13.73  1/19.20  1/26.854.0 N.m Max12 N.m81%42.1±0.5314
1/51  1/71  1/100  1/1391/50.89  1/71.16  1/99.51  1/139.148.0 N.m Max25 N.m73%52.5±0.5433
1/181  1/218  1/253  1/305  1/354  1/426  1/495  1/5961/180.96  1/218.12  1/253.03  1/304.99  1/353.80  1/426.46  1/494.71  1/596.3110 N.m Max30 N.m66%62.9±0.5519
Input & output same rotation direction; Motor Max. input speed: <8000rpm; Operating temperature range: -15℃ ~ +80℃


Planetary Gearbox Drawing:

24v dc geared motor


JK42BLS Round Brushless DC Geared Motor Dimensions: (Unit=mm)

brushless dc motor 48v

24v bldc motors


Product Parameters:

Product Type: JK42BL Round Geared BLDC Motor with Planetary Gearbox

Size:42x42mm

Place of Origin:china

Minimum order quantity:10pcs

Material Science:stator, rotor, stainless steel shaft, copper wire, magnetic steel...

Feature summary:  Low Inertia,Quick Feedback; High Torque,High Efficiency; Small Vibration,Low Noise

Packing:The sample is packed in carton,the batch with plastic pallet

Delivery time:Standard product: 7-10days

Customized product: 25-30days

Transaction mode:EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...

APPLICATION:Medical equipment: medical pumps, stirring instruments, peristaltic pumps, biopharmaceutical equipment. Industrial equipment: winding machines, printing machines, robots, grinding, cutting, drilling, automatic conveying systems, automatic positioning systems, level control systems, electric actuators, electric valves, vending machines.


Customized Design:

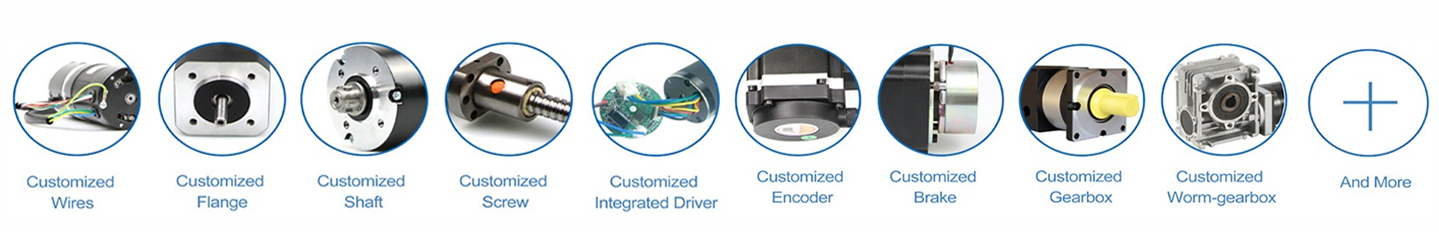

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

300w bldc motor



Customized Shaft Types:

48v brushless dc motor

bldc motors


Matched Drivers:

Brushless DC Motor driver Model:  JKBLD70 / JKBLD120 / JKBLD300
