Product Details

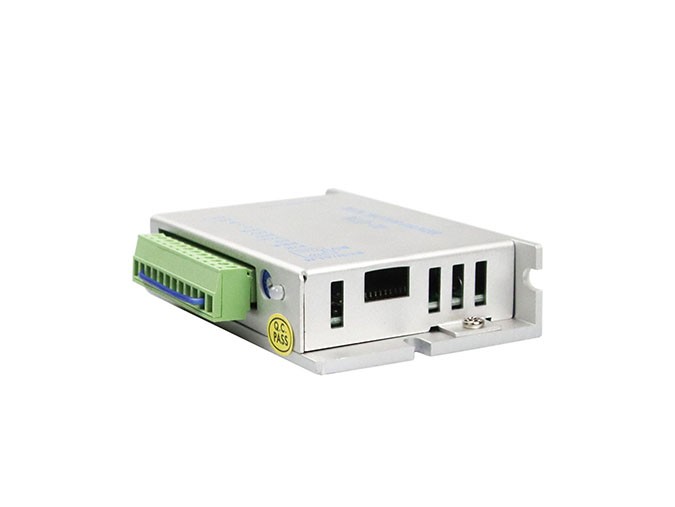

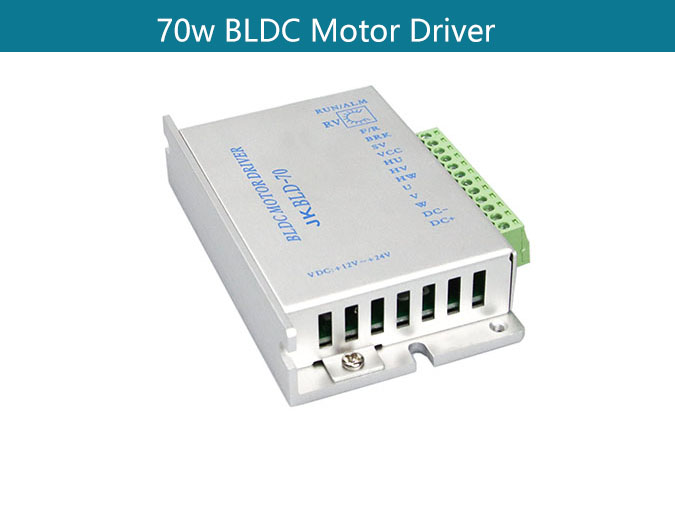

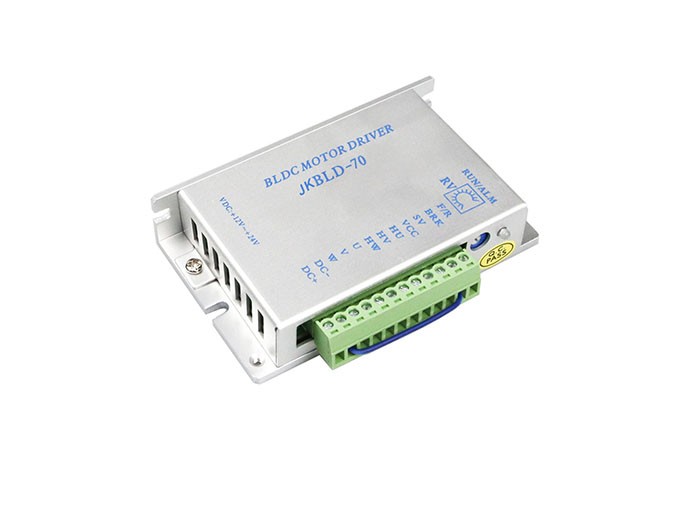

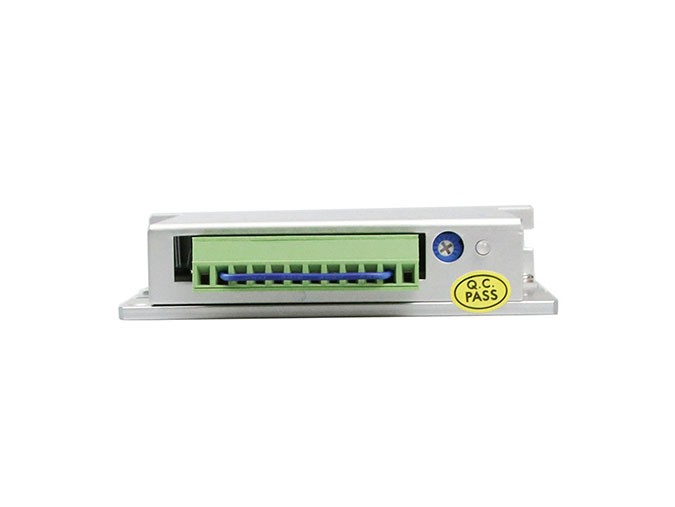

JKBLD70 Brushless DC Motor Driver

Product Description:

Model Name:JKBLD70

Environment Temperature:-10℃~ 50℃

Input Voltage: +12V~ +24V

Output Current: 0.05A~3A

Suitable Motor Speed: 0~10000Rpm

Hall Sensor Voltage: 4.5V~ 6.5V

External Potentiometer: 10KΩ

Support Motor: Brushless DC Motor less of 70w


JKBLD70 is a high performance, codt-effective 3 phase BLDC Motor driver which can provide power output 70W max. The design is based on advanced current control technology and feature high torque, low noise, low vibration, over current protect, over load protection.




Electrical Specifications:

Parameter

Min

Rated

Max

Unit

Motor Hall Sensor Angle

120°/240°

    ℃

DC Power Input

10

24

30

V

Drive Current Output

      /

3

5

A

Suitable Motor Speed

0

      /

20000

rpm

Hall Sensor Voltage

4.5

6.25

6.5

V

Hall Sensor Current

      /

20

      /

mA

External Potentiometer

      /

10K

      /

Ω

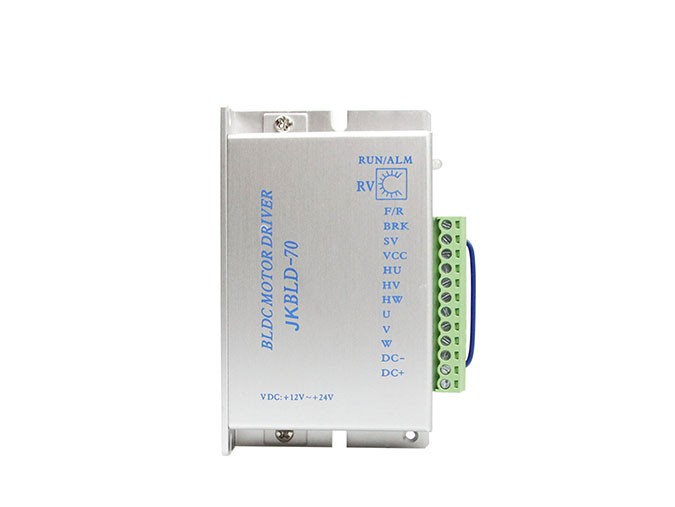

EConnection Definition:

Mark

Definition

DC+/DC-

DC power input  DC10V~DC30V

U,V,W

Motor lead wire

Hu,Hv,Hw

Hall sensor lead wire

Vcc

Hall sensor power supply ++6.25Vand  external potentiometer power supply +

DC-

Hall sensor power supply -

SV

External potentiometer

F/R

DirectionF/R connect to DC- CCW   F/R disconnect to DC- :CW

BRK

Quick brake:  BRK connect to DC- : running  BRK disconnect to DC- : brake





Mechanical Size:

bldc motor driver





Speed Adjustment Instruction:

A. Motor speed adjusted by the internal potentiometer RV

B. Motor speed adjusted by the external potentiometer

C. Motor speed adjusted by analog signal  0V~+5V input



Customized Design:

If this product do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.



Related BLDC motor:

42mm Brushless DC Motor Driver, 57mm Brushless DC Motor Driver
