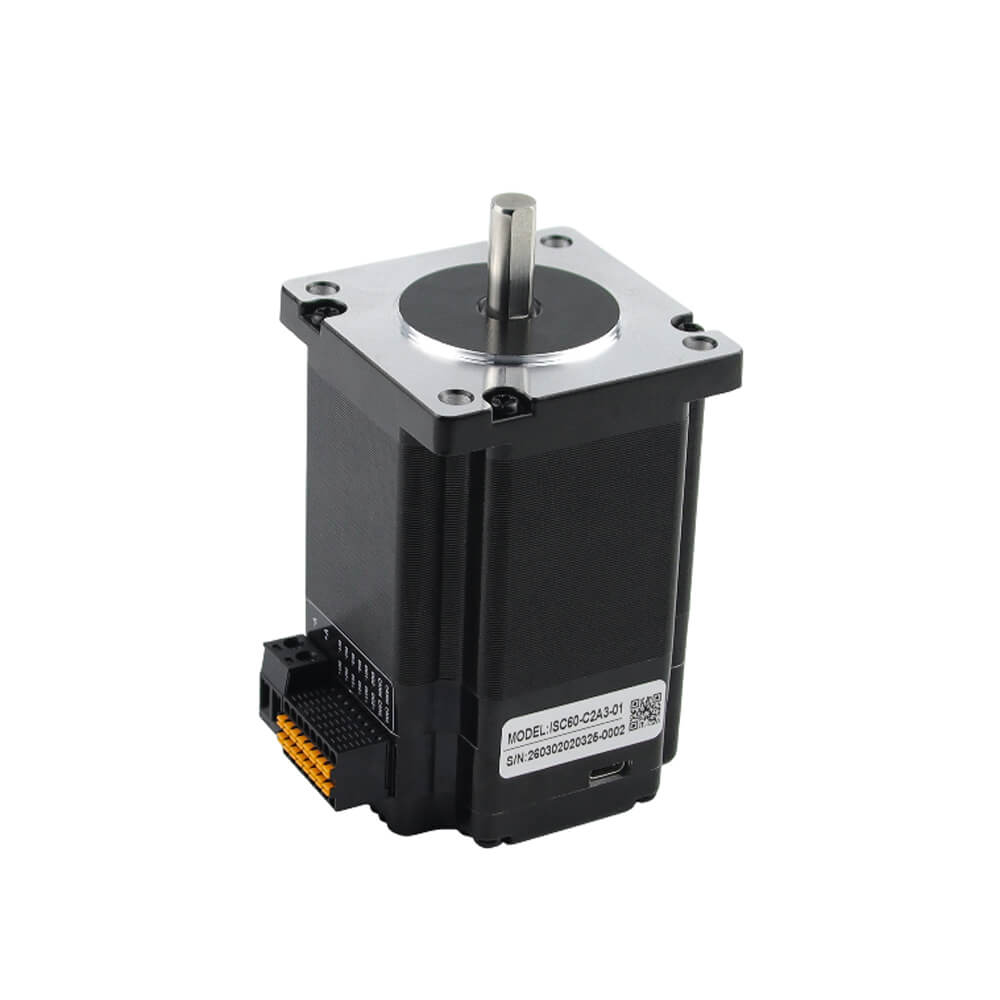

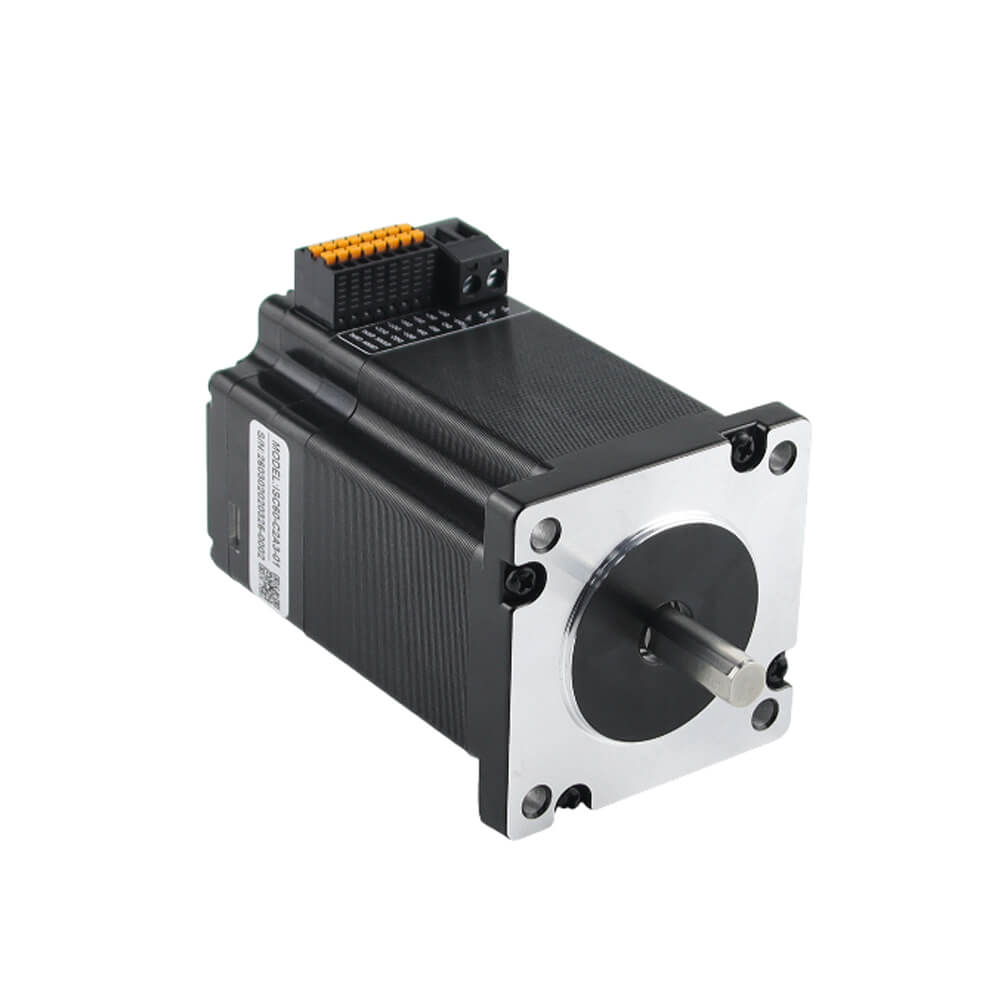

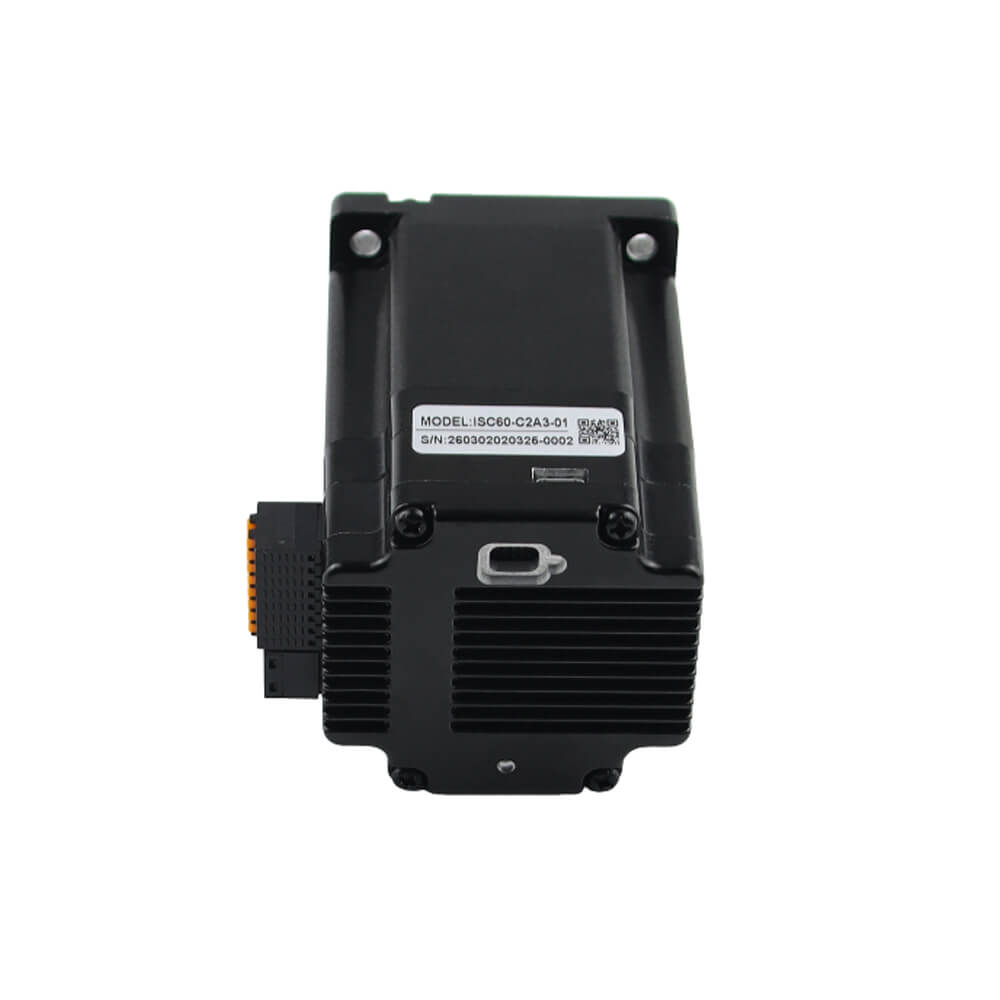

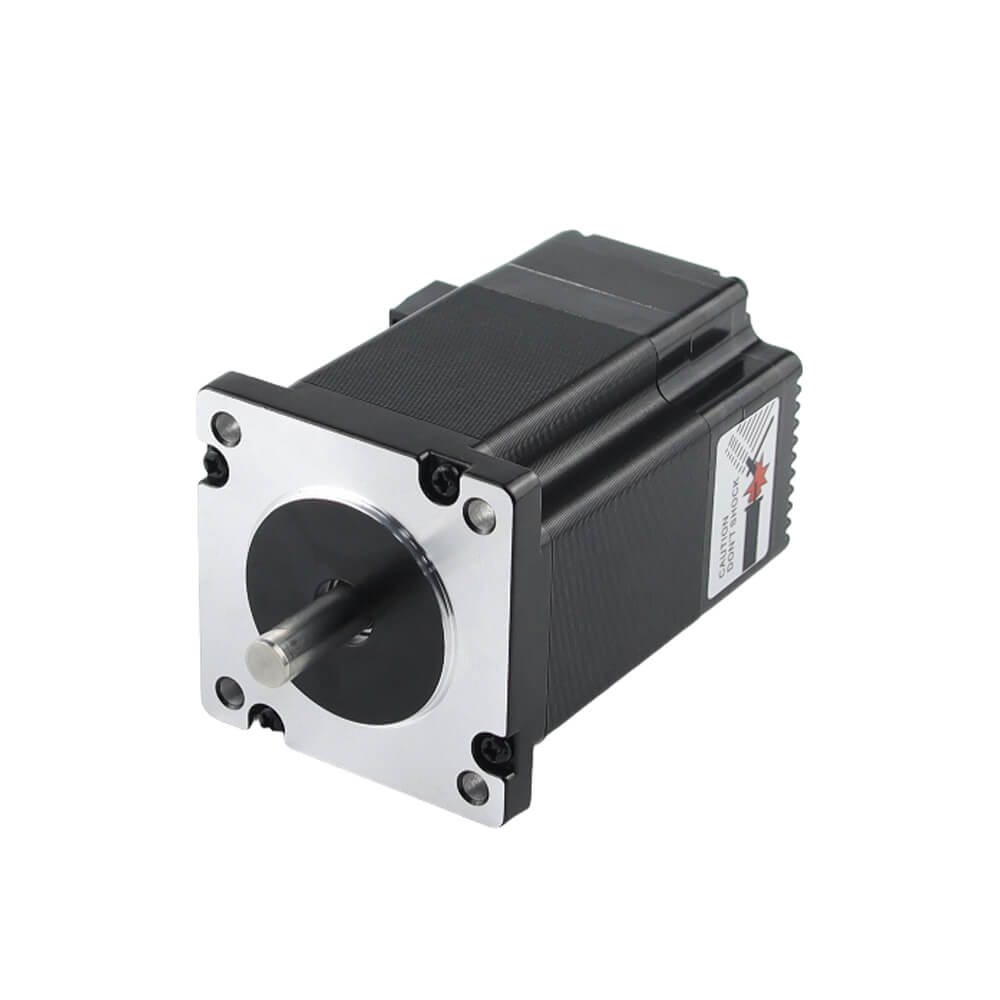

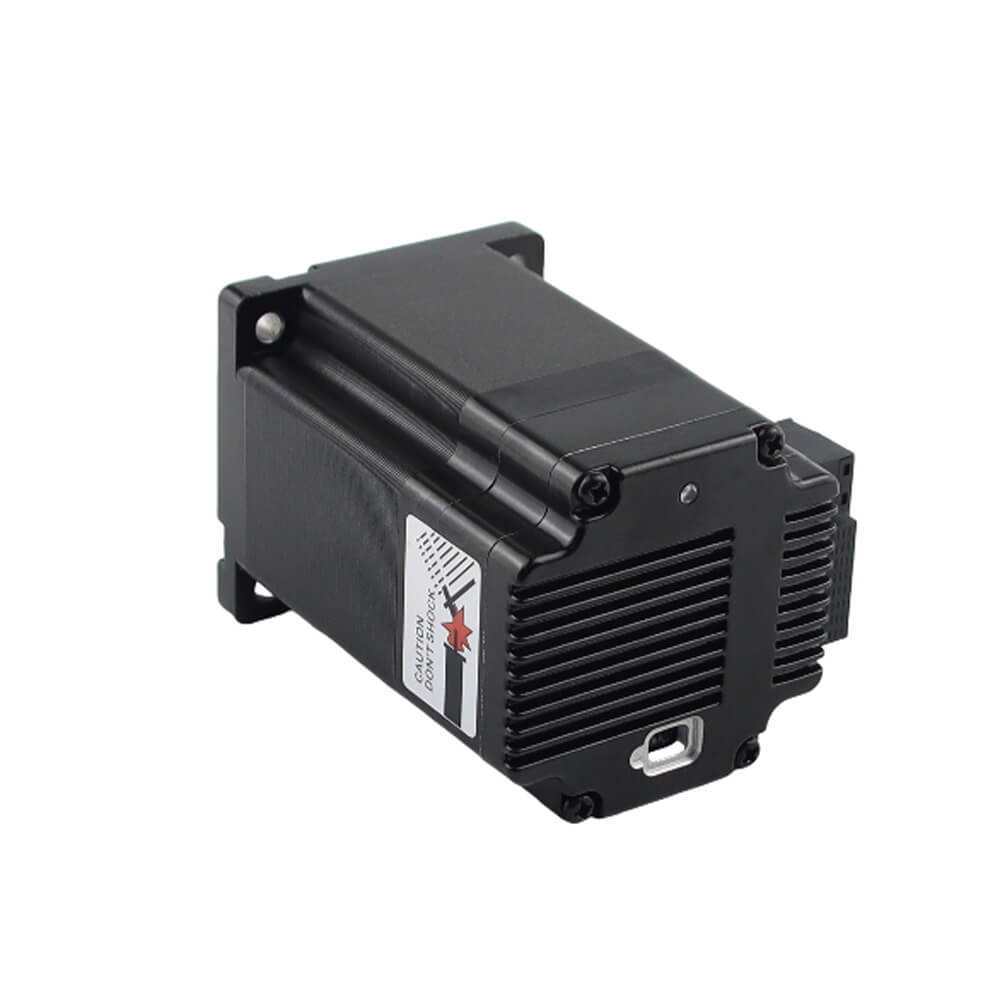

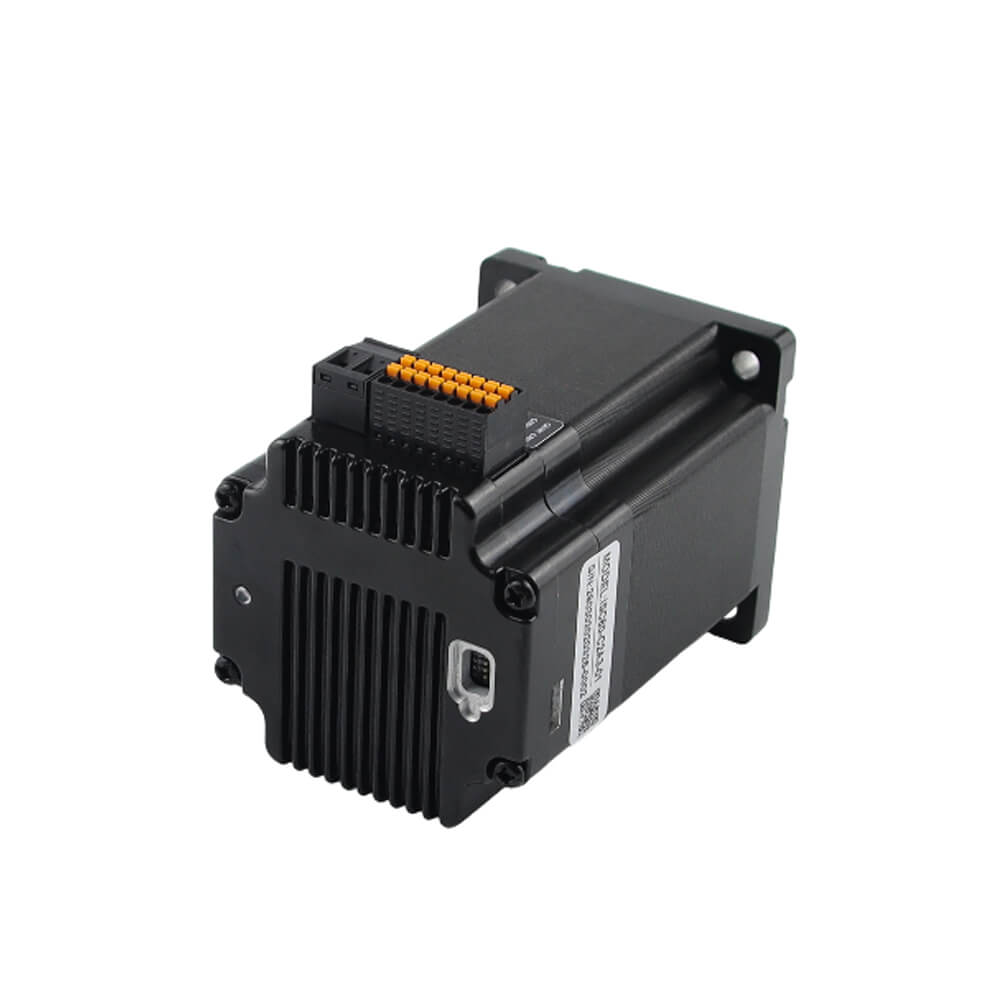

Nema 24 JKISC60-P2A3 Integrated Stepper Servo Motor 60x60x87.2mm Pulse Control 4.2A 2.0N.m with Built-in Driver

Jkongmotor nema 24 JKISC60-P2A3 60x60x87.2mm integrated closed loop stepper servo motor with pulse control 1.8Degree 4.2A 0.6Ω 1.8 mH 2.0N.m with 1000ppr / 17bit / 15bit  integrated driver. For more different integrated closed loop stepper motor requirements please contact us!!!

Differences between ISS and ISC Series:

Electrical Specifications：

• Type: Nema24 integrated closed loop stepper motor with driver

• Model Name: JKISC60-P2A3 (Pluse / Direction Control)

• Phase: 2

• Step Angle: 1.8 degree

• Current: 4.2A

• Resistance: 0.6Ω±10%(20℃)

• Inductance: 1.8mH±20%(1kHz 1V RMS)

• Holding Torque: 2.0Nm(283.22oz.in)

• Encoder: 1000ppr / 17Bit / 15Bit

• Control Method: Pulse (RS485, CANopen optional)





Physical Specifications:

• Frame Size: Nema 24(60x60mm)

• Body Length: 87.2mm

• Shaft Diameter: 8mm

• Shaft Length: 21mm





Integrated Closed Loop Stepper Motors Features:

• Cortex-M4 core high-performance 32-bit micro controller

• The highest pulse response frequency can reach 200KHz


• Built in protection function, effectively ensuring the safe use of the device


• Intelligent current regulation to reduce vibration, noise, and heat generation

• Adopting low internal resistance MOS, the heating is reduced by 30% compared to ordinary products

• Voltage range: DC12V-36V

• Integrated design with integrated drive motor, easy installation, small footprint, and simple wiring

• Equipped with anti reverse connection function


Communication method:

• Pulse type

• RS485 MOdbus RTU network type

• CANopen network type





Protection level:

Waterproof type: IP30, IP54, IP65, optional
