Bahay / Sentro ng Mga Produkto / Stepper Motor / Hybrid Stepper Motor / Nema 14 36mm JK36HM21-0404 Hybrid Stepper Motor 0.9 Degree 8.1N.cm (11.47oz.in) 35x35x21mm 0.4A 4 Wire

naglo-load

Nema 14 36mm JK36HM21-0404 Hybrid Stepper Motor 0.9 Degree 8.1N.cm (11.47oz.in) 35x35x21mm 0.4A 4 Wire

Uri: Nema14 2Phase Bipolar Stepper Motor

Kasalukuyan: 0.4A

Paglaban: 9Ω

Na-rate na Torque: 8.1N.cm(11.47oz.in)

  • JK36HM21-0404

  • JKONGMOTOR

  • Buksan ang Loop Motors

  • 4 na mga wire

  • 2 yugto

  • 0.9°

  • 10 Pcs

Availability:
Magtanong

Jkongmotor Nema 14 bipolar stepping motor (JK36HM21-0404) na may step angle 0.9deg at laki  35x35x21mm. Mayroon itong 4 na wire, 0.4A, 9 Ω 5mH at  may hawak na torque  na 8.1N.cm(11.47oz.in) . Para sa higit pang iba't ibang mga kinakailangan sa stepper motor (gaya ng gearbox, preno, encoder, o integrated motor), mangyaring makipag-ugnayan sa amin!!!


Mga Detalye ng Elektrisidad:

  • Uri: Nema14 bipolar stepper motor

  • Pangalan ng Modelo: JK36HM21-0404

  • Yugto: 2

  • Anggulo ng Hakbang: 0.9 degree

  • Kasalukuyan: 0.4A

  • Paglaban:  9Ω±0.1(20℃)

  • Inductance: 5mH±20%(1kHz 1V RMS)

  • May hawak na Torque: 8.1 N.cm (11.47 oz.in)

  • Klase ng Pagkakabukod: B(130°); 80K Max.

  • Mga Opsyonal na Bahagi: Gearbox, Encoder, Preno, Pinagsamang Driver...


Pisikal na Pagtutukoy:

  • Laki ng Frame: Nema 14 ( 36 x 36mm)

  • Haba ng Katawan: 21mm

  • Diameter ng baras: 5mm

  • Haba ng Shaft: 15mm


Koneksyon ng mga wire:

A+
 a- B+ B-
Itim Berde Pula Asul


Nema 14 Stepper Motor Electrical Specification:

Detalye ng Elektrisidad
Uri ng Produkto
 / Nema 14 Bipolar Stepper Motor
Pangalan ng Modelo / JK36HM21-0404
Phase yugto 2
Hakbang Anggulo ° 0.9
Kasalukuyan A 0.4
Paglaban Ω 9
Inductance mH 5
Na-rate na Torque(Nm) N.cm 8.1
May hawak na Torque(oz.in) oz.in 11.47
Bipolar/Unipolar / Bipolar
Klase ng Insulasyon / B
Detent Torque g.cm 125
Rotor Inertia g.cm2 7


Pisikal na Pagtutukoy:

Pisikal na Pagtutukoy
Laki ng Frame mm Nema 14 (36 x 36)
Uri ng Output Shaft / Round Shaft
Diameter ng baras mm 5
Haba ng baras mm 15
Haba ng katawan
 mm 21
Single Shaft/Dual Shaft / Single Shaft
Bilang ng mga Lead / 4
Leads Length mm 300
Timbang Kg 0.13


Dimensyon ng Nema 14 Stepper Motor:



36mm round steper motor

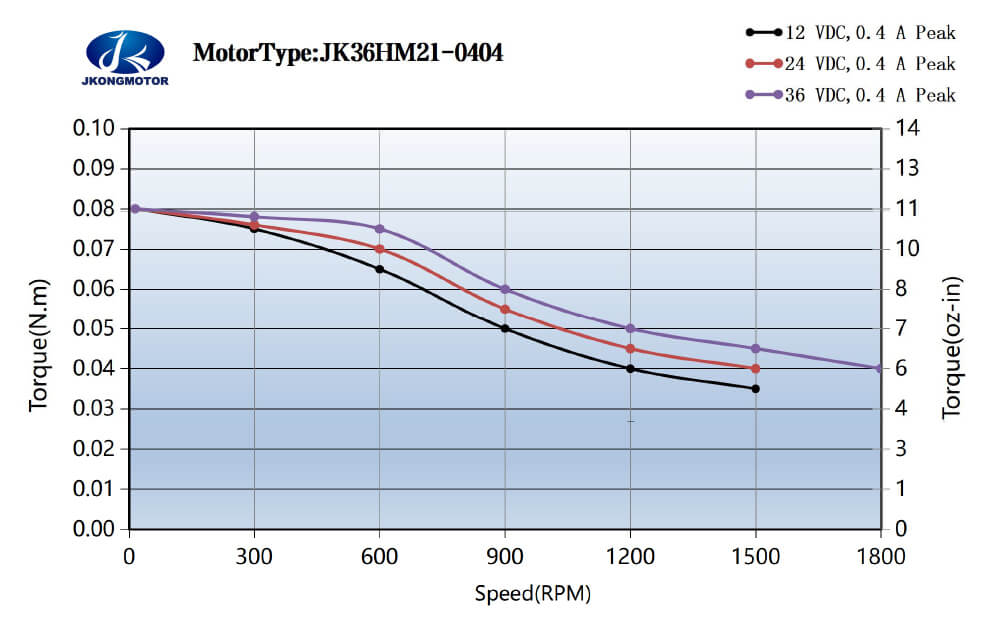

Mga operating torque graph:

JK36HM21-0404 标准运行力矩图

Mga Opsyonal na Bahagi ng Hybrid Stepper Motor:

Mga Konektor, Gearbox, Encoder, Preno, Pinagsamang Driver...


Customized na Serbisyo:

步进电机金属带轮

Mga Metal Pulley

步进电机塑料带轮

Plastic Pulley

步进电机齿轮

Mga gamit

步进电机定制

Pin ng baras

步进电机厂家

Threaded Shaft

步进电机直销

Panel Mount


步进电机工厂直销

Hollow Shaft

步进电机厂家直销

Threaded Shaft

步进电机促销

Panel Mount

步进电机工厂

Single Flat

步进电机批发

Dual Flat

步进电机直销厂家

Key Shaft


Na-customize na Serbisyo ng Hybrid Stepper Motor:

tagagawa ng stepper motor

Mga kable

42mm gearbox stepper motor tagagawa

Mga flange

86mm tagagawa ng stepper motor

baras

tagagawa ng china stepper motor

Lead Screw Rod

tagagawa ng oem hybrid stepper motor

Mga encoder


stepper motor china tagagawa

Mga preno

tagagawa ng stepper motor sa china

Mga gearbox

tagagawa ng driver ng stepper motor

Mga Motor Kit

Tagagawa ng 3d stepper motor

Pinagsamang mga Driver

Tagagawa ng 12v stepper motor

Mas Naka-customize


2D Stepper Motor Drawings:


Angkop na Manwal sa Pagmamaneho:

JK-DM420 Stepper Motor Driver

JK-0220 Stepper Motor Driver
