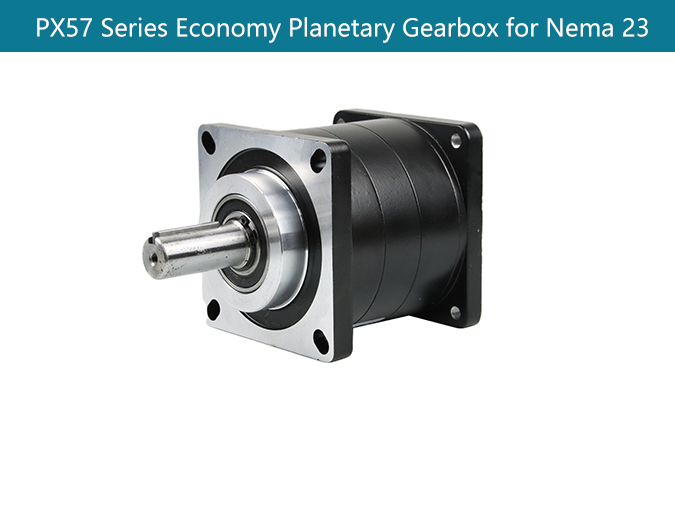

Model: Jkongmotor PX57 Series Economy Planetary Gearbox for Nema 23 Stepper Motor
Planetary gears are often used when space and weight are an issue, but a large amount of speed reduction and torque are needed. This requirement applies to a variety of industries, including tractors and construction equipment where a large amount of torque is needed to drive the wheels.
A three-stage gearbox is obtained by means of increasing the length of the ring gear and adding another planet stage. A transmission ratio of 100:1 is obtained using individual ratios of 5:1, 5:1 and 4:1.
Planetary gear motors are normally made of steel or brass. This style of the gear motors has a number of gears and teeth that share load, so there is less concern about wear and stress, making it easier to achieve massive volumes of power transfer without damaging the gears.
General Specification of 57mm Economy Planetary Gearbox Reducer:
| Number of gear trains | 1 | 2 | 3 |
| Reduction ratio | 4/5/6/10 | 16/20/24/30/36 | 64/96/144/216 |
| Length (mm) | 76 | 90 | 104 |
| Rated load (N.m) | 15 | 30 | 40 |
| Max Load (N.m) | 25 | 40 | 50 |
| Efficiency (%) | 95 | 90 | 85 |
| Backlash at no-load | ≤15 | ≤30 | ≤50 |
| Rated speed (Rpm) | ≤3000 | ≤3000 | ≤3000 |
| Degree of protection (IP) | 65 | 65 | 65 |
| Weight (kg) | 0.9 | 1.1 | 1.4 |
| Noise (DB) | ≤60 | ≤60 | ≤60 |
| Working hours (H) | ≈20000 | ≈20000 | ≈20000 |
Planetary Gearbox Drawing:
Product Parameters:
Product Type: Small Planetary Gearbox Reducer for nema 23 stepper motor
Size：57x57mm
Place of Origin：china
Minimum order quantity：10pcs
Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...
Feature summary: Low Inertia,Quick Feedback; High Torque,High Efficiency; Small Vibration,Low Noise
Packing：The sample is packed in carton,the batch with plastic pallet
Delivery time：Standard product: 7-10days
Customized product: 25-30days
Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...
APPLICATION：Medical equipment: medical pumps, stirring instruments, peristaltic pumps, biopharmaceutical equipment. Industrial equipment: winding machines, printing machines, robots, grinding, cutting, drilling, automatic conveying systems, automatic positioning systems, level control systems, electric actuators, electric valves, vending machines.
Other Customized Gearbox Design:
Customized Design:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Customized Shaft Types:
Matched Stepper Motors:
Stepper Motor Nema 23 Model: 1.8 degree 57BYGH stepper motor / 0.9 degree hybrid stepper motor
