JKM Nema23 HSP Geared Stepper Motor
    • JKM Nema23 HSP Geared Stepper Motor
    • JKM Nema23 HSP Geared Stepper Motor
    • JKM Nema23 HSP Geared Stepper Motor
    • JKM Nema23 HSP Geared Stepper Motor
    • JKM Nema23 HSP Geared Stepper Motor
    • JKM Nema23 HSP Geared Stepper Motor
Product Details

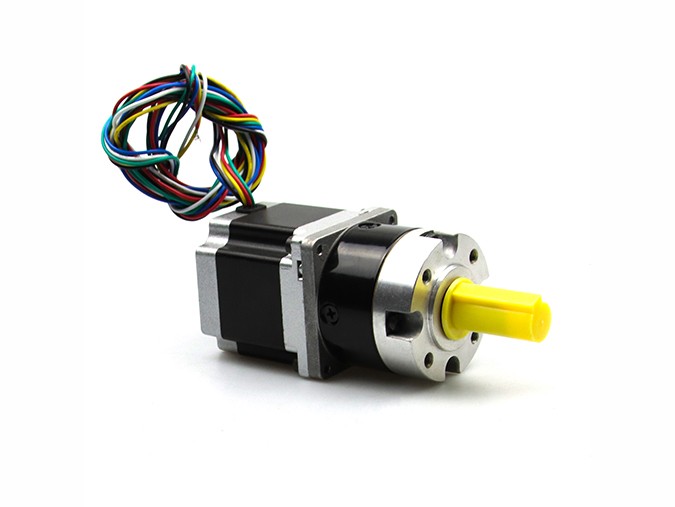

Model: NEMA23 HSP Planetary Gearbox Stepper Motor-JK57HSP(1.8 degree)


General Specification:

Housing Material

Metal

Bearing at Output

Ball Bearings

Max.Radial Load(12mm from flange)

 ≤250N

Max.Shaft Axial Load

        ≤100N

Radial Play of Shaft (near to Flange)

        ≤0.08m

Axial Play of Shaft

       ≤0.4mm

Backlash at No-load

                 ≤2.5°




Product Parameters:

Product Type: NEMA23 HSP Planetary Gearbox Stepper Motor

Size:57x57mm

Feature summary:Low Inertia、Low NoiseHigh Torque

Place of Origin:china

Minimum order quantity:10pcs

Material Science:stator, rotor, stainless steel shaft, copper wire, magnetic steel...

Applicatin Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery,  Lighting, ect.

Packing:The sample is packed in carton,the batch with plastic pallet

Delivery time:Standard product: 7-10days

Customized product: 25-30days

Transaction mode:EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...





Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

( °)

(L1)mm

A

Ω

mH

N.m

No.

g.cm

g.cm2

Kg

JK57HS41-2804

1.8

41

2.8

0.7

1.4

0.55

4

250

150

0.47

JK57HS51-2804

1.8

51

2.8

0.83

2.2

1.01

4

300

230

0.59

JK57HS56-2804

1.8

56

2.8

0.9

2.5

1.2

4

350

280

0.68

JK57HS64-2804

1.8

64

2.8

0.8

2.3

1

4

400

300

0.75

JK57HS76-2804

1.8

76

2.8

1.1

3.6

1.89

4

600

440

1.1

JK57HS82-3004

1.8

82

3

1.2

4

2.1

4

1000

600

1.2

JK57HS100-4204

1.8

100

4.2

0.75

3

3

4

1100

700

1.3

JK57HS112-4204

1.8

112

4.2

0.9

3.8

3.1

4

1200

800

1.4

Note: Above only for representative products, products of special request can be made according to the customer request.



Electrical Specification:  57HSP Planetary Gearbox Specifications

Reduction ratio

3.6

4.25

13

15

18

23

47

55

65

77

121

154

187

220

260

307

Number of gear trains

1

2

3

4

L2  Length: (mm)

37.8

49.5

60.8

71.9

Max.rated torque: (N.m)

3

12

24

30

Short time permissible torque: (N.m)

9

36

72

90

Efficiency: ( %)

90%

      81%

73%

66%

Weight: (g)

489

681

871

1066




Different Gearbox Types:

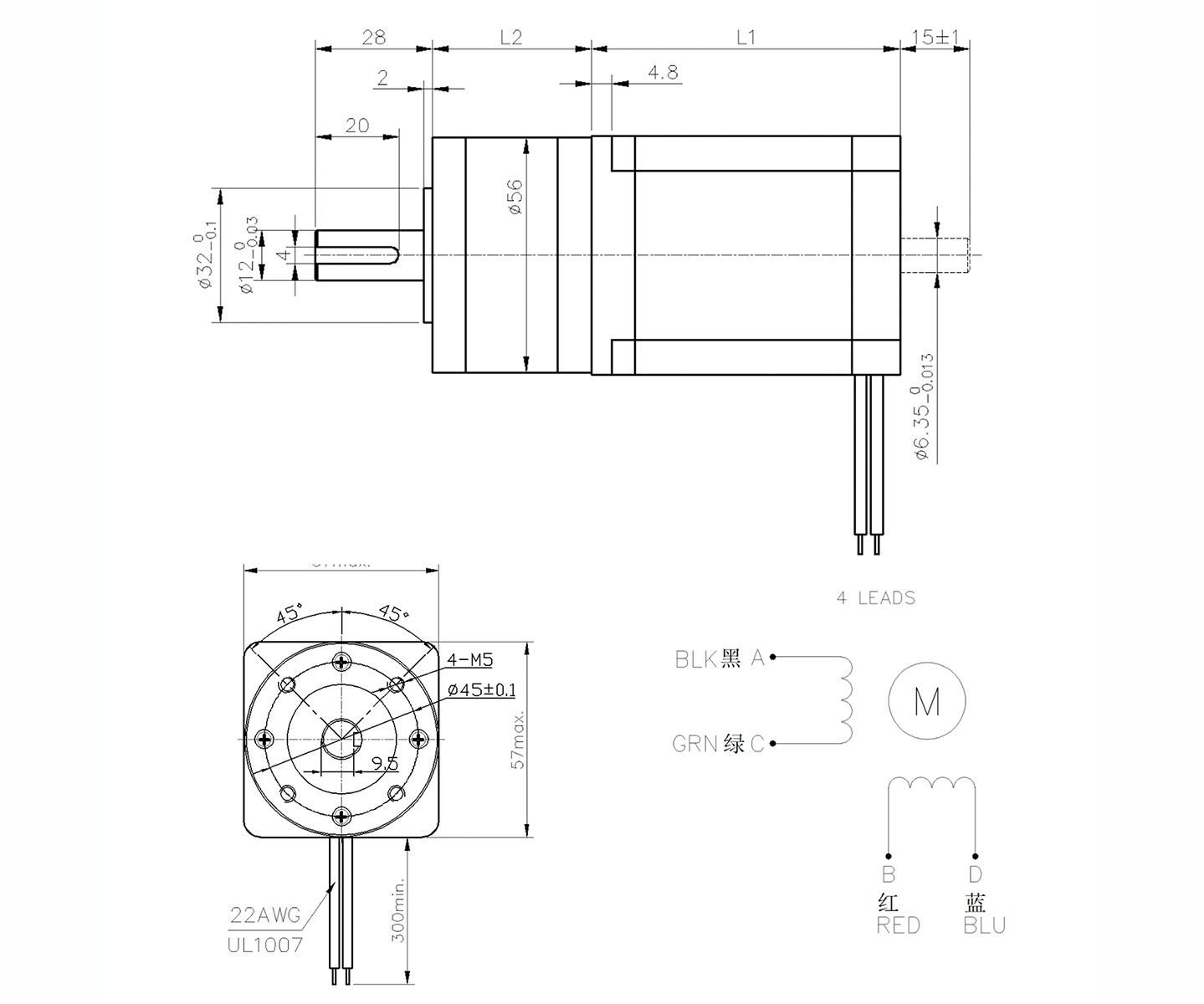

Product Dimensions: (Unit=mm)

nema 23 stepper motor




Customized Design:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

hybrid stepper motor



Customized Shaft Types:

nema11 stepper motor

stepper motor shaft

Inquiry Now
