Model: 2 Phase Hybrid Nema 17 External Linear Stepper Motor with T-type Lead Screw JK42HST(1.8 degree)
Due to simple magnetic properties and no mechanical conversion, a linear motor offers precise and fast linear force. Stepper motors, on the other hand, have quite complex functionality due to the involvement of mechanical conversion and, most importantly, the introduction of multiple steps in the process.
A stepper motor is a device used for precise motion control, while a linear actuator is a linear motion device used for simple linear motion applications. They differ in construction, feedback, and force and speed characteristics, among other factors.
Jkongmotor Products range of 42mm (NEMA17) Hybrid stepper motors are ideal for applications where size and cost is an important factor. JKONGMOTOR's NEMA 17 stepepr motors can be supplied with a variety of housings, single or double shaft options, winding configurations and IP rating options, JKONGMOTOR can also provide other stepper motor or bldc motor customized, such as brake, encoder, gearbox or integrated step motor...
Linear Stepper Motors: These stepper motors with linear motion are open-loop systems with a base and a slider. They provide high speeds and resolutions. The sliders are also called forcers which contain a permanent magnet, teeth, and motor windings.
Linear motors are commonly used for actuating high performance industrial automation equipment. Their advantage, unlike any other commonly used actuator, such as a ball screw, timing belt, or rack and pinion, is that they provide any combination of high precision, high velocity, high force and long travel.
Features:
Product Name: Nema 17 Linear Stepper Motor
Size: 42x42mm Step Motor
Holding Torque: 2.6kg.cm ~ 7.3kg.cm
Leads No.: 4leads
Motor Length: 34mm / 40mm / 48mm / 60mm
Product Type: 2 Phase Hybrid Stepping Motor
Customized Parts: Connector, Gearbox, Encoder, Brake, Integrated driver...
General Specifiction:
Item | Specifications |
Step Angle | 1.8° |
Temperature Rise | 80℃max |
Ambient Temperature | -20℃~+50℃ |
Insulation Resistance | 100 MΩ Min. ,500VDC |
Dielectric Strength | 500VAC for 1minute |
Shaft Radial Play | 0.02Max. (450g-load) |
Shaft Axial Play | 0.08Max. (450g-load) |
Max. radial force | 28N (20mm from the flange) |
Max. axial force | 10N |
Electrical Specification:
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Rotor Interia | Mass |
| ( °) | (L)mm | A | Ω | mH | kg.cm | No. | g.cm2 | kg | |
| JK42HST34-1334 | 1.8 | 34 | 1.33 | 2.1 | 2.5 | 2.6 | 4 | 34 | 0.22 |
| JK42HST40-1704 | 1.8 | 40 | 1.7 | 1.5 | 2.3 | 4.2 | 4 | 54 | 0.28 |
| JK42HST48-1684 | 1.8 | 48 | 1.68 | 1.65 | 2.8 | 5.5 | 4 | 68 | 0.38 |
| JK42HST60-1704 | 1.8 | 60 | 1.7 | 3 | 6.2 | 7.3 | 4 | 103 | 0.55 |
Note: Above only for representative products, products of special request can be made according to the customer request.
Screw Road Specification:
| Screw Diameter | Screw Lead | Screw Pitch | Travel per step | Screw Diameter | Screw Lead | Screw Pitch | Travel per step |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
| Tr5 | 1 | 1 | 0.005 | Tr8 | 8 | 2 | 0.04 |
| 2 | 1 | 0.01 | 10 | 2 | 0.05 | ||
| Tr6 | 2 | 1 | 0.01 | 12 | 2 | 0.06 | |
| 4 | 1 | 0.02 | 14 | 2 | 0.07 | ||
| 6 | 1 | 0.03 | Tr10 | 2 | 2 | 0.01 | |
| 12 | 1.5 | 0.06 | 3 | 1.5 | 0.015 | ||
| Tr8 | 1 | 1 | 0.005 | 4 | 2 | 0.02 | |
| 2 | 2 | 0.01 | 8 | 2 | 0.04 | ||
| 3 | 1.5 | 0.015 | 10 | 2 | 0.05 | ||
| 4 | 2 | 0.02 | 12 | 2 | 0.06 |
Note: Above only for representative products, products of special request can be made according to the customer request.
Feature summary：
Feature summary：Low Inertia, Quick Response; High Torque, High Efficiency; Low Vibration, Low Noise.
Minimum order quantity：10pcs
Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...
Applicatin Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Lighting, ect.
Packing：The sample is packed in carton,the batch with plastic pallet
Delivery time：Standard product: 7-10days
Customized product: 25-30days
Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...
Product Dimensions: (Unit=mm)

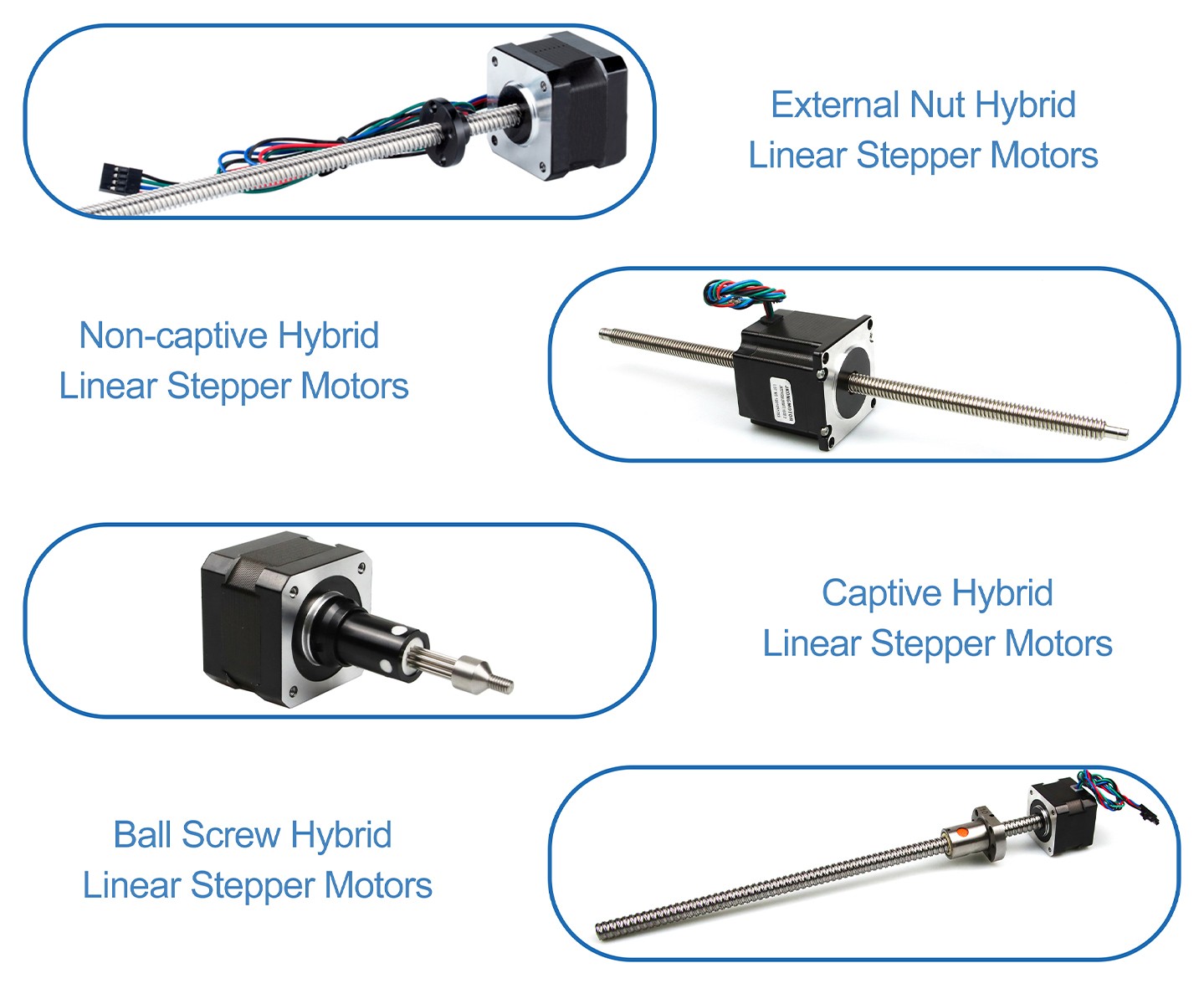

Different Types:
Feature summary：High torque; High stability; Easy to plug...
Customized Design:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Customized Shaft Types:
Matched Drivers:
2 Phase Stepper Motor driver Model: JK0220 / DM420
