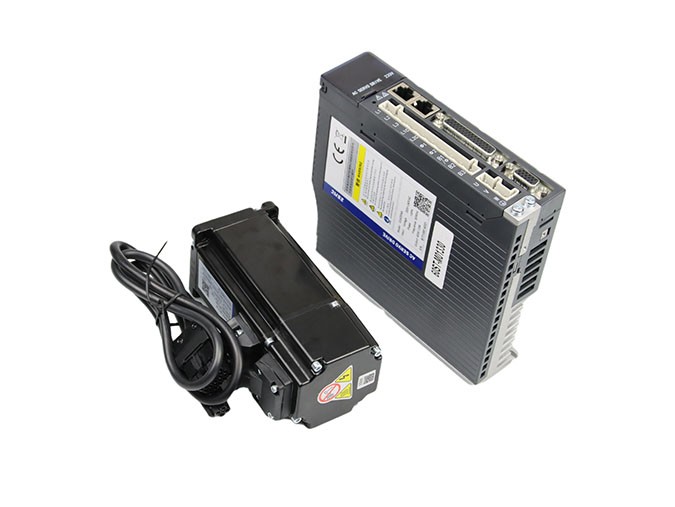

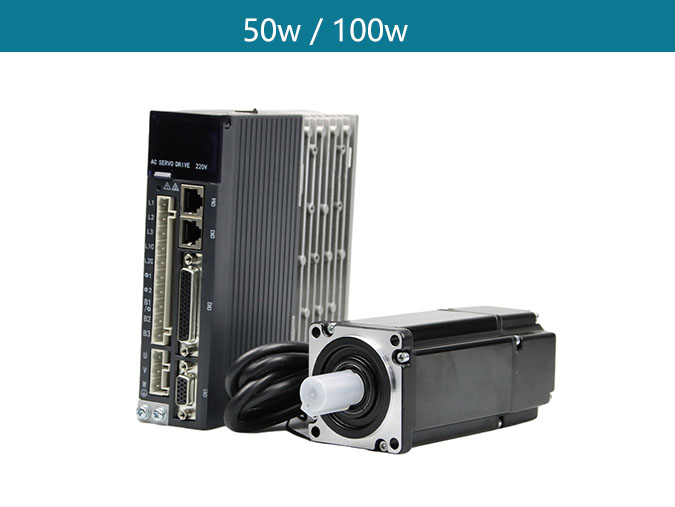

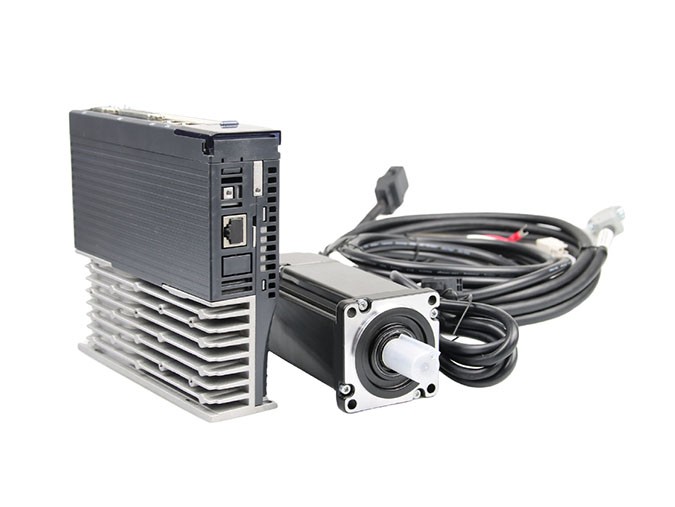

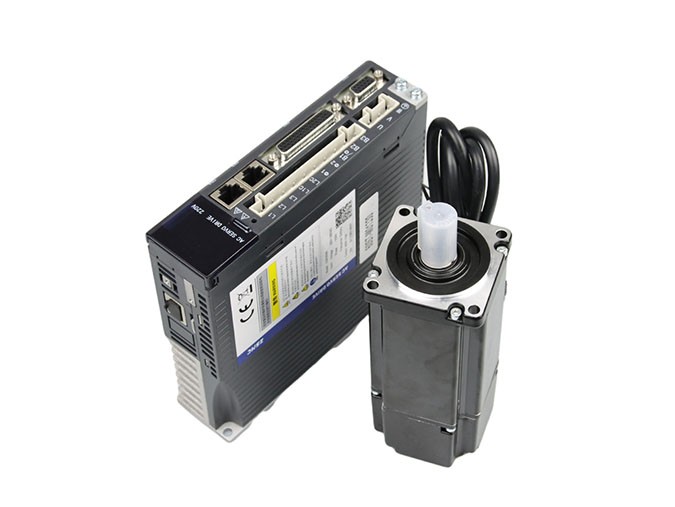

40ST AC Servo Motor Details:


Type: 40ST-M00130 / 40ST-M00330 AC servo motor

Rated Power: 50W / 100W

Rated voltage: 220V

Rated current: 0.4A / 0.6A

Rated speed :3000RPM

Rated torque: 0.16N.m / 0.32N.m

Encoder Line Number: 2500PPR

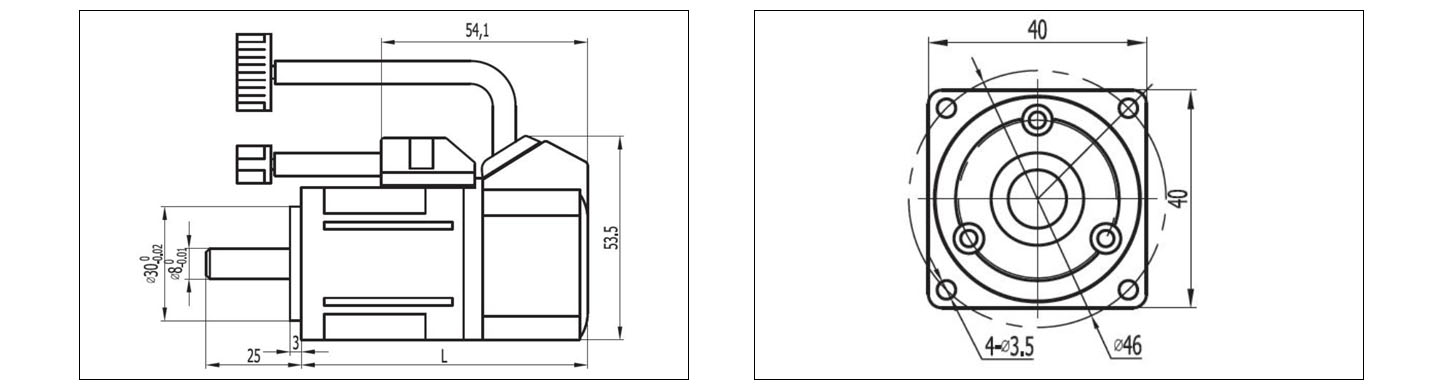

Installation dimensions:

Motor type40ST - M0013040ST - M00330
L(mm)(Without brake)7590
L(mm)(With permanent magnet brake)109124



40mm AC Servo Motor Parameters:

Motor type40ST - M0013040ST - M00330
Rated power(W)50100
Rated voltage(V)220220
Rated current(A)0.40.6
Rated speed(rpm)30003000
Rated torque(N.m)0.160.32
Peak torque(N.m)0.320.64
Voltage constant(V/Krpm)36.832.8
Torque coefficient(N.m/A)0.40.53
Rotor inertia(Kg.m²)0.025×10-40.051×10-4
Line-Line resistace (Ω)10834
Line-Line inductance(mH)10840
Electrical time constant(ms)1.01.18
Weight(Kg)0.320.47
Insulation classClass B





40ST AC Servo Motor Dimensions:

3 PHASE AC SERVO MOTOR




AC Servo Motor Features:

1、Design scheme: adopt a new electromagnetic design scheme, lower temperature rise, small motor inertia


2、Application areas: robotics, 3C and other consumer electronics industries




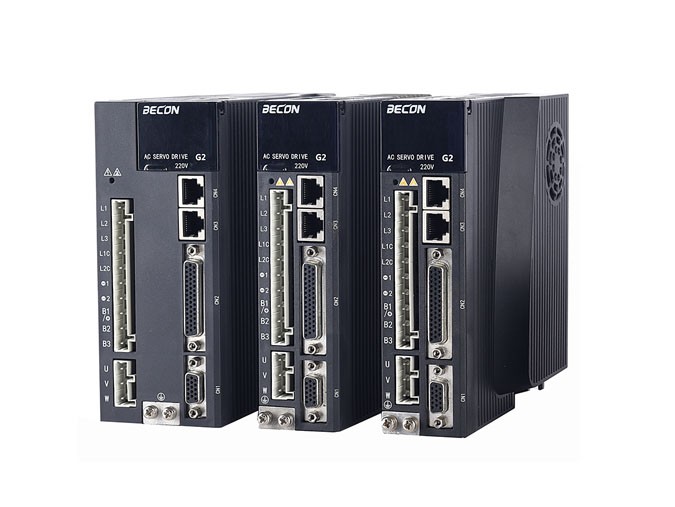

Related Servo Motor Driver Parameters:


1、Input voltage: Single-phase or three-phase 220~ 380VAC ( -15~+10%), 50~60HZ


2、Control mode: Position control, speed control, torque control


3、Type of encoder: 2500-line incremental type photoelectric encoder ,23-bit absolute value encoder


4、Communication method: RS485, RS232, CANopen, standard MODBUS communication


3、Input  and  output  points:  IO  programmable  supports  positive  and  negative  logic  settings  and  function  of  relocation, 4-channel   input   supports   16   functions   configuration,   3-channel   output   supports   12   functions configuration


4、Monitoring capabilities: Provide 16 states monitor like location, speed, current, voltage, input and output



Rated 220V output power reference table:

Code040815223050
Output power0.4kW0.75kW1.5kW2.2kW3kW5kW


Rated 380V output power reference table:

Code1525355575
Output power1.5kW2.5kW3.5kW5.5kW7.5kW



Servo Motor Driver Dimensions:

ac servo motor driver



ac servo motor 1kw


Servo Motor Driver Features:

1、Small in volume and compact in size, which greatly saves the installation space


2、Strong  internal  position  model can plan  multi-path  in  continuous  operation, so  as  to  achieve  rich  motion  control function; support 32 sets of data programming at most, each of which can set pulse numbers or angle according to needs, and can set the speed , acceleration, deceleration and emergent deceleration


3、Automatically measure the mechanical properties of load inertia, configure optimal gain, reduce the commissioning time of the system


4、Make  analysis  of  mechanical  resonance  frequency,  configure  2  sets  of  notch  filters,  which  can  adjust  frequency (50~ 5000Hz) and notch depth, effectively overcome low frequency resonance and vibration of mechanical end, and can set vibration frequency (1~100Hz) and vibration damping


5、The function of friction torque compensation can reduce the effect of static friction force during mechanical reversal, and improve tracking performance of instructions operating at low speed


6、Support  debugging   software,  able  to   make   analysis   of  mechanical  properties,   set  parameters   and  conduct surveillance, simple and intuitive to operate.




Customized Design:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
