Product Details

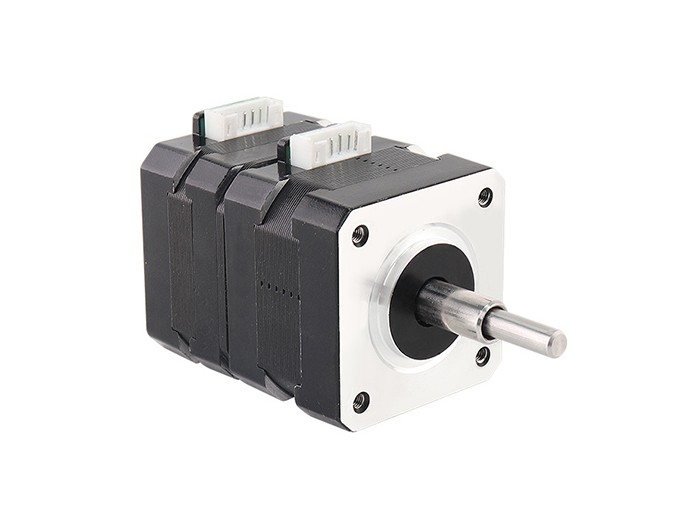

Model: Nema 17 Doubld Layer Stacked Stepping Motor Hybrid / Biplor Stepper Motor 42x42mm for XYZ 3D Printer -JK42HS(1.8 degree)

Jkongmotor 42 Micro Stepping Motor Double Layer Stacked 1.6A 270mN.m Stepper Motor Forward Reverse Automatic for CNC


Product Features:

Product Name: 1.8degree 42mm Nema 17 Double Layer Stacked Stepper Motor

Model Name: 17HS4401 42CD55-0805 Double Layer Stacked Motor

Size: 42x42mm Stepping Motor

Current / Phase: 1.6A

Holding Torque: 270mN.m

Leads No.: 4-leads

Motor Length: 55mm

Product Type: 2 Phase Biplor Stepper Motor

Type: 3d Printer Step Motor / Hybrid Stepping Motor


General Specification:

Item

Specifications

Step Angle

1.8°

Temperature Rise

80℃max

Ambient Temperature

-20℃~+50℃

Insulation Resistance

100 MΩ Min. ,500VDC

Dielectric Strength

500VAC for 1minute

Shaft Radial Play

0.02Max. (450g-load)

Shaft Axial Play

0.08Max. (450g-load)

Max. radial force

28N (20mm from the flange)

Max. axial force

10N


Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

°)

(L)mm

A

Ω

mH

kg.cm

No.

g.cm

g.cm2

Kg

JK42HS25-0404

1.8

25

0.4

24

36

1.8

4

75

20

0.15

JK42HS28-0504

1.8

28

0.5

20

21

1.5

4

85

24

0.22

JK42HS34-1334

1.8

34

1.33

2.1

2.5

2.2

4

120

34

0.22

JK42HS34-0406

1.8

34

0.4

24

15

1.6

6

120

34

0.22

JK42HS34-0956

1.8

34

0.95

4.2

2.5

1.6

6

120

34

0.22

JK42HS40-0406

1.8

40

0.4

30

30

2.6

6

150

54

0.28

JK42HS40-1684

1.8

40

1.68

1.65

3.2

3.6

4

150

54

0.28

JK42HS40-1206

1.8

40

1.2

3

2.7

2.9

6

150

54

0.28

JK42HS48-0406

1.8

48

0.4

30

25

3.1

6

260

68

0.35

JK42HS48-1684

1.8

48

1.68

1.65

2.8

4.4

4

260

68

0.35

JK42HS48-1206

1.8

48

1.2

3.3

2.8

3.17

6

260

68

0.35

JK42HS60-0406

1.8

60

0.4

30

39

6.5

6

280

102

0.5

JK42HS60-1704

1.8

60

1.7

3

6.2

7.3

4

280

102

0.5

JK42HS60-1206

1.8

60

1.2

6

7

5.6

6

280

102

0.5

Note: Above only for representative products, products of special request can be made according to the customer request.


Product Parameters:

Feature summary:Low Inertia、Low NoiseHigh Torque

Place of Origin:china

Minimum order quantity:10pcs

Material Science:stator, rotor, stainless steel shaft, copper wire, magnetic steel...

Applicatin Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery,  Lighting, ect.

Packing:The sample is packed in carton,the batch with plastic pallet

Delivery time:Standard product: 7-10days

Customized product: 25-30days

Transaction mode:EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...


Product Dimensions: (Unit=mm)

nema 17 stepper motor

Linear Stepper Motors:

captive linear stepper motor


Customized Design:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

hybrid stepper motor


Customized Shaft Types:

nema11 stepper motor

stepper motor shaft


Matched Drivers:

2 Phase Stepper Motor driver Model:  JK0220 / DM420
