Home / Products Center / Stepper Motor / Hybrid Stepper Motor / Nema 24 JK60HS100-2804 Hybrid Stepper Motor 1.8 Graduum 4N.m (566.45oz.in)

loading

Nema 24 JK60HS100-2804 Hybrid Stepper Motor 1.8 Graduum 4N.m (566.45oz.in)

Type: Nema24 Hybrid Bipolar Stepper Motor

Current: 2.8A

Resistentia: 1.6Ω

Rated Torque: 4N.m(566.45oz.in)

  • JK60HS100-2804

  • JKONGMOTOR

  • Open Loop Motors

  • Nema24 (60mm)

  • 4wires

  • 2 phase

  • 1.8°

  • 10 Pcs

Availability:
inquire

Jkongmotor Nema 24 bipolaris hybrida gradiens motor (JK60HS100-2804) cum angulo gradus 1.8deg et magnitudine  60x60x100mm. Fila habet 4 , 2.8A, 1.6 Ω 6.4mH et  cum tenens torques 4N.m (566.45oz.in) . Pro motoribus multis requisitis (ut gearbox, confregit, encoder vel integrata motores), nos tange!


Electrical Specifications

  • Type: Nema24 bipolar hybrid stepper motor

  • Exemplar Nomen: JK60HS100-2804

  • Phase: 2

  • Gradus Angulus 1.8 gradus

  • Current: 2.8A

  • Resistentia: 1.6 Ω±0.1(20℃)

  • Induction: 6.4mH±20% (1kHz 1V RMS)

  • Tenens Torque: 4 N.cm ( 566.45oz.in)

  • Insulatio Classis: B (130°); 80K Max.

  • Partes libitum: Gearbox, Encoder, Brake, Coegi Integrated...


Specificationes physicae:

  • Frame Size: Nema 24 (60 x 60mm)

  • Corpus Longitudo: 100mm

  • Shaft Diameter: 8mm

  • Hastile Longitudo: 24mm


Fila Connection:

A+
 A- B+ B-
Niger Viridis Red Blue


Nema 24 Stepper Motor Electrical Specification:

Electrical Specification
Product Type
 / Nema 24 Bipolar Hybrid Stepper Motor
Nomen exemplar / JK60HS100-2804
Phase tempus 2
Gradus Anglus ° 1.8
Current A 2.8
Resistentia Ω 1.6
Inductione mH* 6.4
Rated Torque (Nm) Nm 4
Tenens Torque (oz.in) oz.in 566.45
Bipolar/Unipolar / Bipolar
Insulatio Classis / B
Detent Torque g.cm 1100
Rotor Inertia g.cm2 980


Nema 24 Physica Specificatio:

Corporalis Specification
Artus Size mm Nema 24 (60 x 60)
Output Shaft Type / D-cut Shaft
Shaft Diameter mm 8
hastile Longitudo mm 24
Corpus Longitudo
 mm 100
Una Shaft / Dual Shaft / una Shaft
No. of Leads / 4
Ducit Longitudo mm 300
Pondus Kg 1.7

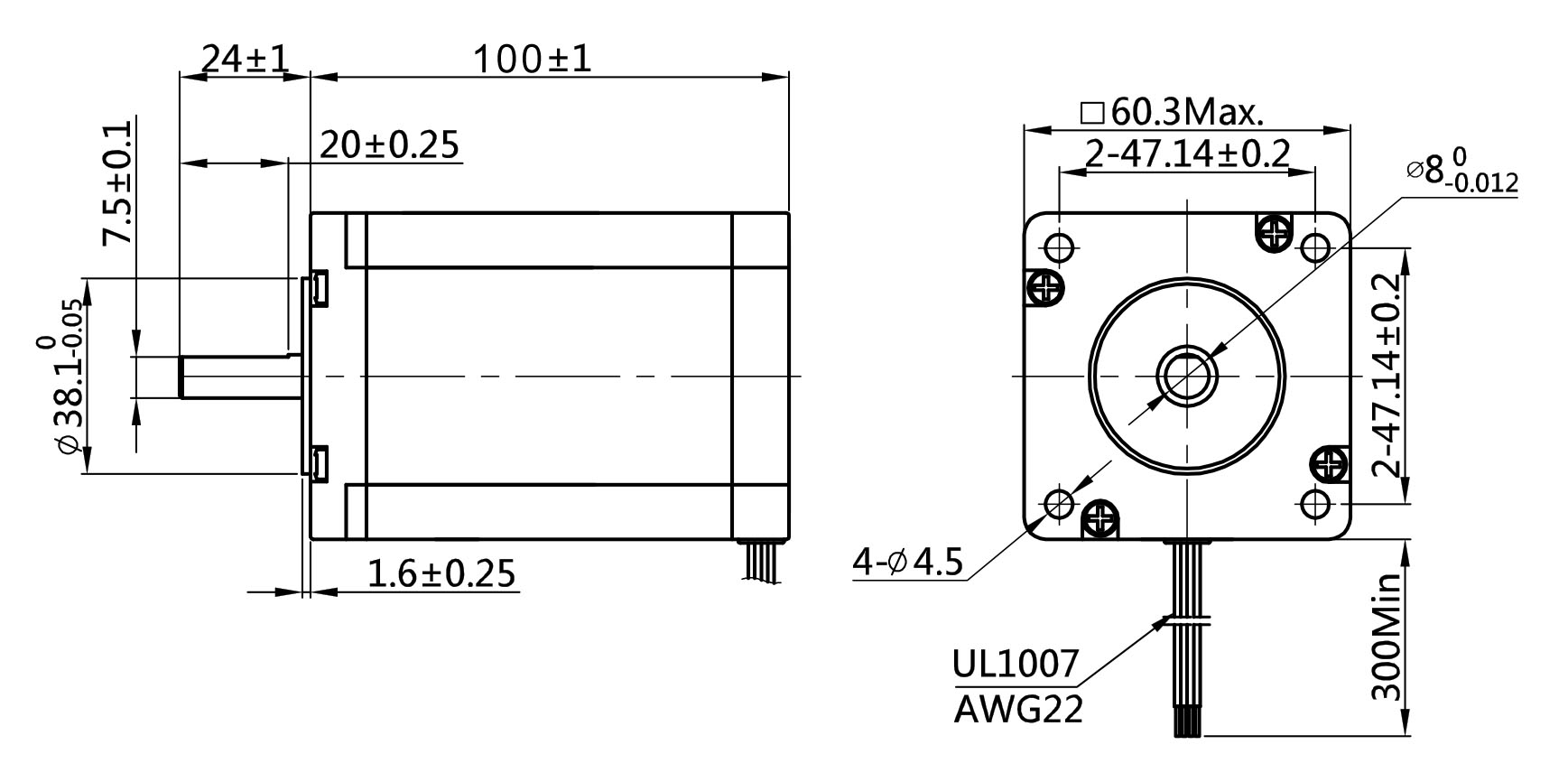

Nema 24 Motor Dimension stepper:


nema 24 dimensiones motricium

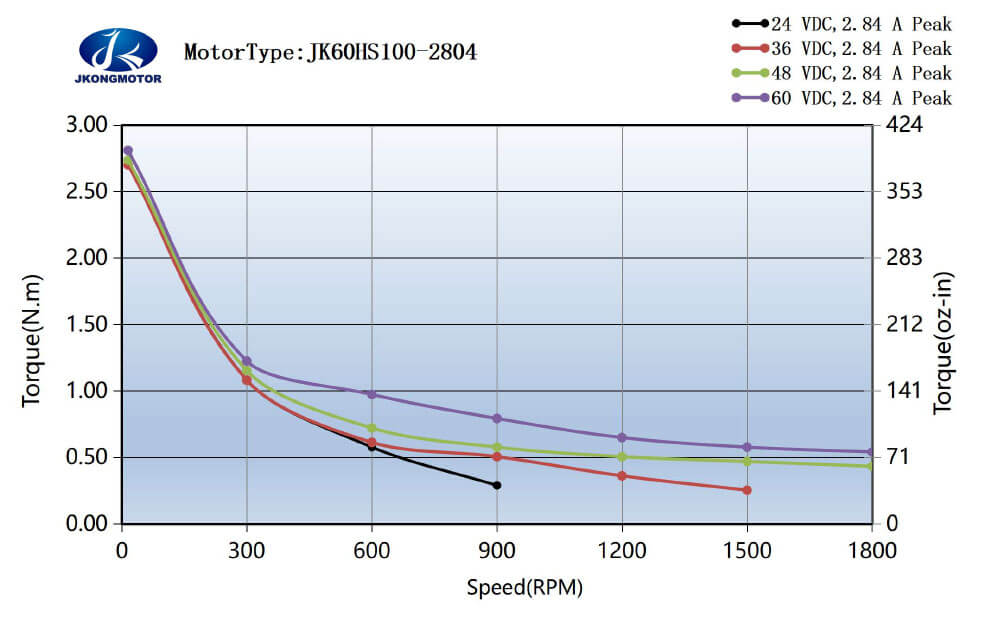

Aureus graphs operating:

JK60HS100-2804

Hybrid Stepper Motor Partes libitum

Connectors, Gearbox, Encoder, Brake, Integrated Driver...


Lorem Service:

步进电机金属带轮

Metallum Pulleys

步进电机塑料带轮

Plastic Pulley

步进电机齿轮

Apparatus

步进电机定制

Shaft Pin

步进电机厂家

Threaded Shaft

步进电机直销

Panel Mount


步进电机工厂直销

cava Shaft

步进电机厂家直销

Threaded Shaft

步进电机促销

Panel Mount

步进电机工厂

una Flat

步进电机批发

Dual Flat

步进电机直销厂家

Clavis Shaft


Hybrid Stepper Motorised Service:

stepper motor fabrica

cables

42mm gearbox stepper motor fabrica

Flanges

86mm stepper motor fabrica

Shaft

Sinis stepper motor fabrica

Duc stupra Rod

Altera hybrid stepper motor fabrica

Encoders


stepper motor Sinis manufacturer

Brakes

stepper motor fabrica in Sina

Gearboxes

stepper motor exactoris fabrica

Motor Kits

3D stepper motor fabrica

Integrated Coegi

12v stepper motor fabrica

More nativus


Nema 24 Stepper Motor Drawings:


Idonei Coegi Manual:

JK-DM542 Stepper Motor Coegi

JK-D5056S Stepper Motor Coegi
