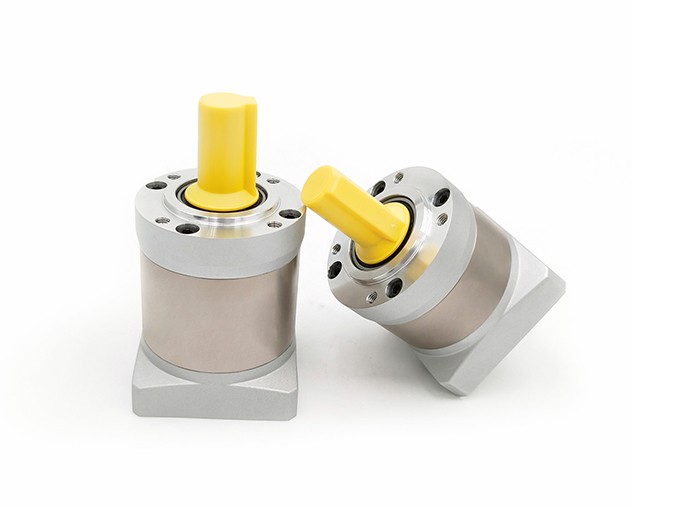

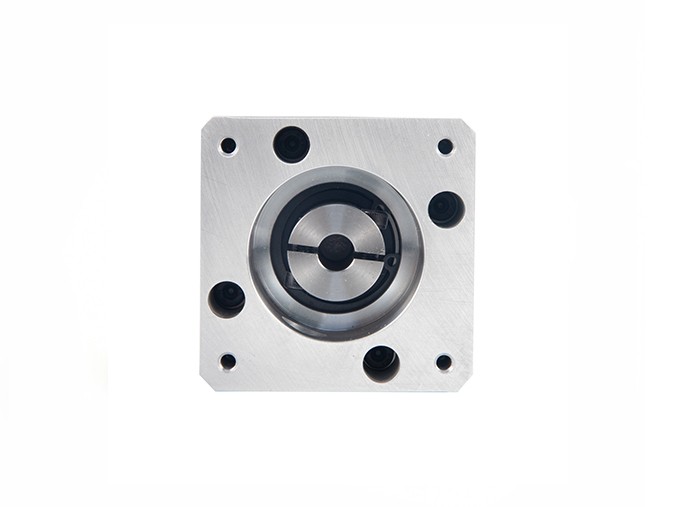

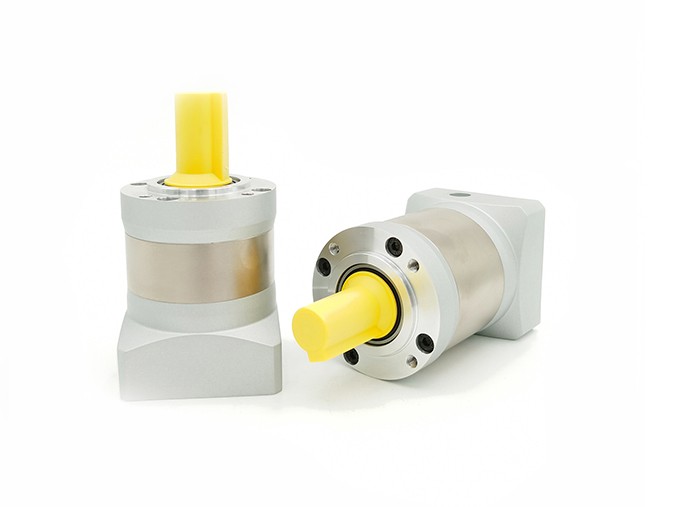

JKM HPR60 Planetary Gearbox

https://www.jkongmotor.com/uploadfiles/128.1.164.122/webid663/source/202505/174729434298.jpg

Product Details

Model: JKM Planetary Gearbox HPR60-L / LSW for Nema 23 24 57 / 60mm Stepper Motor

Planetary gearboxes are valued for their ability to handle high torque loads, thanks to the load distribution across multiple planetary gears, which improves stability and extends operational life. They achieve high efficiency, with very low energy losses—up to 98% in the initial stage.

Thanks to their compact design, these gearboxes provide a high power density, outperforming many other types of gears. The external ring gear design further helps in reducing the overall size and weight of the transmission system.

Jkongmotor brings over 15 years of experience in producing stepper motors and brushless DC motors. Additionally, we offer worm gearboxes, planetary gearboxes, brakes, encoders, drivers, integrated servo motors, and various other motor components. We welcome your inquiries.

Product Parameters:

Product Type: HPR60 Nema 23 24 Planetary Gearbox

Suitable Motor：Nema 23 24 57 60mm stepper motor or bldc motor

Feature summary：Low Inertia、Low Noise、High Torque

Place of Origin：china

Minimum order quantity：10pcs

Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...

Applicatin Scope: 57 60mm Nema 23 24 stepping motor

Packing：The sample is packed in carton,the batch with plastic pallet

Delivery time：Standard product: 7-10days

Customized product: 25-30days

Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...

HPR60-L Nema23 24 Planetary Gearbox Specification:

Model	/	JK-HPR60-L1					JK-HPR60-L2
Gear Ratio	/	3	4	5	7	10	16	20	25	28	30	35	40	50	70	100
Gear Trains	/	1					2
Gearbox Length	mm	92					108
Rated Torque	N.m	16	25	28	20	10	30	30	32	30	30	30	25	25	20	10
Sundden Stop Torque	N.m	32	50	56	40	20	60	60	64	60	60	60	50	50	40	20
Back Lash	arcmin	≤15 arcmin					≤20 arcmin
Efficiency	%	96					94
Suitable Motor Dimension	mm	Φ8-14 / Φ38.1-2/ F47.14-M4					Φ8-14 / Φ38.1-2 / F47.14-M4
Rated Input Speed	Rpm	3000					3000
Max Input Speed	Rpm	6000					6000
Average Life Span	h	20000					20000
Axial Force	N	230					230
Radial Force	N	400					400
Noise	dB	≤65					≤65
Protection Level	IP	IP54					IP54
Work Temp.	℃	-20 to +150					-20 to +150
Out Shaft Type	/	Key Shaft Type					Key Shaft Type

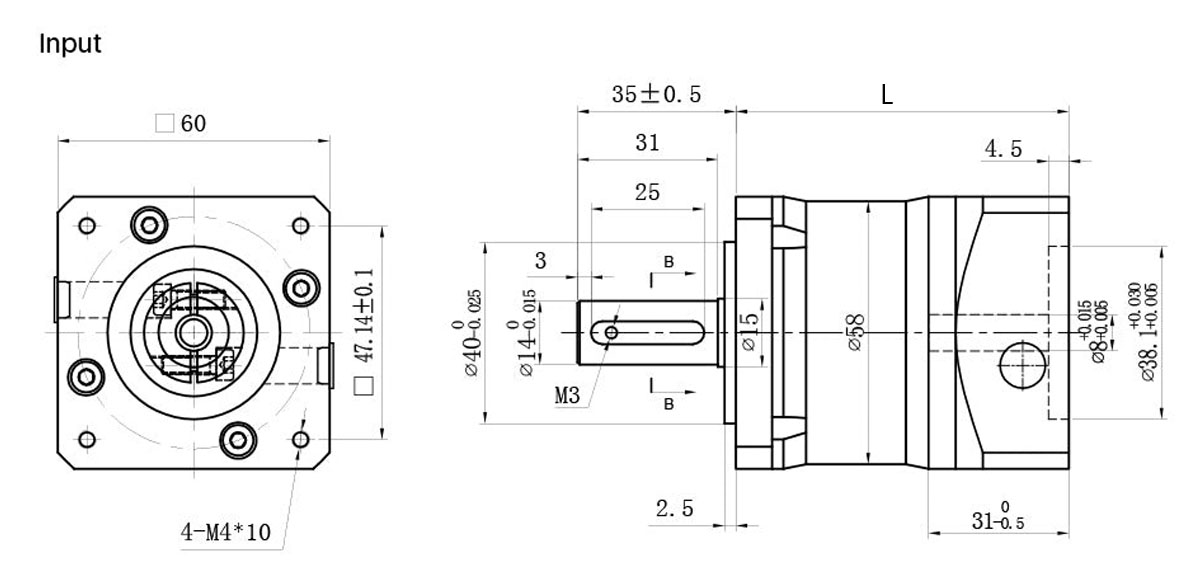

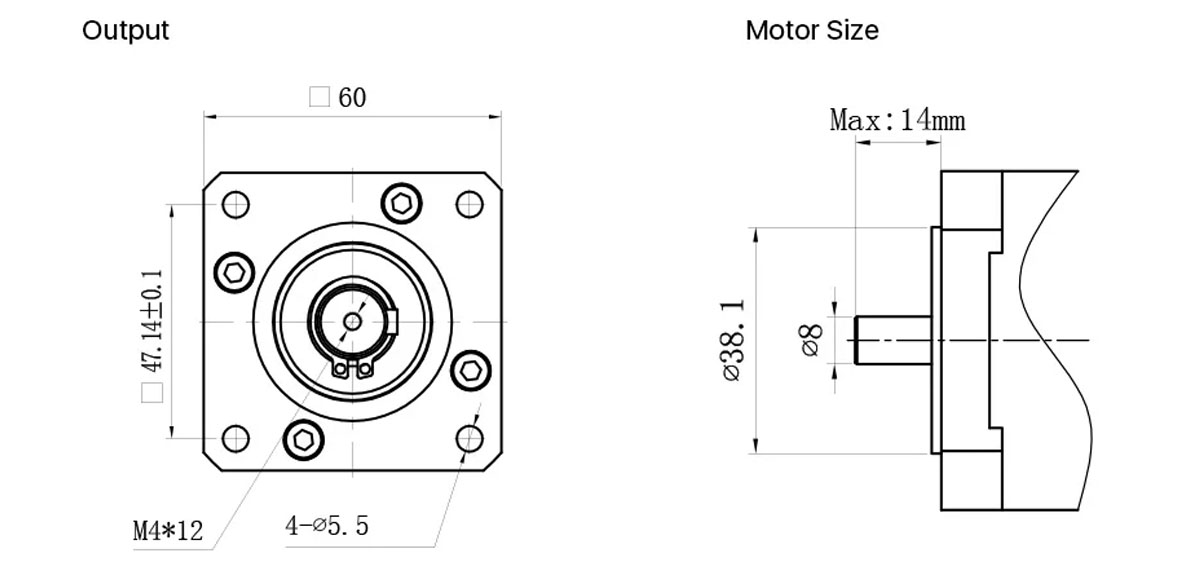

HPR60-L Planetary Gearbox Dimensions: (Unit=mm)

planetary gearbox.jpg

HPR60-LSW Nema23 24 Planetary Gearbox Specification:

Model	/	JK-HPR60-L1SW					JK-HPR60-L2SW
Gear Ratio	/	3	4	5	7	10	16	20	25	28	30	35	40	50	70	100
Gear Trains	/	1					2
Gearbox Length	mm	108.5					124.5
Rated Torque	N.m	16	25	28	20	10	30	30	32	30	30	30	25	25	20	10
Sundden Stop Torque	N.m	32	50	56	40	20	60	60	64	60	60	60	50	50	40	20
Back Lash	arcmin	≤15 arcmin					≤20 arcmin
Efficiency	%	96					94
Suitable Motor Dimension	mm	Φ8-30/ Φ38.1-2/ F47.14-M4					Φ8-30 / Φ38.1-2 / F47.14-M4
Rated Input Speed	Rpm	3000					3000
Max Input Speed	Rpm	6000					6000
Average Life Span	h	20000					20000
Axial Force	N	230					230
Radial Force	N	400					400
Noise	dB	≤65					≤65
Protection Level	IP	IP54					IP54
Work Temp.	℃	-20 to +150					-20 to +150
Out Shaft Type	/	Key Shaft Type					Key Shaft Type

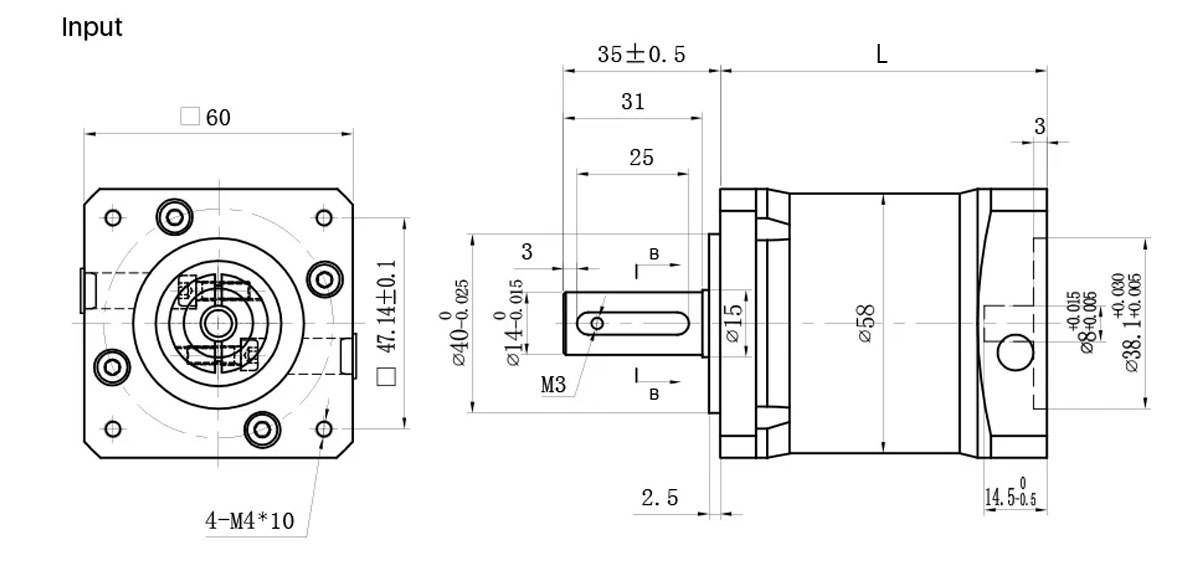

HPR60-LSW Planetary Gearbox Dimensions: (Unit=mm)

nema 23 planetary gearboxes.jpg

Jkongmotor Nema 23 Hybrid Stepper Motor Specification:

Model No.	Step Angle	Motor Length	Current	Resistance	Inductance	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	N.m	No.	g.cm	g.cm2	Kg
JK57HS41-1006	1.8	41	1	7.1	8	0.48	6	250	150	0.47
JK57HS41-2008	1.8	41	2	1.4	1.4	0.39	8	250	150	0.47
JK57HS41-2804	1.8	41	2.8	0.7	1.4	0.55	4	250	150	0.47
JK57HS51-1006	1.8	51	1	6.6	8.2	0.72	6	300	230	0.59
JK57HS51-2008	1.8	51	2	1.8	2.7	0.9	8	300	230	0.59
JK57HS51-2804	1.8	51	2.8	0.83	2.2	1.01	4	300	230	0.59
JK57HS56-2006	1.8	56	2	1.8	2.5	0.9	6	350	280	0.68
JK57HS56-2108	1.8	56	2.1	1.8	2.5	1	8	350	280	0.68
JK57HS56-2804	1.8	56	2.8	0.9	2.5	1.2	4	350	280	0.68
JK57HS64-2804	1.8	64	2.8	0.8	2.3	1	4	400	300	0.75
JK57HS76-2804	1.8	76	2.8	1.1	3.6	1.89	4	600	440	1.1
JK57HS76-3006	1.8	76	3	1	1.6	1.35	6	600	440	1.1
JK57HS76-3008	1.8	76	3	1	1.8	1.5	8	600	440	1.1
JK57HS82-3004	1.8	82	3	1.2	4	2.1	4	1000	600	1.2
JK57HS82-4008	1.8	82	4	0.8	1.8	2	8	1000	600	1.2
JK57HS82-4204	1.8	82	4.2	0.7	2.5	2.2	4	1000	600	1.2
JK57HS100-4204	1.8	100	4.2	0.75	3	3	4	1100	700	1.3
JK57HS112-3004	1.8	112	3	1.6	7.5	3	4	1200	800	1.4
JK57HS112-4204	1.8	112	4.2	0.9	3.8	3.1	4	1200	800	1.4

Note: Above only for representative products, products of special request can be made according to the customer request.

Jkongmotor Nema 24 Hybrid Stepper Motor Specification:

Model No.	Wiring Diagram	Motor Length	Current	Resistance	Inductance	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	Wiring Diagram	(L)mm	A	Ω	mH	N.m	No.	g.cm	g.cm2	Kg
JK60HS56-2008	Unipolar	56	2	1.8	3	1.17	8	700	300	0.77
	Parallel		2.8	0.9	3.6	1.65
	Tandem		1.4	3.6	14.4	1.65
JK60HS67-2008	Unipolar	67	2	2.4	4.6	1.5	8	900	570	1.2
	Parallel		2.8	1.2	4.6	2.1
	Tandem		1.4	4.8	18.4	2.1
JK60HS88-2008	Unipolar	88	2	3	6.8	2.2	8	1000	840	1.4
	Parallel		2.8	1.5	6.8	3.1
	Tandem		1.4	6	27.2	3.1
JK60HS100-2008	Unipolar	100	2	3.2	6.4	2.8	8	1100	980	1.7
	Parallel		2.8	1.6	6.4	4
	Tandem		1.4	6.4	25.6	4
JK60HS111-2008	Unipolar	111	2	4.4	8.3	3.2	8	1200	1120	1.9
	Parallel		2.8	2.2	8.3	4.5
	Tandem		1.4	8.8	33.2	4.5

Note: Above only for representative products, products of special request can be made according to the customer request.

Customized Design:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
