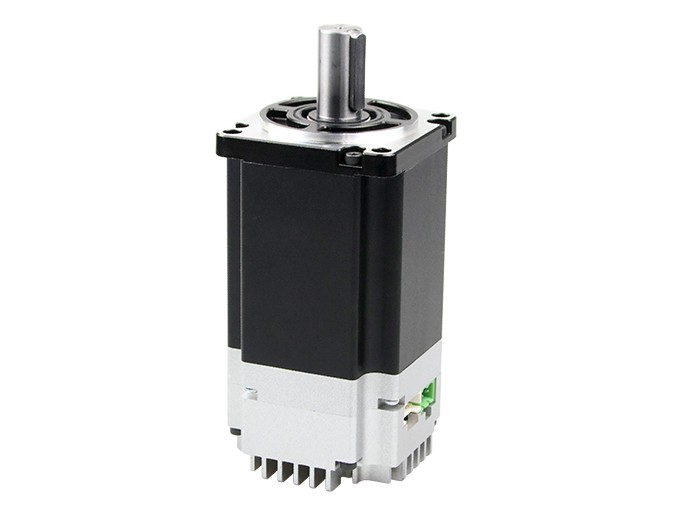

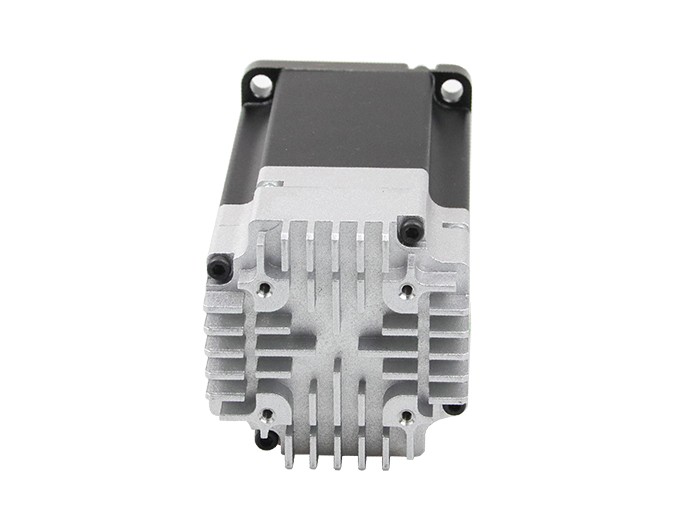

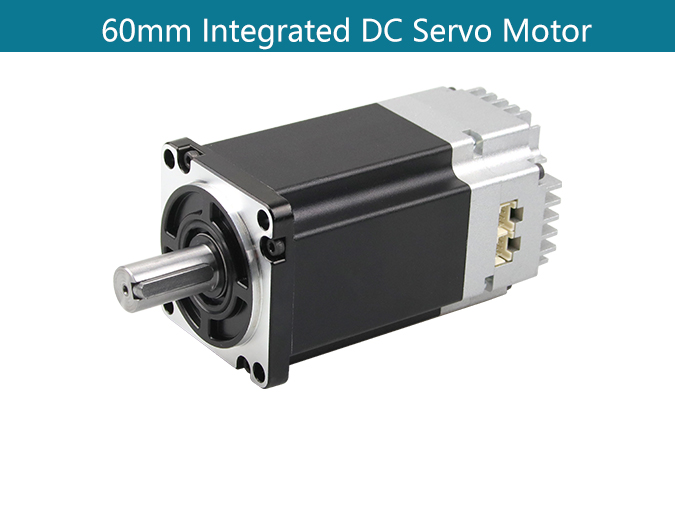

Model: JK60ST02-04IE 60mm Integrated DC Servo Motor 24V BLDC Motor with Integrated Controller / Driver Support RS485
Integrated DC Servo Motor Product Parameters:
Product Type: JK60ST02-04IE Integrated Brushless DC Servo Motor
Size：60x60mm integrated bldc motor
Place of Origin：china
Minimum order quantity：10pcs
Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...
Feature summary: Low Inertia,Quick Feedback; High Torque,High Efficiency; Small Vibration,Low Noise
Packing：The sample is packed in carton,the batch with plastic pallet
Delivery time：Standard product: 7-10days
Customized product: 25-30days
Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...
APPLICATION：Medical equipment: medical pumps, stirring instruments, peristaltic pumps, biopharmaceutical equipment. Industrial equipment: winding machines, printing machines, robots, grinding, cutting, drilling, automatic conveying systems, automatic positioning systems, level control systems, electric actuators, electric valves, vending machines.
Electrical Specification:
| 60mm Integrated DC Servo Motor | |||
| Name | DC Servo Motor with Integrated Driver | Brand | Jkongmotor |
| Model | JK60ST02-04IE | Resistance | TBD±10% ohms |
| Inductance | TBD±20% mH | Poles No. | 10 |
| Voltage | 24V | Current | 22A |
| Holding Torque | 1.27N.m | Speed | 3000rpm |
| Power | 400W | Insulation Class | F |
Note: Above only for representative products (bldc motor integrated controller), products of special request can be made according to the customer request.
Integrated Dc Servo Motor Parameters:
| Model | Power (W) | Rated Voltage (VDC) | Rated Current (A) | Rated Speed (rpm) | Rated Torque (N.m) | Body Length L (mm) | Encoder | communication protocol （choose） | ||
| JKIDS60-P01A | 100 | 24 | 6A | 3000 | 0.35 | 94 | 17bit | Pulse/RS485 | CANopen | |
| JKIDS60-P02A | 200 | 24 | 12A | 3000 | 0.64 | 94 | 17bit | Pulse/RS485 | CANopen | |
| JKIDS60-P03A | 400 | 48 | 11A | 3000 | 1.27 | 112 | 17bit | Pulse/RS485 | CANopen | |

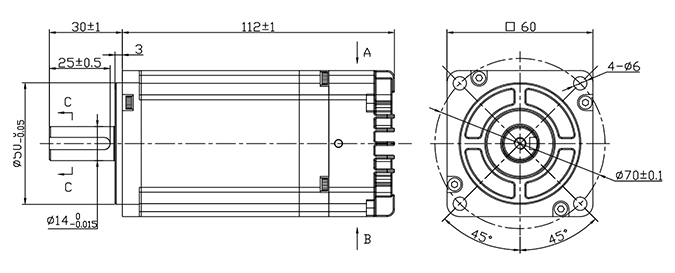

24v Brushless Dc Servo Motor with Integrated Driver Product Dimensions: (Unit=mm)
JK60ST02-04IE Brushless Dc Motor Integrated Driver Electrical Performance:

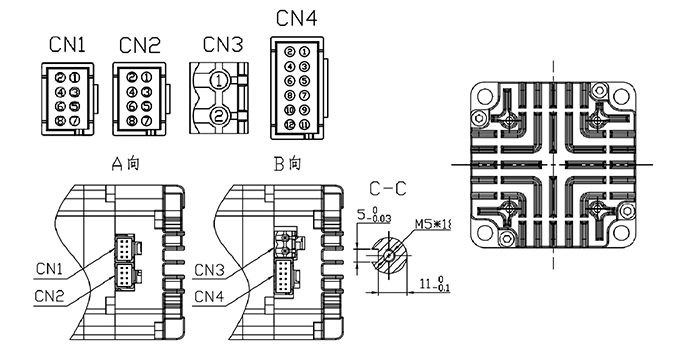

| Terminal Number Functions | |||||
| CN1 | CN3 | ||||
| No. | Name | Functions | No. | Name | Functions |
| 1 | 485A/T | 485 communication positive terminal | 1 | GND | Power |
| 2 | NC | Reserve | 2 | DC+ | Power positive |
| 3 | 485B/T | 485 communication negative terminal | / | ||
| 4 | NC | Reserve | / | ||
| 5 | GND | Communication public terminal | CN4 | ||
| 6 | NC | Reserve | No. | Name | Functions |
| 7 | NC | Reserve | 1 | ALM- | Alarm negative terminal |
| 8 | NC | Reserve | 2 | ALM+ | Alarm positive terminal |
| CN2 | 3 | READY- | In place signal negative terminal | ||
| No. | Name | Functions | 4 | READY+ | Positive end of signal in place |
| 1 | 485A/T | 485 communication positive terminal | 5 | DIN- | input negative terminal |
| 2 | NC | Reserve | 6 | DIN+ | Input positive terminal |
| 3 | 485B/T | 485 communication negative terminal | 7 | ENA- | Enable negative terminal |
| 4 | NC | Reserve | 8 | ENA+ | Enable positive |
| 5 | GND | Communication public terminal | 9 | DIR- | Negative direction |
| 6 | SWCLK/T | Program upgrade clock line | 10 | DIR+ | Positive direction |
| 7 | +3.3Ｖ | Communication 3.3V power supply | 11 | PUL- | pulse negative terminal |
| 8 | SWCLK/T | Program upgrade data cable | 12 | PUL+ | Positive side of pulse |
Customized Design:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Customized Shaft Types:
