Model: JKM Planetary Gearbox PLE42-L1/L2 for Nema 17 42mm Stepper Motor & Brushless DC Motor
Product Parameters:
Product Type: PLE42 Planetary Gearbox
Suitable Motor：Nema 17 42mm stepper motor or bldc motor
Feature summary：Low Inertia、Low Noise、High Torque
Place of Origin：china
Minimum order quantity：10pcs
Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...
Applicatin Scope: 42mm Nema 17 stepping motor or brushless dc motor

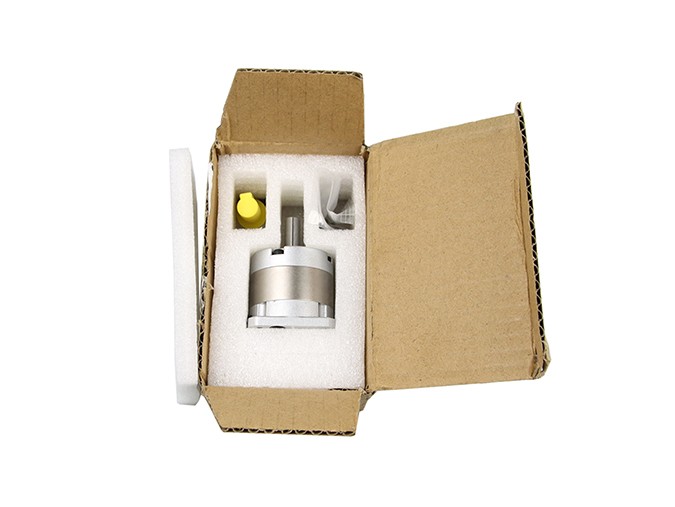

Packing：The sample is packed in carton,the batch with plastic pallet
Delivery time：Standard product: 7-10days
Customized product: 25-30days
Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...
PLE42-L1 Specification:
Electrical Specification: | |||||
Specification | PLE42-L1 | ||||
Model | PLE42-03 | PLE42-04 | PLE42-05 | PLE42-07 | PLE42-010 |
Reduction Ratio | 3:1 | 4:1 | 5:1 | 7:1 | 10:1 |
Output Torque | 8N.m | 9N.m | 9N.m | 5N.m | 5N.m |
Fail-stop Torque | 16N.m | 18N.m | 18N.m | 10N.m | 10N.m |

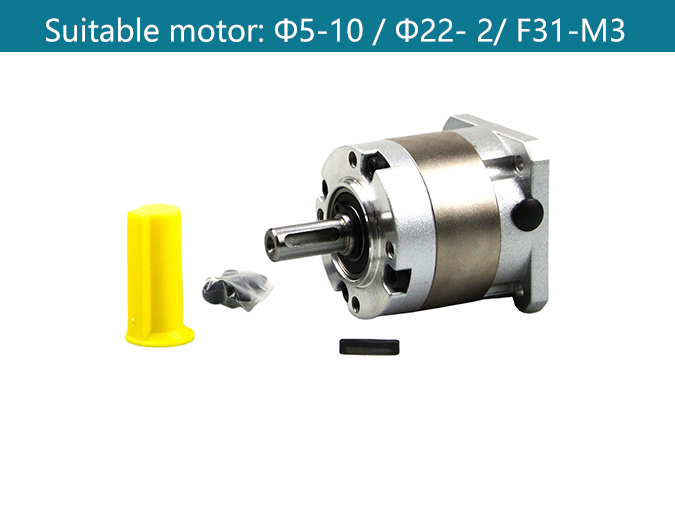

Suitable Motor | Φ5-10 / Φ22-2 / F31-M3 | ||||
Rated Input Speed | 3000min-1 | ||||
Max Input Speed | 6000min-1 | ||||
Average Lifespan | 20000h | ||||
Backlash | ≤15arcmin | ||||
Efficiency | 96% | ||||
Noise | ≤55dB | ||||
Work Temperature | -10°~+90° | ||||
Degree of Protection | IP54 | ||||
Weight | 0.25kg | ||||
PLE42-L2 Specification:
Electrical Specification: | ||||||
Specification | PLE42-L2 | |||||
Model | PLE42-012 | PLE42-015 | PLE42-016 | PLE42-020 | PLE42-025 | PLE42-028 |
Reduction Ratio | 12:1 | 15:1 | 16:1 | 20:1 | 25:1 | 28:1 |
Output Torque | 10N.m | 10N.m | 12N.m | 12N.m | 10N.m | 10N.m |
Fail-stop Torque | 20N.m | 20N.m | 24N.m | 24N.m | 20N.m | 20N.m |
Model | PLE42-035 | PLE42-040 | PLE42-050 | PLE42-070 | PLE42-100 | / |
Reduction Ratio | 35:1 | 40:1 | 50:1 | 70:1 | 100:1 | / |
Output Torque | 10N.m | 10N.m | 10N.m | 10N.m | 10N.m | / |
Fail-stop Torque | 20N.m | 20N.m | 20N.m | 20N.m | 20N.m | / |
Suitable Motor | Φ5-10 / Φ22-2 / F31-M3 | |||||
Rated Input Speed | 3000min-1 | |||||
Max Input Speed | 6000min-1 | |||||
Average Lifespan | 20000h | |||||
Backlash | ≤20arcmin | |||||
Efficiency | 94% | |||||
Noise | ≤55dB | |||||
Work Temperature | -10°~+90° | |||||
Degree of Protection | IP54 | |||||
Weight | 0.35kg | |||||
Note: Above only for representative products, products of special request can be made according to the customer request.

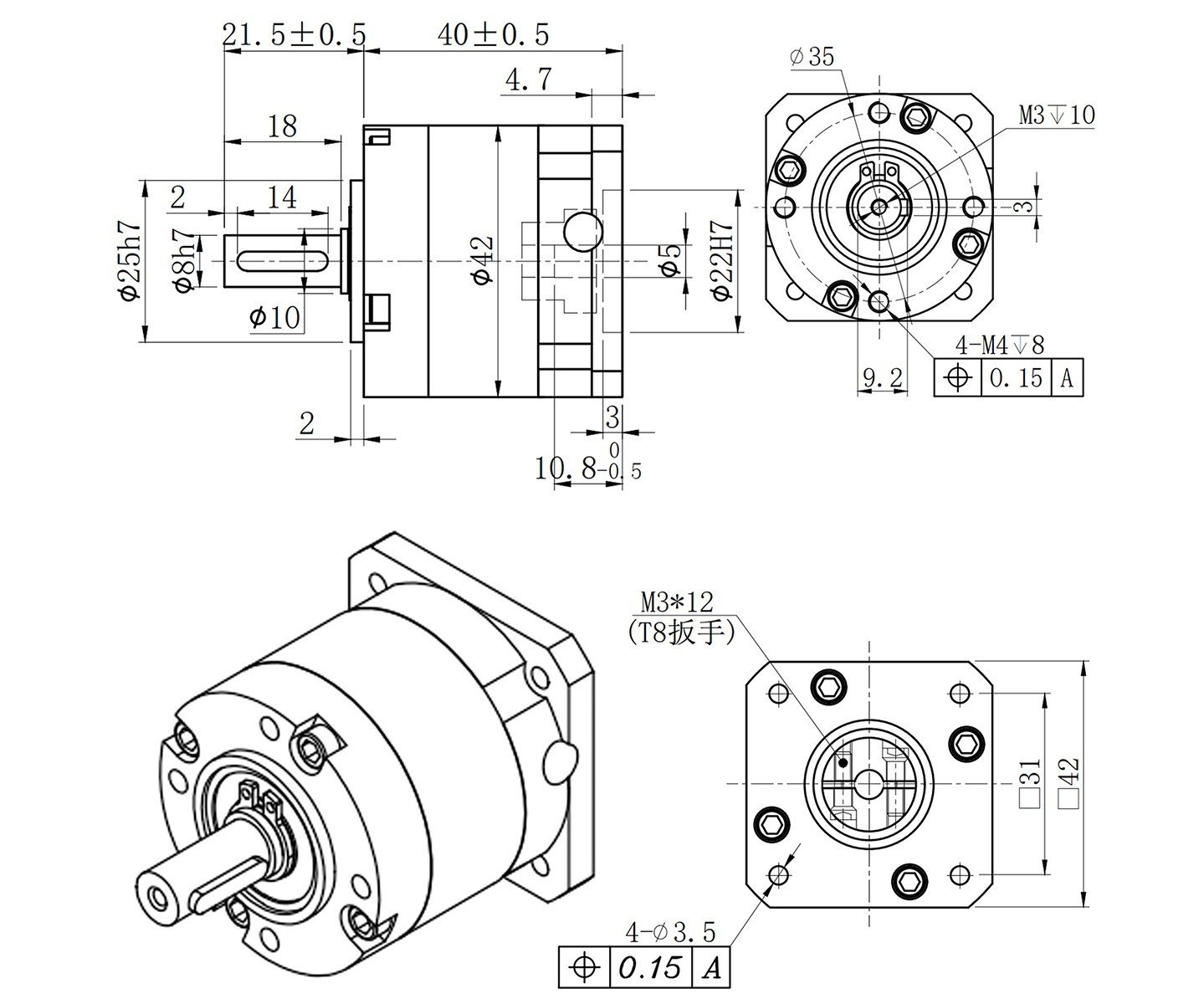

PLE42-L1 Dimensions: (Unit=mm)

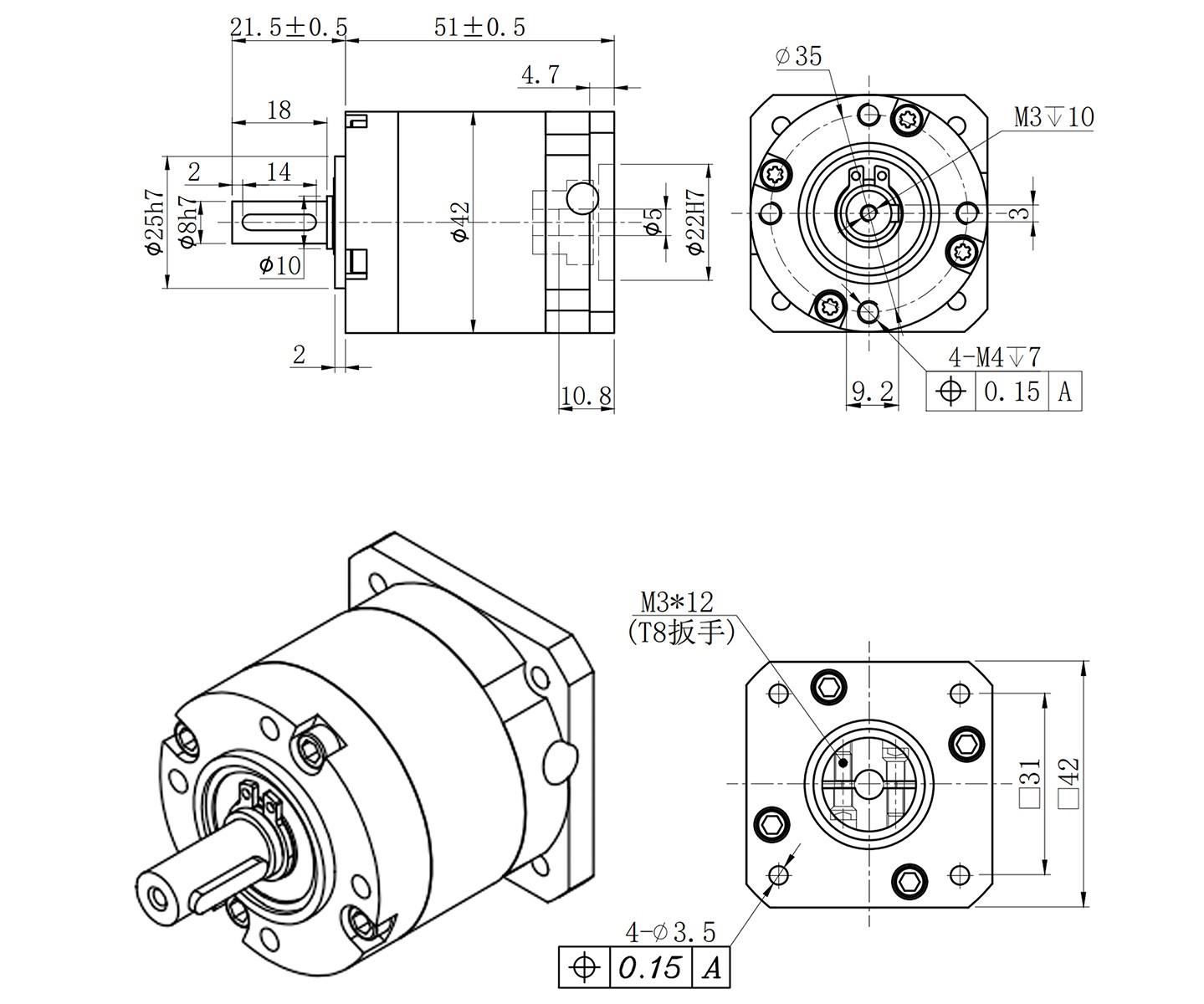

PLE42-L1 Dimensions: (Unit=mm)
Customized Design:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
