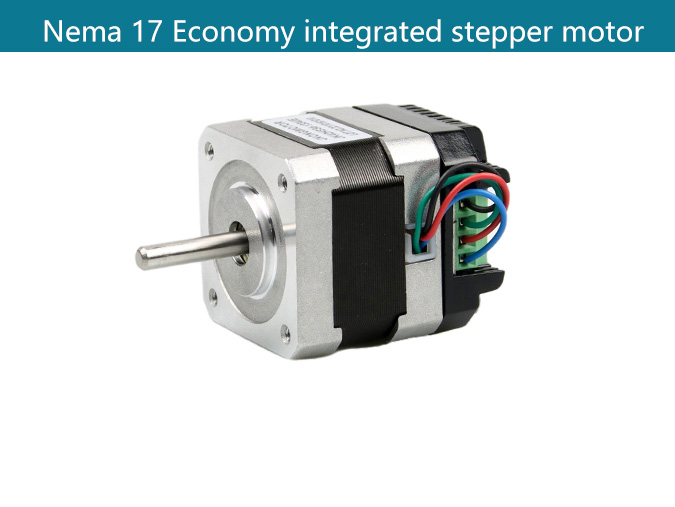

JKM Nema17 integrated stepper motor
    • JKM Nema17 integrated stepper motor
    • JKM Nema17 integrated stepper motor
    • JKM Nema17 integrated stepper motor
    • JKM Nema17 integrated stepper motor
    • JKM Nema17 integrated stepper motor
    • JKM Nema17 integrated stepper motor
    • JKM Nema17 integrated stepper motor
Product Details

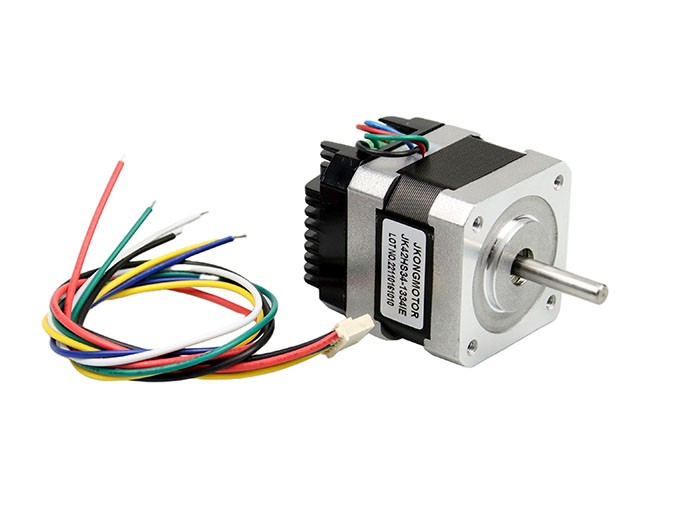

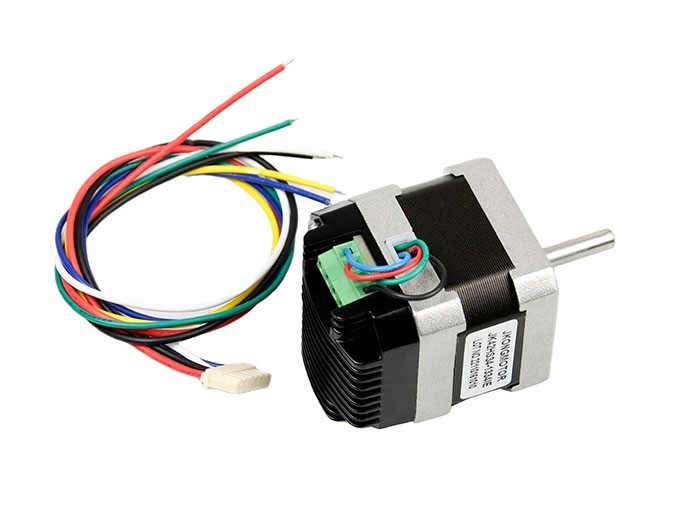

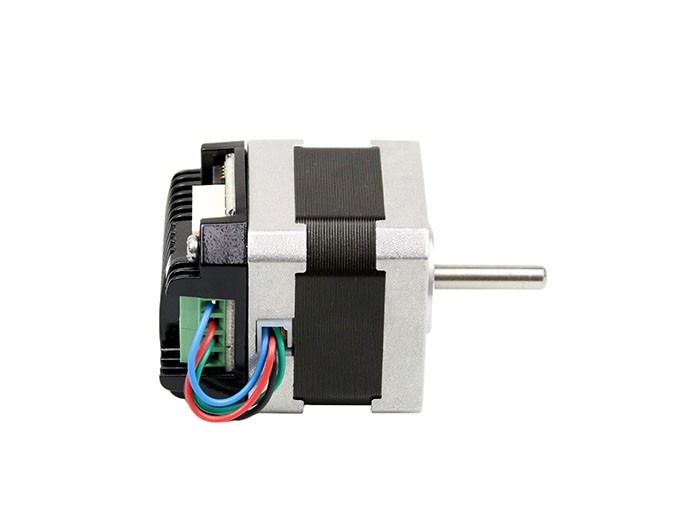

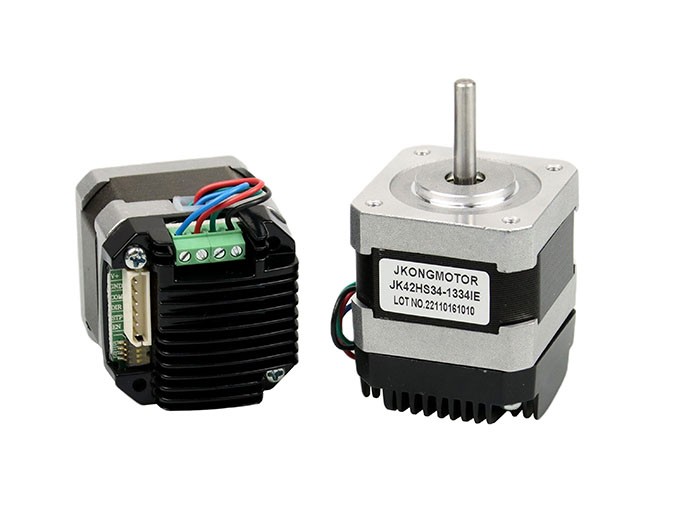

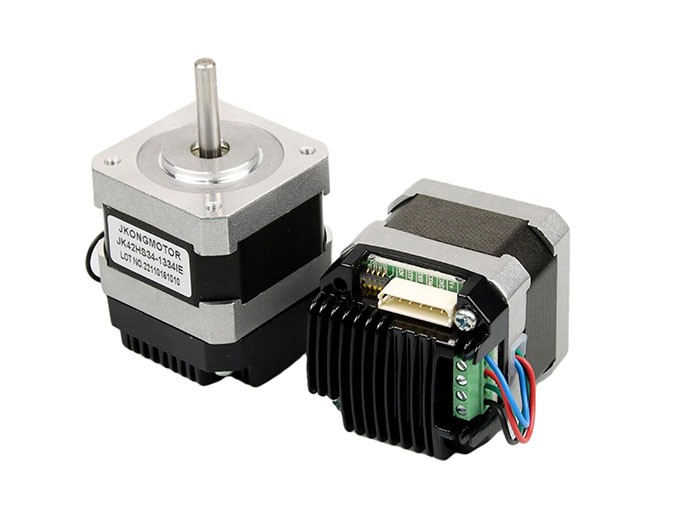

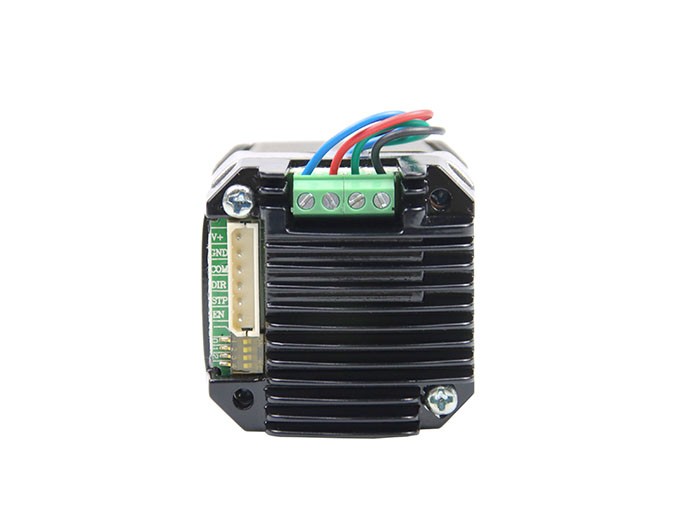

JK42HS34-1334IE Pulse Control Method 0.26N.M 34mm Motor Length Nema 17 Integrated Stepper Motor Driver For 3d Printer

We are a comprehensive company which specializes in producing and researching stepper motor and motor driver, closed loop stepper motor, step servo motor, brushless dc motor, brushless dc driver, spindle motor. Our company is located in Changzhou city, Jiangsu province, China. We have an excellent group with rich experience in manufacturing and researching. We can solve the actual using problems for customers.
Our products are highly commended by customers because of its easy operation, long using life, stable performance, low failure rate and high technical content.

1. 42mm Hybrid Nema 17 Integrated Stepper Motor Genaral Specification:

NameNema 17 Integrated Stepper Motor
ModelStepper Motor with Integrated Driver
Motor TypeSTM Integrated Steppers
Holding Torque0.26N.m
Step Angle1.8 degree
Current1.33A
Shaft5mm D-cut Shaft
Support ControlPulse control method
UsagePrinting, AOI, panel bonding, transfer equipment, etc. in PCB related equipment; camera related equipment such as camera and fingerprint; solid crystal machine, wire bonding machine, dispensing machine, beam splitter, and package tape machine in packaging



2,Features of integrated easy servo stepper motor with controller driver:

1. Motor and driver integrated, more easy for wire connection

2. Low cost

3. Quick response and perfect acceleration, high torque at high speed

4. Over-current, over voltage protection

5. Pulse response frequency



3,Application of integrated servo stepper motor:

Printing, AOI, panel bonding, transfer equipment, etc. in PCB related equipment; camera related equipment such as camera and fingerprint; solid crystal machine, wire bonding machine, dispensing machine, beam splitter, and package tape machine in packaging.



4,General Specification of integrated step servo motor:

Brand:JkongmotorProduct Type:Integrated Stepper Motor
Model Name:JK42HS34-1334IECurrent:1.33A
Phase No.2 PhaseRated Voltage:2.8V
Step Angle:1.8DegreeShaft Diameter:Φ5mm
Resistance:2.1ΩInductance:2.5mH
Insulation Class:BMotor Weight:0.3kg

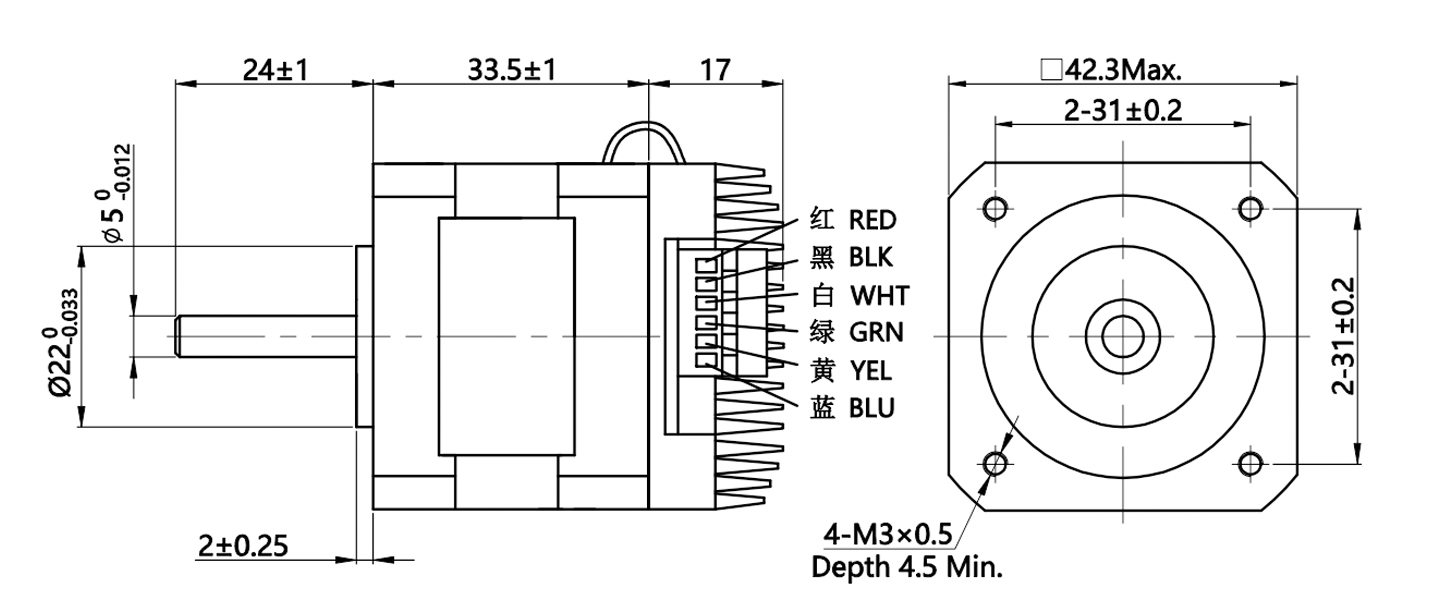

5,Product Dimensions: (Unit=mm)



nema 17 integrated stepper motor

jvl integrated stepper motor

6,Customized Design:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

STM integrated steppers


7,Customized Shaft Types:

STM integrated steppers

STM-R Integrated Steppers

8,Other Integrated Stepper Motor Models:

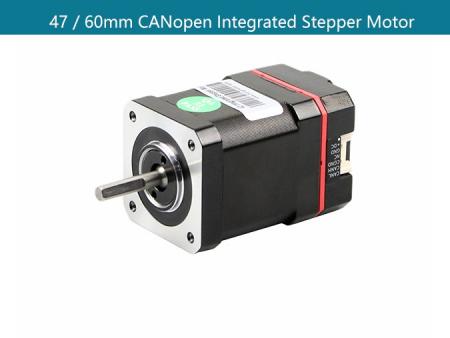

Nema 17 - ISM42 Series - CANopen / RS485

Nema 23 - ISM57 Series - CANopen / RS485
