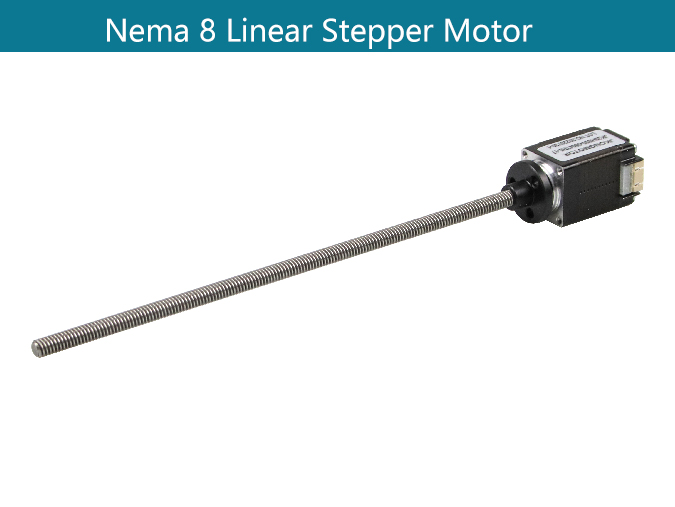

Model: 2 Phase Hybrid Nema 8 Linear Stepper Motor 20*20mm-JK20HS(1.8 degree)
Linear Stepper Motors: These stepper motors with linear motion are open-loop systems with a base and a slider. They provide high speeds and resolutions. The sliders are also called forcers which contain a permanent magnet, teeth, and motor windings.
Linear motors are commonly used for actuating high performance industrial automation equipment. Their advantage, unlike any other commonly used actuator, such as a ball screw, timing belt, or rack and pinion, is that they provide any combination of high precision, high velocity, high force and long travel.
A stepper motor is a device used for precise motion control, while a linear actuator is a linear motion device used for simple linear motion applications. They differ in construction, feedback, and force and speed characteristics, among other factors.
Motion Control Products range of 20mm (NEMA8) Hybrid stepper motors are ideal for applications where size and cost is an important factor. JKONGMOTOR's NEMA 8 stepepr motors can be supplied with a variety of housings, single or double shaft options, winding configurations and IP rating options, JKONGMOTOR can also provide other stepper motor or bldc motor customized, such as brake, encoder, gearbox or integrated step motor...
NEMA 8 frame (20mm square) is the smallest size of hybrid stepping motor. We supply NEMA 8 stepper motor with 1.8 degree step angle and a weight of only 50g. We also customize the winding to perfectly match your voltage and current. If you want to buy NEMA 8 stepper motor, Our company is definitely your best choice. Our Step motor technology utilizes a simple design to create an effective solution for many applications requiring reasonable accuracy and torque. Get a stepper motor that meets your requirements precisely.
Product Name: Nema 8 Linear Stepper Motor
Size: 20x20mm / 0.79inch Step Motor
Holding Torque: 180g.cm - 400g.cm
Leads No.: 4leads
Motor Length: 30mm / 33mm / 38mm / 42mm
Product Type: 2 Phase Hybrid Stepping Motor
100 MΩ Min. ,500VDC
500VAC for 1minute
Shaft Radial Play
Shaft Axial Play
Max. radial force
28N (20mm from the flange)
Max. axial force
# of Leads
Note: Above only for representative products, products of special request can be made according to the customer request.
Feature summary：Low Inertia, Quick Response; High Torque, High Efficiency; Low Vibration, Low Noise.
Minimum order quantity：10pcs
Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...
Applicatin Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Lighting, ect.
Packing：The sample is packed in carton,the batch with plastic pallet
Delivery time：Standard product: 7-10days
Customized product: 25-30days
Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...
Product Dimensions: (Unit=mm)
Screw rod Specification:
Travel per step(mm)
Travel per step(mm)
Feature summary：High torque; High stability; Easy to plug...
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Customized Shaft Types:
