Model: NEMA23 Linear Stepper Motor-JK57HS (1.8 degree)
General Specification:
Item | Specifications |
Step Angle | 1.8° |
Temperature Rise | 80℃max |
Ambient Temperature | -20℃~+50℃ |
Insulation Resistance | 100 MΩ Min. ,500VDC |
Dielectric Strength | 500VAC for 1minute |
Shaft Radial Play | 0.02Max. (450g-load) |
Shaft Axial Play | 0.08Max. (450g-load) |
Max. radial force | 75N (20mm from the flange) |
Max. axial force | 15N |
Product Parameters:
Product Type: Nema 23 Linear Stepper Motor
Size：57x57mm
Place of Origin：china
Minimum order quantity：10pcs
Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...
Feature summary: Low Inertia,Quick Feedback; High Torque,High Efficiency; Small Vibration,Low Noise
Packing：The sample is packed in carton,the batch with plastic pallet
Delivery time：Standard product: 7-10days
Customized product: 25-30days
Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...
APPLICATION：JKONGMOTOR linear stepping motor is a motor that converts electrical pulse signals into corresponding angular displacements or linear displacements. This small linear actuator stepper motor can be widely used in various fields, such as a 3D printer, stage lighting, laser engraving, textile machinery, medical equipment, automation equipment, etc.
Electrical Specification:
Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
( °) | (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm2 | Kg | |
JK57HS41-2804 | 1.8 | 41 | 2.8 | 0.7 | 1.4 | 0.55 | 4 | 250 | 150 | 0.47 |
JK57HS51-2804 | 1.8 | 51 | 2.8 | 0.83 | 2.2 | 1.01 | 4 | 300 | 230 | 0.59 |
JK57HS56-2804 | 1.8 | 56 | 2.8 | 0.9 | 2.5 | 1.2 | 4 | 350 | 280 | 0.68 |
JK57HS64-2804 | 1.8 | 64 | 2.8 | 0.8 | 2.3 | 1 | 4 | 400 | 300 | 0.75 |
JK57HS76-2804 | 1.8 | 76 | 2.8 | 1.1 | 3.6 | 1.89 | 4 | 600 | 440 | 1.1 |
JK57HS82-3004 | 1.8 | 82 | 3 | 1.2 | 4 | 2.1 | 4 | 1000 | 600 | 1.2 |
JK57HS100-4204 | 1.8 | 100 | 4.2 | 0.75 | 3 | 3 | 4 | 1100 | 700 | 1.3 |
JK57HS112-4204 | 1.8 | 112 | 4.2 | 0.9 | 3.8 | 3.1 | 4 | 1200 | 800 | 1.4 |
Note: Above only for representative products, products of special request can be made according to the customer request.

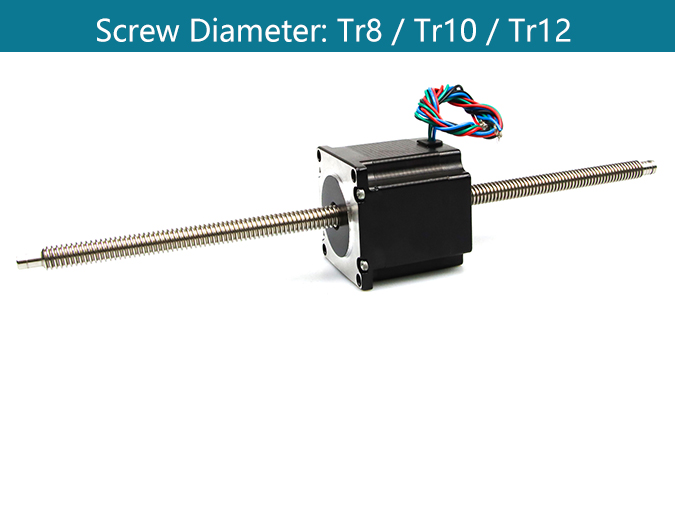

Screw rod Specification:
Screw Diameter | Screw Lead | Screw Pitch | Travel per step | Screw Diameter | Screw Lead | Screw Pitch | Travel per step |
mm | mm | mm | mm | mm | mm | mm | mm |
Tr8
| 1 | 1 | 0.005 |
Tr8
| 10 | 2 | 0.05 |
2 | 2 | 0.01 | 12 | 2 | 0.06 | ||
3 | 1.5 | 0.015 | 14 | 2 | 0.07 | ||
4 | 2 | 0.02 | |||||
8 | 2 | 0.04 | |||||
Screw Diameter | Screw Lead | Screw Pitch | Travel per step | Screw Diameter | Screw Lead | Screw Pitch | Travel per step |
mm | mm | mm | mm | mm | mm | mm | mm |
Tr10 | 2 | 2 | 0.01 |
Tr12
| 2 | 2 | 0.01 |
3 | 1.5 | 0.015 | 3 | 3 | 0.015 | ||
4 | 2 | 0.02 | 8 | 2 | 0.04 | ||
8 | 2 | 0.04 | 10 | 2 | 0.05 | ||
10 | 2 | 0.05 | |||||
12 | 2 | 0.06 |
Different Types:
Feature summary：High torque; High stability; Easy to plug...

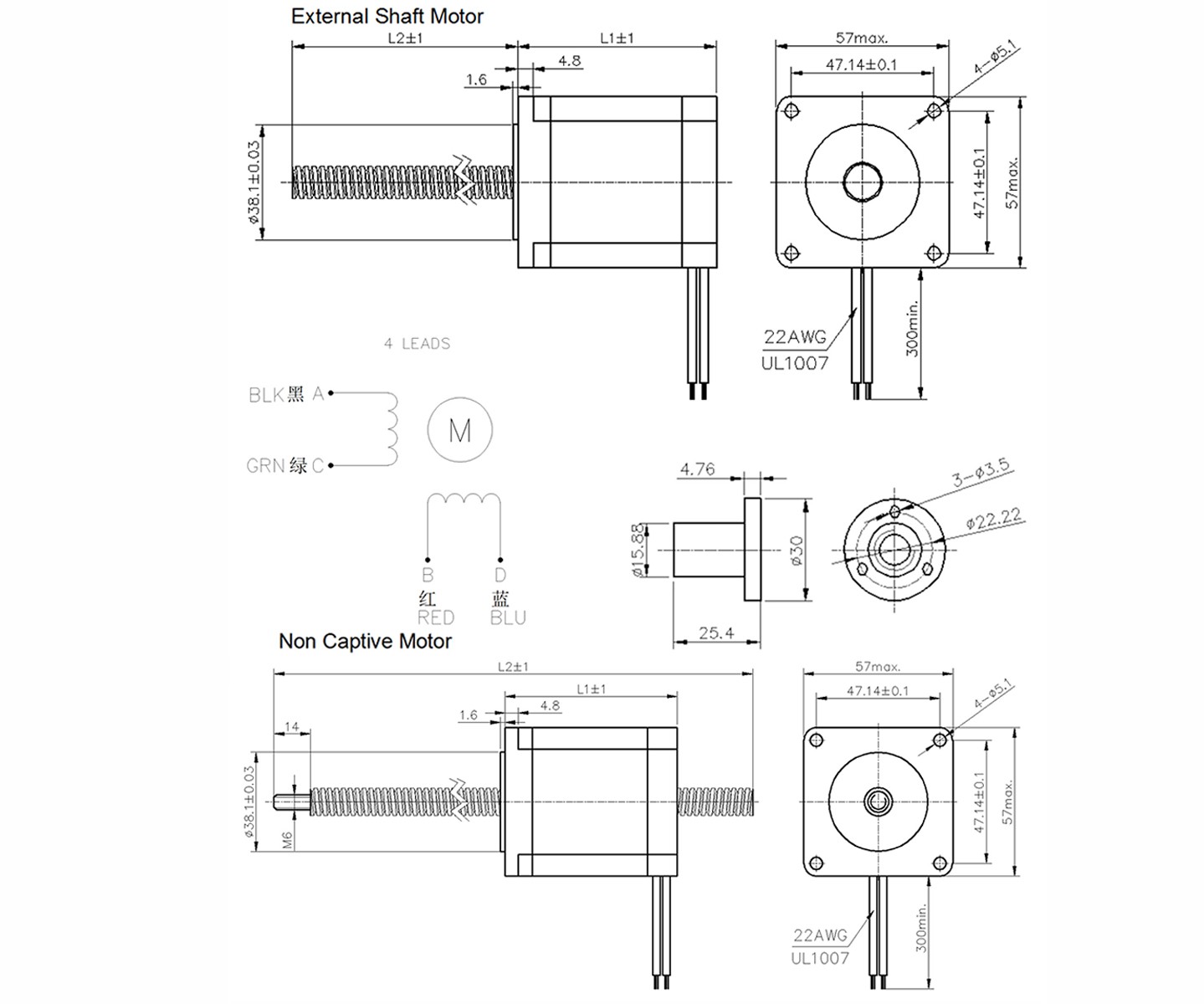

Product Dimensions: (Unit=mm)
Customized Design:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Customized Shaft Types:
