Model: NEMA11 Linear Stepper Motor-JK28HS (1.8 degree)
General Specification:
Item | Specifications |
Step Angle | 1.8° |
Temperature Rise | 80℃max |
Ambient Temperature | -20℃~+50℃ |
Insulation Resistance | 100 MΩ Min. ,500VDC |
Dielectric Strength | 500VAC for 1minute |
Shaft Radial Play | 0.02Max. (450g-load) |
Shaft Axial Play | 0.08Max. (450g-load) |
Max. radial force | 28N (20mm from the flange) |
Max. axial force | 10N |
Product Parameters:
Product Type: Nema 11 Linear Stepper Motor
Size：28x28mm
Place of Origin：china
Minimum order quantity：10pcs
Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...
Feature summary: Low Inertia,Quick Feedback; High Torque,High Efficiency; Small Vibration,Low Noise
Packing：The sample is packed in carton,the batch with plastic pallet
Delivery time：Standard product: 7-10days
Customized product: 25-30days
Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...
APPLICATION：JKONGMOTOR linear stepping motor is a motor that converts electrical pulse signals into corresponding angular displacements or linear displacements. This small linear actuator stepper motor can be widely used in various fields, such as a 3D printer, stage lighting, laser engraving, textile machinery, medical equipment, automation equipment, etc.
Electrical Specification:
Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Rotor Inertia | Motor Weight |
( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm2 | Kg | |
JK28HS32-0674 | 1.8 | 32 | 0.67 | 5.6 | 3.4 | 600 | 4 | 9 | 0.11 |
JK28HS32-0956 | 1.8 | 32 | 0.95 | 2.8 | 0.8 | 430 | 6 | 9 | 0.11 |
JK28HS45-0956 | 1.8 | 45 | 0.95 | 3.4 | 1.2 | 750 | 6 | 12 | 0.14 |
JK28HS45-0674 | 1.8 | 45 | 0.67 | 6.8 | 4.9 | 950 | 4 | 12 | 0.14 |
JK28HS51-0956 | 1.8 | 51 | 0.95 | 4.6 | 1.8 | 900 | 6 | 18 | 0.2 |
JK28HS51-0674 | 1.8 | 51 | 0.67 | 9.2 | 7.2 | 1200 | 4 | 18 | 0.2 |
Note: Above only for representative products, products of special request can be made according to the customer request.

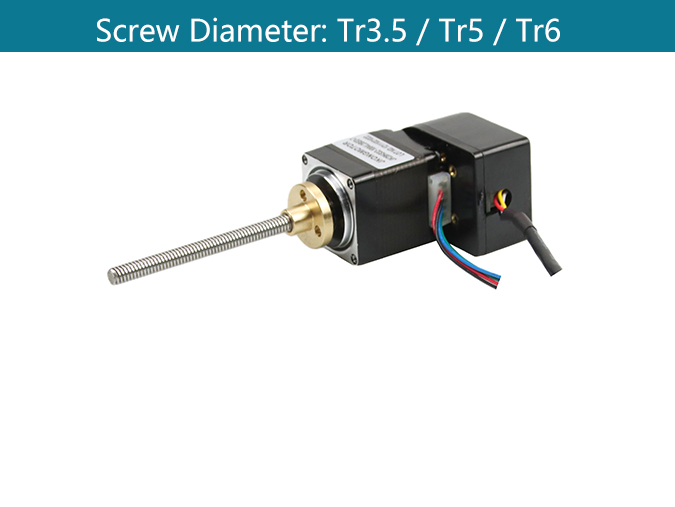

Screw rod Specification:
Screw Diameter(mm) | Screw Lead(mm) | Screw Pitch(mm) | Travel per step(mm) | Screw Diameter(mm) | Screw Lead(mm) | Screw Pitch(mm) | Travel per step(mm) |
Tr3.5 | 1 | 1 | 0.005 | Tr6 | 2 | 1 | 0.01 |
0.6096 | 0.6096 | 0.003 | 4 | 1 | 0.02 | ||
2.4384 | 1.2192 | 0.0122 | 6 | 1 | 0.03 | ||
Tr5 | 1 | 1 | 0.005 | 12 | 2 | 0.06 | |
2 | 1 | 0.01 |
Different Types:
Feature summary：High torque; High stability; Easy to plug...

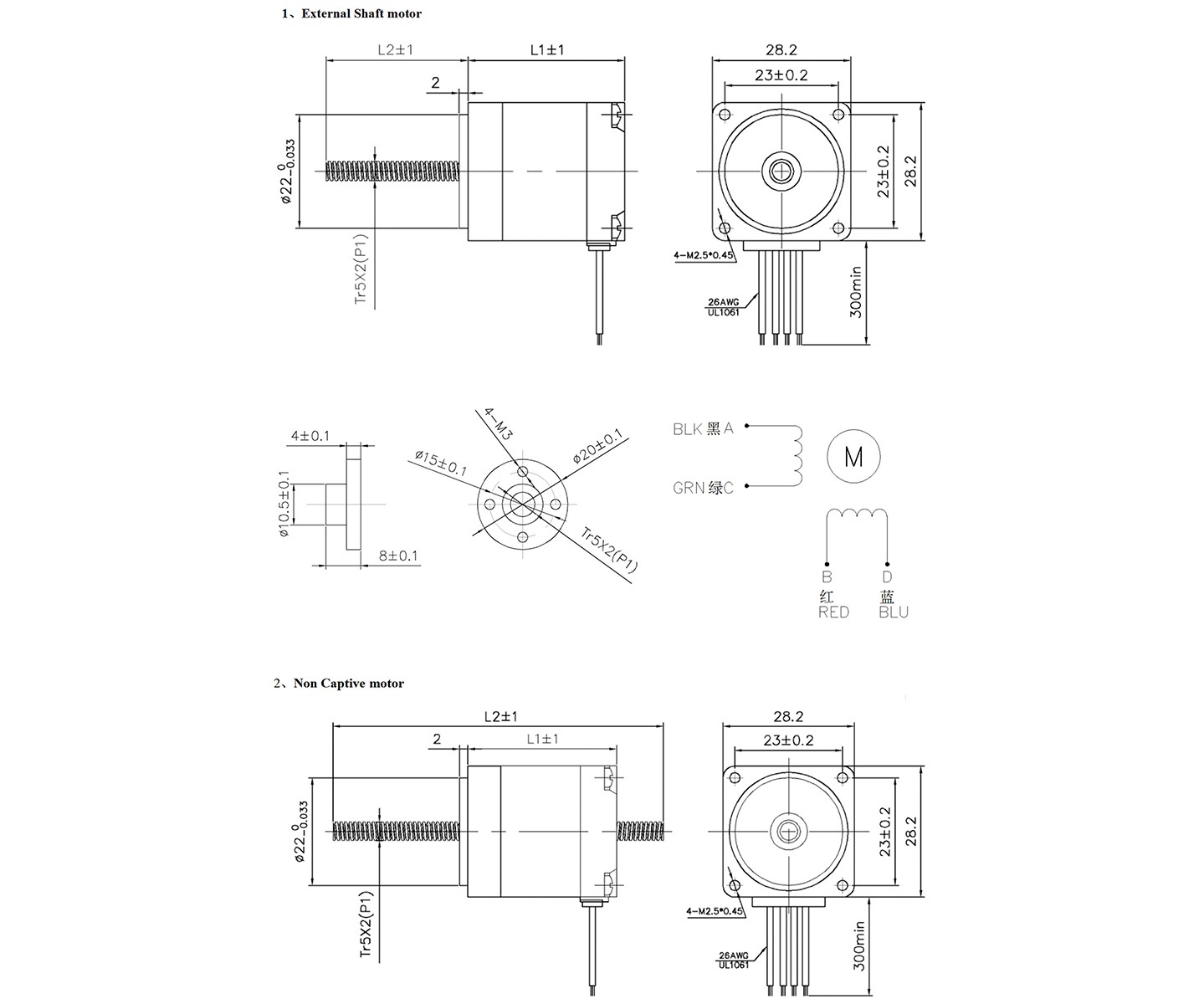

Product Dimensions: (Unit=mm)
Customized Design:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Customized Shaft Types:
